Cisco Catalyst 9130AXE Access Point w/ Stadium Antenna -N Reg Domain

VENDOR: CISCO Mfg Part#: C9130AXE-STA-N
1 3

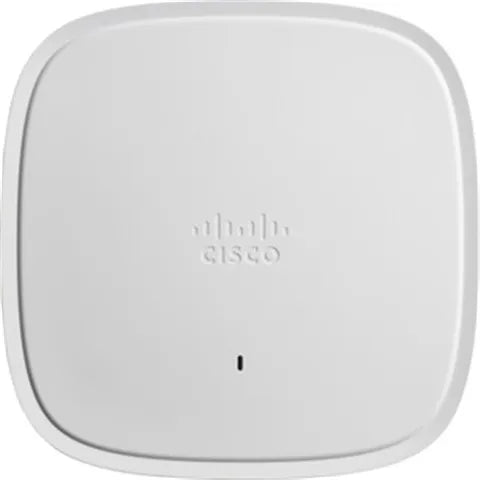

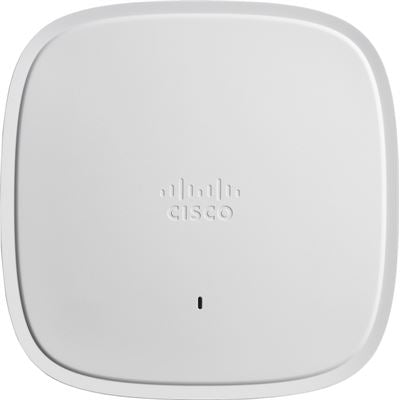

Photo is for illustration purposes only. Actual product may be different.
$1,778.85
$1,778.85
Sale Sold out
MSRP: $2,608.98
Shipping calculated at checkout.
  • 8x8 downlink MU-MIMO and 4x4 MIMO wireless performance
  • Supports IEEE 802.11a/b/g/n/ac/ax standards for wide compatibility
  • 2048 MB DRAM for improved signal processing and memory handling
  • Embedded wireless controller for simplified network architecture
  • Includes RJ-45 and USB 2.0 ports for connectivity and expansion
  • TAA compliant and includes limited lifetime hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers exceptional Wi-Fi 6 performance for high-density environments with robust MU-MIMO support.
  • Integrated stadium antenna boosts coverage and signal integrity in large venues.
  • Simplifies deployment and maintenance with its embedded wireless controller and lifetime warranty.

Product Overview

The Cisco Catalyst 9130AXE Access Point with Stadium Antenna provides 8x8 downlink MU-MIMO and 4x4 MIMO for high-density performance. It supports IEEE 802.11a/b/g/n/ac/ax standards and includes 2048 MB DRAM to manage bandwidth-intensive applications. Designed for TAA compliance and equipped with RJ-45 and USB 2.0 ports, it comes with a limited lifetime hardware warranty, ensuring long-term value in enterprise deployments.

Specifications

Product Overview
Product Type Wireless Access Point
Series Cisco Catalyst 9130AX
Model C9130AXE-STA-N
Form Factor External - With Stadium Antenna
Mounting Options Ceiling, Wall, Pole (via brackets)
Processor Quad-core ARM 64-bit A53
Memory (RAM) 2048 MB DDR4 DRAM
Flash Memory 1024 MB
Power Requirements 802.3at PoE+ or Cisco Universal PoE (UPOE)
Power Consumption Up to 31.5W
Maximum Clients per Radio 200+
Warranty Limited Lifetime Hardware Warranty

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Bands 2.4 GHz and 5 GHz concurrent dual radio operation
MU-MIMO Yes, 8x8 MU-MIMO on downlink, 4x4 uplink
OFDMA Support Yes, uplink and downlink
Spatial Streams 8 spatial streams
Internal/External Antenna External Stadium Antenna (Connectors Required)
Maximum Data Rate (5 GHz) Up to 4.8 Gbps
Maximum Data Rate (2.4 GHz) Up to 1.15 Gbps

Compliance & Origin
TAA Compliant Yes
Country of Origin China / Mexico
Certifications UL 60950-1, UL 62368-1, FCC Part 15.247, RoHS
Regulatory Domain -N

Advanced Security Features
Wi-Fi Protected Access WPA3, WPA2, WPA
802.1X Authentication Yes
Rogue AP Detection Yes
Guest Access with Captive Portal Yes
Cisco Trust Anchor Module (TAM) Yes
Hardware-anchored Secure Boot Yes
Content Filtering Via Cisco Umbrella (Cloud-delivered security platform)
Encrypted Traffic Analytics (ETA) Yes

Interfaces
Ethernet Interfaces 1 x 100/1000/2500 Multigigabit Ethernet (RJ-45)
Console Port 1 x RJ-45 Management Console Port
USB Ports 1 x USB 2.0 (Type A)
Data Transfer Rate Up to 5.38 Gbps (aggregate)

Physical & Environmental
Dimensions 10.6 x 8.1 x 2.1 in (268 x 206 x 53 mm)
Weight 2.9 lb (1.34 kg) without mounting kit
Operating Temperature 0°C to 50°C (32°F to 122°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Storage Humidity 5% to 90% (non-condensing)
Enclosure Material Plenum Rated Plastic UL 2043

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, Web GUI
Controller Compatibility Cisco Catalyst 9800 Series Wireless Controllers
Software Licensing Cisco DNA Licensing (Essential/Advantage/Premier)
Cisco CleanAir Pro Yes
Cisco Intelligent Capture Yes
Cloud Ready with Cisco Meraki Integration No (Cisco DNA Platform only)
