Cisco Catalyst 9130AXE w/Stadium Antenna, -Z Reg Domain

VENDOR: CISCO Mfg Part#: C9130AXE-STA-Z
1 3

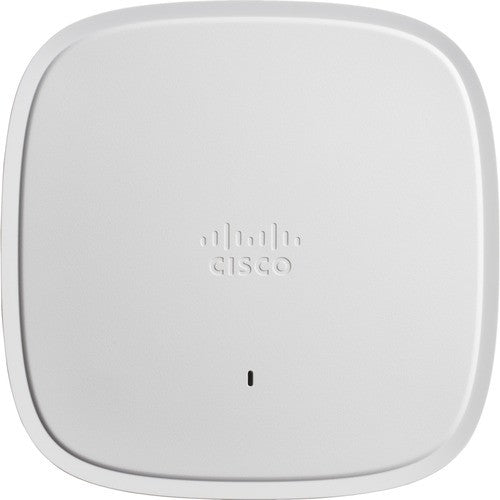

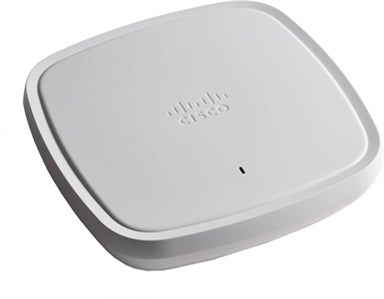

Photo is for illustration purposes only. Actual product may be different.
$1,778.85
$1,778.85
Sale Sold out
MSRP: $2,608.98
Shipping calculated at checkout.
  • Supports Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) for high-speed wireless networking
  • Integrated 4x4 MIMO uplink and 8x8 MU-MIMO downlink for optimized multi-user performance
  • 2048 MB DRAM and 1024 MB flash for enhanced memory operations
  • 1x RJ-45 Multigigabit Ethernet (100, 1000, 2500, 5000 Mbps) port for scalable connectivity
  • USB 2.0 port for peripheral connectivity and configuration
  • TAA compliant, suitable for sensitive government and enterprise deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights

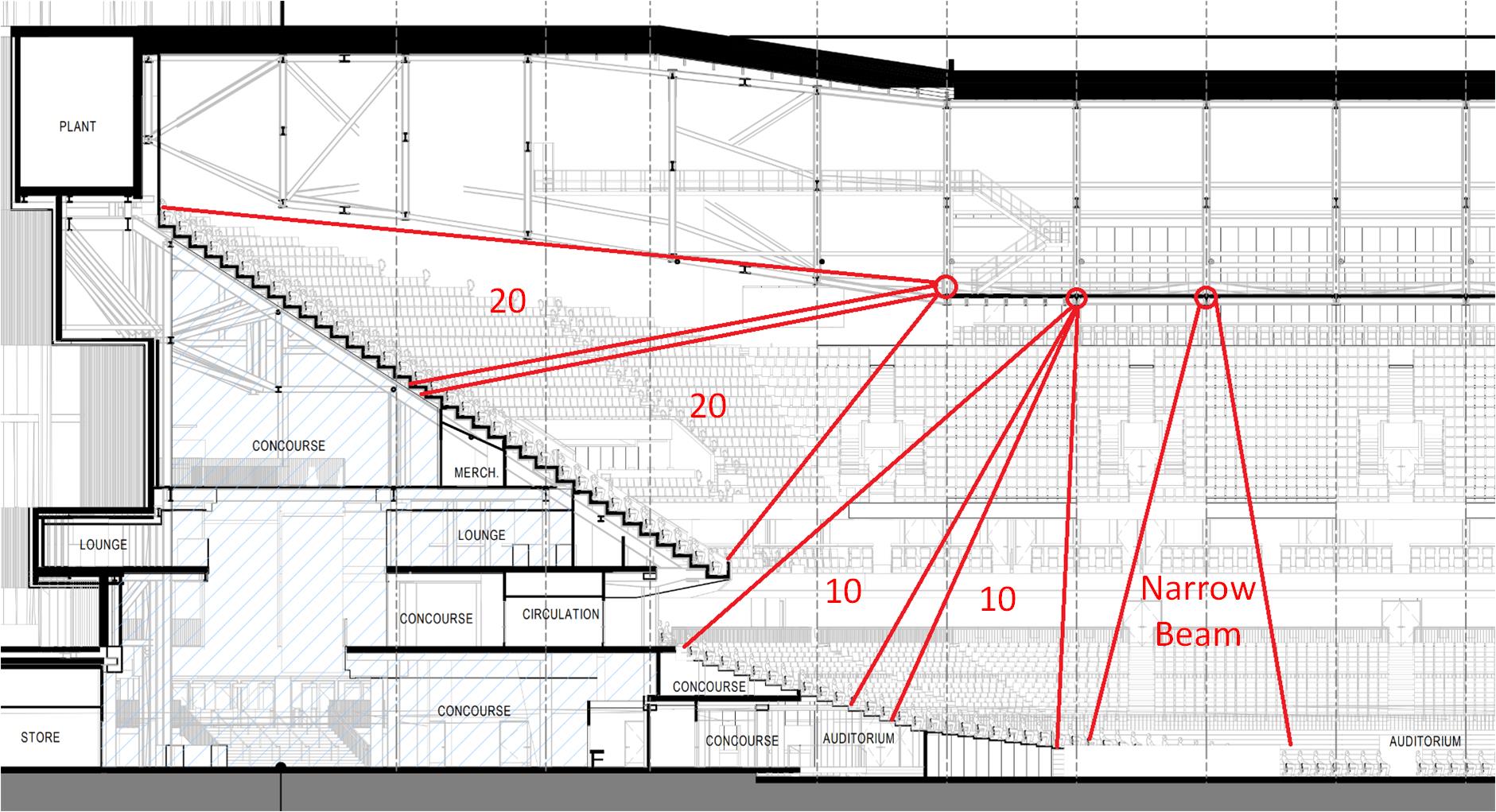

  • Engineered for high-density deployments, making it ideal for stadiums and arenas with the included stadium antenna
  • Supports next-generation Wi-Fi 6 and multigigabit speeds, ensuring network longevity and scalability
  • TAA compliance ensures meeting government procurement requirements and regulatory standards

Product Overview

The Cisco Catalyst 9130AXE with Stadium Antenna supports Wi-Fi 6 (802.11ax) and is designed for high-density environments. It features both 4x4 MIMO uplink and 8x8 MU-MIMO downlink, enhancing user capacity and performance. With 2048 MB DRAM and 1024 MB flash memory, it delivers robust performance and smooth firmware operations. Connectivity includes a multigigabit RJ-45 port (supporting up to 5 Gbps) and USB 2.0. TAA compliance ensures suitability for government applications. The integrated stadium antenna is ideal for dense deployments like arenas and large venues.

Specifications

Product Overview
Product Type Wireless Access Point
Model Cisco Catalyst 9130AXE
Form Factor Ceiling mountable, wall mountable
Deployment Indoor with external antenna (Stadium Antenna)
Processor Quad-core ARM processor
Memory (DRAM) 2048 MB
Flash Memory 1024 MB
Power Options Cisco UPOE, 802.3at PoE+
Maximum Power Consumption 31.8 W
Regulatory Domain -Z

Wireless Features
Wireless Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Bands 2.4 GHz and 5 GHz
Antenna Type External Stadium Antenna
Antenna Configuration 4x4 MIMO uplink, 8x8 MU-MIMO downlink
Max Data Rate Up to 5.38 Gbps
OFDMA Supported
MU-MIMO 4x4 uplink, 8x8 downlink
Spatial Streams 8
Beamforming Yes
BSS Coloring Yes
Target Wake Time (TWT) Yes
Dual-Band Concurrent Yes

Compliance & Origin
TAA Compliant Yes
Country of Origin CHINA / MEXICO
Safety Certifications UL 60950-1, IEC 60950-1, UL 62368-1
EMC Certifications FCC Part 15B, EN 301 489-1/-17
Environmental Compliance RoHS

Advanced Security Features
WPA3 Security Supported
Integrated Threat Detection Cisco Encrypted Traffic Analytics (ETA), Cisco TrustSec
Secure Boot Yes
Hardware-anchored Trust Yes
Identity-Based Access Control Yes

Interfaces
LAN Interface 1 x Multigigabit Ethernet (RJ-45)
Multigigabit Ethernet Speed 100M/1G/2.5G/5G
USB Port 1 x USB 2.0 Type A
Console Port 1 x RJ-45
Data Transfer Rate Up to 5 Gbps on Ethernet

Physical & Environmental
Dimensions (W x D x H) 9.05 x 9.05 x 2.6 inches (230 x 230 x 66 mm)
Weight 3.1 lbs (1.4 kg)
Operating Temperature 32° to 122°F (0° to 50°C)
Storage Temperature -22° to 158°F (-30° to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
Management Platform Cisco DNA Center, Cisco Catalyst Embedded Wireless Controller
Cisco DNA Licensing Required Yes
Cisco Smart Licensing Supported
Mobility Express Capable No
