Cisco Catalyst 9164I Access Point, Tri-Band, 4x4 MIMO, Wi-Fi 6/6E

VENDOR: CISCO Mfg Part#: CW9164I-B++
1 2

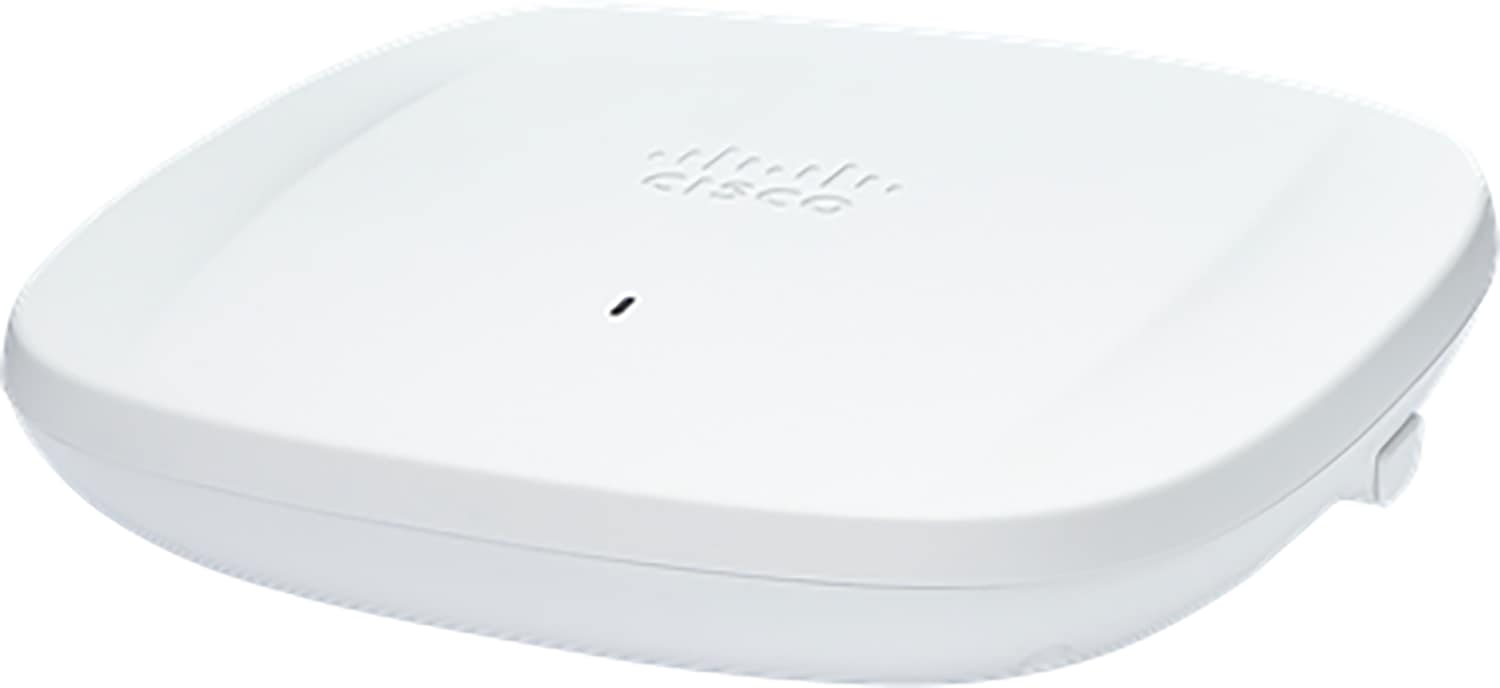

Photo is for illustration purposes only. Actual product may be different.
$1,504.08
$1,504.08
Sale Sold out
MSRP: $2,205.98
Shipping calculated at checkout.
  • Tri-band Wi-Fi 6/6E (2.4 GHz, 5 GHz, 6 GHz) with 4x4 MIMO for high-density coverage
  • Supports multigigabit Ethernet with 2.5 Gbps RJ-45 port
  • Built-in omnidirectional antenna and Bluetooth 5.1 connectivity
  • 2048 MB RAM and 1024 MB flash memory for robust performance
  • Compliant with IEEE 802.3 and 802.11a/b/g/n/ac/ax networking standards
  • USB 2.0, RJ-45 console, and DC input (54V) for versatile deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enterprise-grade tri-band Wi-Fi 6E support ensures future-ready wireless performance
  • High memory capacity (2048MB RAM, 1024MB flash) promotes reliable operations in demanding environments
  • TAA compliance and limited lifetime hardware warranty enhance regulatory and investment security

Product Overview

The Cisco Catalyst 9164I Access Point (Model CW9164I-B++) is engineered for modern enterprise networks requiring high throughput and broad device support. With tri-band operation across 2.4GHz, 5GHz, and 6GHz, it supports Wi-Fi 6 and Wi-Fi 6E (802.11ax) standards, enabling faster, more reliable connections. The device utilizes 4x4 MIMO and omnidirectional antennas to ensure consistent wireless performance.

Built for flexibility, the Catalyst 9164I includes a 2.5 Gbps multigigabit Ethernet interface, USB 2.0, and console ports. It features 2048 MB RAM and 1024 MB flash to handle advanced operations. Compliance with IEEE 802.3af/at/bt and 802.11 standards supports integration across enterprise networks. TAA-compliant and backed by a limited lifetime hardware warranty, it's an ideal solution for performance-driven organizations.

With built-in Bluetooth 5.1 and robust DC power input support, this AP is well-suited for large campuses, healthcare environments, and smart commercial deployments.

Specifications

Product Overview
Product Type Access Point
Model Cisco Catalyst 9164I
Form Factor Ceiling/Wall Mountable
Weight 2.7 lbs (1.22 kg)
Power / Device Type DC Adapters
Power / Voltage Required 54V
Service & Support Type Limited lifetime hardware warranty
RAM / Total Installed Size 2048 MB
Hard Drive 1024 MB Flash
Radio Count Tri
Networking Type Ethernet

Wireless Features
Frequency Band 2.4 GHz; 5 GHz; 6 GHz
Wi-Fi Standard Wi-Fi 6 (802.11ax); Wi-Fi 6E
MIMO Type 4x4 MIMO
Antenna Type Omni-directional
Bluetooth Version Bluetooth 5.1
Peak PHY Data Rates Up to 5.4 Gbps combined
Wireless Security WPA3, WPA2, WPA
Modulation OFDMA and MU-MIMO

Compliance & Origin
Networking Compliant Standards IEEE 802.3ab, IEEE 802.3af/at/bt, IEEE 802.11a/b/g/n/ac/ax, IEEE 802.11h, IEEE 802.11d
Country of Origin Mexico
TAA Compliance Yes
Certifications UL, cUL, CB, FCC, ICES, CE Mark, RCM, VCCI, BSMI, NCC

Advanced Security Features
Network Security WPA3, WPA2, 802.1X support, rogue detection
Content Filtering Available via Cisco Umbrella Integration
IDS/IPS Support Supported via Meraki and Cisco DNA
Zero Trust Security Model Supported via integration with Cisco ISE

Interfaces
Ethernet Ports 1x 100M/1G/2.5G Multigigabit Ethernet (RJ-45)
USB Ports 1x USB 2.0 (4.5W output)
Console Port 1x RJ-45 Console Port
Networking / Ports Qty 3
Data Transfer Rate 2.5 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Interfaces 1x 100M/1000M/2.5G RJ-45; 1x USB 2.0; 1x Console RJ-45

Physical & Environmental
Width 9.5 Inch
Depth 9.5 Inch
Height 2.2 Inch
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Cloud Management Platform Cisco Meraki Dashboard / Cisco DNA Center (based on deployment)
Management Interface Web UI, CLI, SNMP, Cisco DNA Center
License Required Yes – Cisco DNA or Meraki Subscription (varies by deployment)
