Cisco Catalyst 9200CX 12-Port Data Only Switch, Advantage License

VENDOR: CISCO Mfg Part#: C9200CX-12T-CX-A
1 3

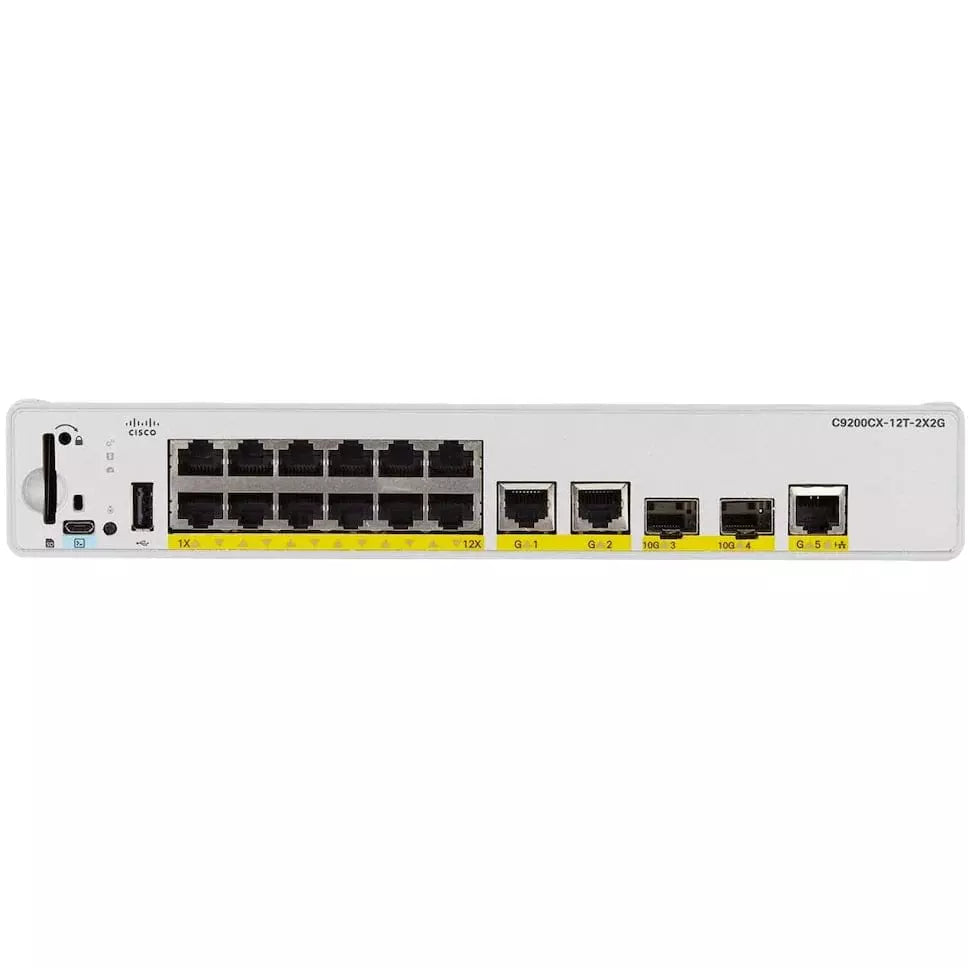

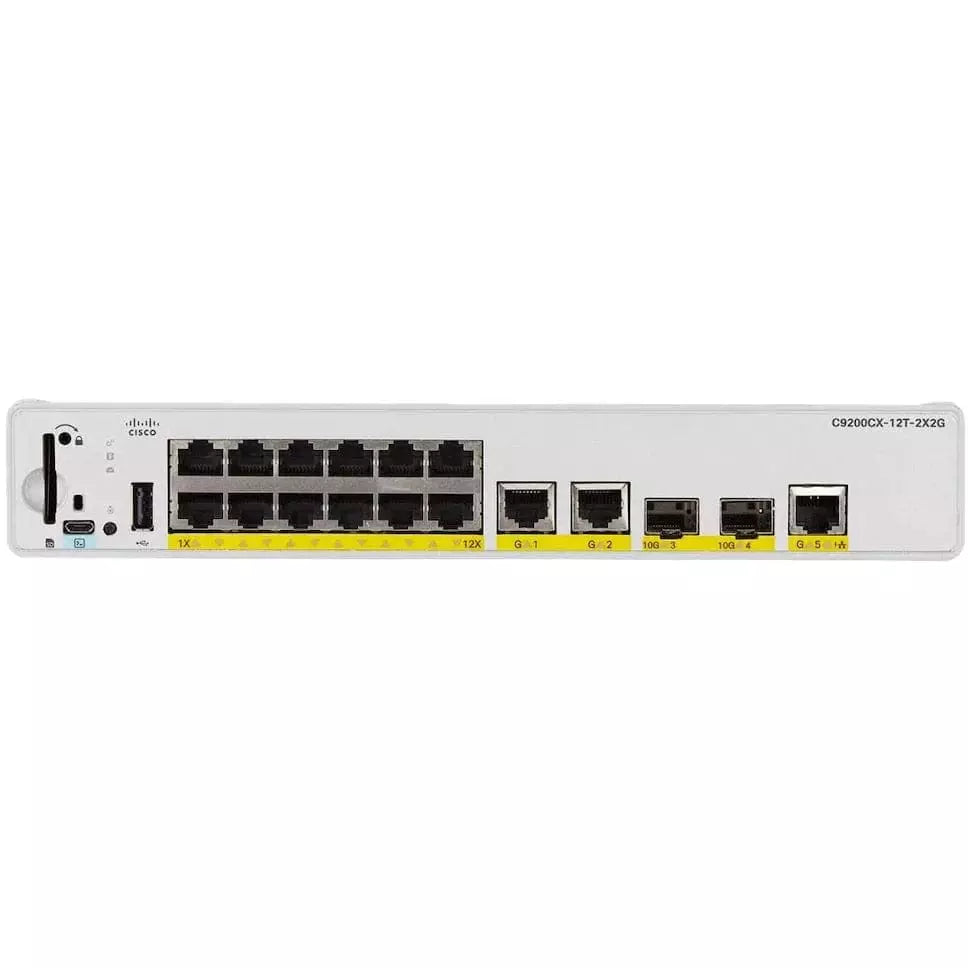

Photo is for illustration purposes only. Actual product may be different.
$660.38
$660.38
Sale Sold out
MSRP: $1,992.92
Shipping calculated at checkout.
  • 12 data-only Ethernet ports for streamlined wired connectivity
  • Includes DNA Advantage licensing for extended software features
  • TAA-compliant for government procurement compliance
  • Designed and manufactured in Mexico
  • Compact form factor suitable for branch and micro-branch environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Built-in DNA Advantage license supports next-generation automation, security, and analytics.
  • TAA compliance ensures suitability for federal and public-sector environments.
  • Compact 12-port design is ideal for space-constrained deployments without compromising performance.

Product Overview

The Cisco Catalyst 9200CX 12-Port Data Only Switch with Advantage License is a compact, enterprise-grade solution designed for branch deployments and scalable edge environments. With 12 data-only ports and support for DNA Advantage licensing, it enables secure, automated, and policy-driven network management. TAA-compliant and manufactured in Mexico, it meets government and enterprise procurement standards. This switch offers simplified configuration and integration into Cisco’s intent-based networking framework.

Specifications

Product Overview
Product Type Managed Switch
Series Cisco Catalyst 9200CX
Model C9200CX-12T-CX-A
Port Configuration 12 x 10/100/1000 Ethernet data ports
Switching Capacity 56 Gbps
Forwarding Rate 83.33 Mpps
Form Factor Desktop, Wall Mountable, or DIN Rail Mountable
Weight 2.89 lbs (1.31 kg)
Power Supply External power adapter
Built-in Power Supply No
Max Power Consumption 21W
MTBF 1,050,000 hours (approx)

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CE, FCC Part 15 Class A, RoHS, REACH
Green Compliance Yes

Advanced Security Features
MACsec Encryption Yes (128-bit)
Secure Boot and Image Signing Yes
Trust Anchor Module Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Private VLAN Yes
802.1X Authentication Yes
ACLs Yes, IPv4 and IPv6
Storm Control Yes

Interfaces
Total Ethernet Ports 12
Port Type 10/100/1000 Ethernet
Uplink Ports 2 x 1G SFP (Combo)
Console Ports 1 x RJ-45 Console, 1 x USB Mini-B Console
USB Ports 1 x USB Type A
Data Transfer Rate 10/100/1000 Mbps
Packet Buffer Size 4 MB
MAC Address Table Size 16,000 entries
VLAN Support Yes (4K VLAN IDs supported)
Staking Support StackWise®-160 supported via optional modules

Physical & Environmental
Dimensions (W x D x H) 10.58 x 9.45 x 1.73 in (26.89 x 24 x 4.4 cm)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 95% RH (non-condensing)
Acoustic Noise Fanless unit (0 dBA)

Cloud Management & Licensing
Cisco DNA License Tier Advantage
License Duration 3, 5, or 7 years (varies by subscription)
Management Interface Cisco DNA Center, CLI, Web UI, SNMP
Zero-Touch Provisioning Yes
Cisco StackPower Support Yes (requires optional module)
Software Updates Included with Cisco Smart Licensing
Application Visibility Cisco NetFlow, NBAR2 supported
