Cisco Catalyst 9200CX 12-port PoE+ Switch, 240W, Essential License

VENDOR: CISCO Mfg Part#: C9200CX-12P-CX-E
  • Catalyst 9200CX 12-port PoE+, 240W, CX, Essential
1 1

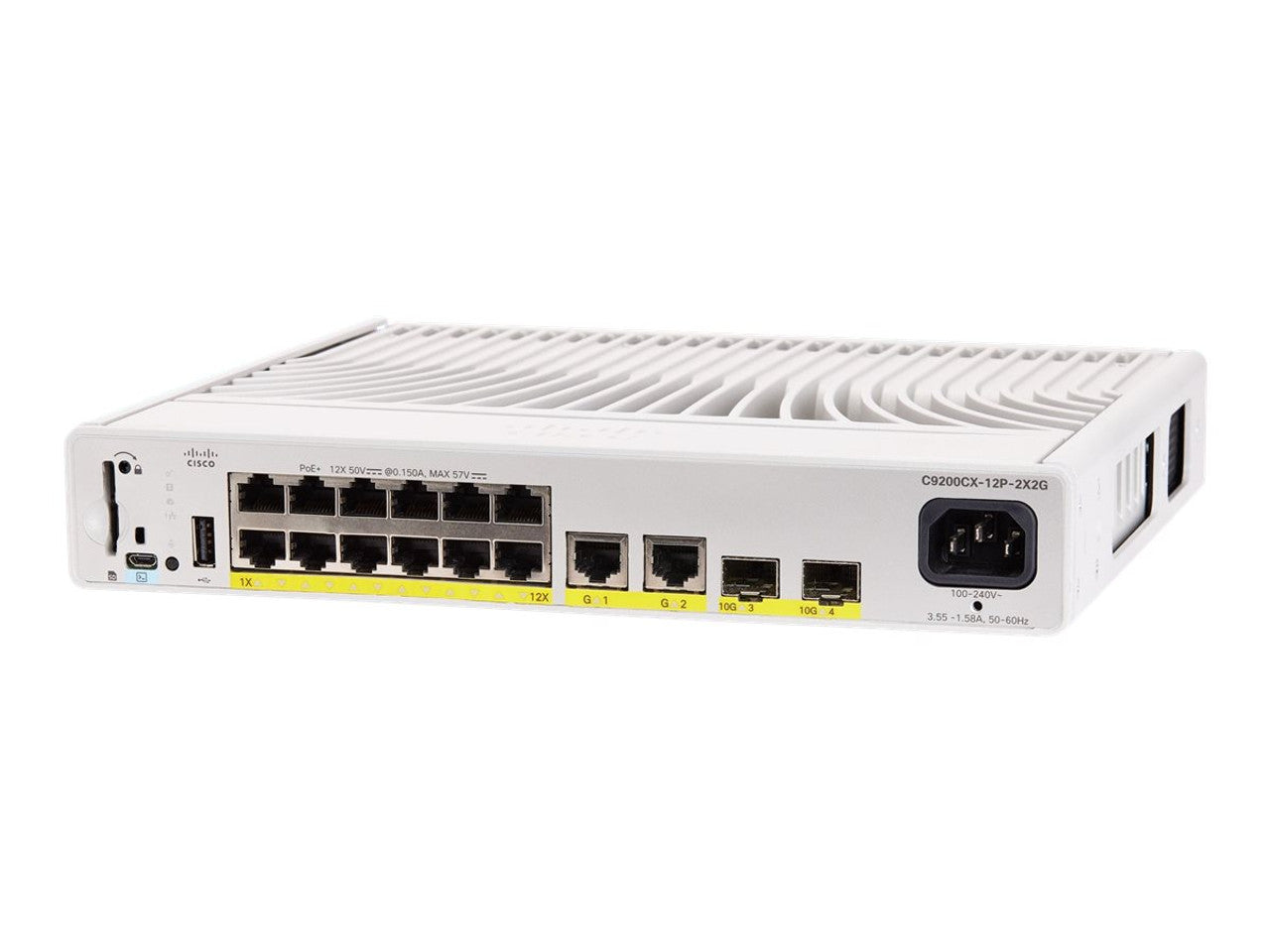

Photo is for illustration purposes only. Actual product may be different.
$887.17
$887.17
Sale Sold out
MSRP: $2,677.32
Shipping calculated at checkout.
  • 12-port PoE+ support with 240W power budget
  • Essential license included for enterprise-grade networking features
  • TAA compliant for use in government and regulated sectors
  • Manufactured in Mexico, supporting trade agreement requirements

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers flexible PoE+ capabilities to power various network devices without additional hardware
  • Essential license tier ensures critical management and security features are available out of the box
  • TAA compliance positions this switch for use in federally-regulated installations

Product Overview

The Cisco Catalyst 9200CX 12-port PoE+ switch (C9200CX-12P-CX-E) is a compact Layer 2/3 switch offering 12 PoE+ ports with a 240W power budget, designed for space-sensitive environments. Featuring the Essential software license, it delivers key enterprise capabilities for secure and manageable networks. TAA compliance makes it suitable for government and regulated industries. Manufactured in Mexico, this switch is engineered for consistent performance and efficient device deployment in branch and edge networks.

Specifications

Product Overview
Product Type Managed Layer 2/3 Ethernet Switch
Model Number C9200CX-12P-CX-E
Series Cisco Catalyst 9200CX Series
Form Factor Compact (Desktop or Wall-Mountable)
Weight 2.63 kg (5.8 lbs)
Power Supply Internal AC Power Supply
PoE Power Budget 240W
Switching Capacity 56 Gbps
Forwarding Rate 83.33 Mpps
Total VLANs 1023
MAC Address Table Size 16,000 entries
Mean Time Between Failures (MTBF) 1,122,860 hours

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CSA, CE, FCC Part 15 Class A, RoHS, WEEE, ENERGY STAR

Advanced Security Features
MACsec Encryption Yes (802.1AE on uplinks)
TrustSec Supported
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
DHCP Snooping Yes
IP Source Guard Yes
Dynamic ARP Inspection (DAI) Yes
Control Plane Policing Yes

Interfaces
Total Ethernet Ports 12
PoE+ Ports 12 x 10/100/1000 Mbps
Uplink Ports 2 x 1G SFP + 2 x 10G SFP+
Console Ports 1 x USB Type B Console Port, 1 x RJ-45 Console Port
USB Ports 1 x USB 2.0 Type A
Max PoE per Port 30W (IEEE 802.3at)
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

Physical & Environmental
Dimensions (W x D x H) 10.59 x 9.41 x 1.73 in (26.9 x 23.9 x 4.4 cm)
Mounting Type Desktop, Wall-Mountable, Optional DIN Rail Mount
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Acoustic Noise Fanless (0 dB)
Cooling Passive Cooling (Fanless)
Heat Dissipation 1154 BTU/hr

Cloud Management & Licensing
Management Interface Web UI, CLI, SNMP, Cisco DNA Center
License Level Network Essentials
Software Image IOS XE
Stacking Support Via Cisco StackPower Cable
Remote Management Supported via Cisco DNA Center
Cloud Monitoring Supported (Cisco DNA)
