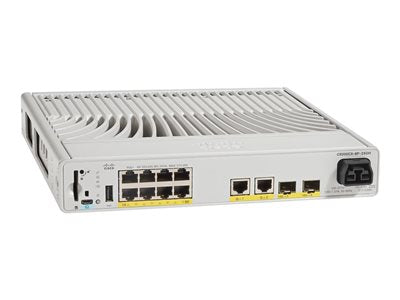

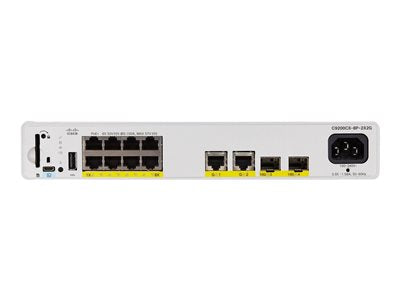

Cisco Catalyst 9200CX 8-Port PoE+ Compact Switch, EDU Edition

VENDOR: CISCO Mfg Part#: C9200CX-8P-EDU
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,618.51
$1,618.51
Sale Sold out
MSRP: $2,373.81
Shipping calculated at checkout.
  • 8 x 10/100/1000 PoE+ ports with 240W PoE budget
  • 2 x 1000Base-T + 2 x 10G SFP+ uplink ports
  • Layer 3 managed switch with 60 Gbps switching capacity and 44.64 Mpps forwarding rate
  • Supports SNMP, CLI, NETCONF, RESTCONF, and YANG protocols for flexible management
  • MACsec encryption and Cisco UADP 2.0 for secure and trustworthy switching
  • IEEE 802.3at, 802.1x authentication, jumbo frame support (up to 9198 bytes)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Purpose-built for educational institutions with K-12 pricing and compact, silent operation
  • High-performance switching with Layer 3 routing, extensive scale, and robust PoE+ power delivery
  • Advanced security and manageability features simplify deployment and safeguard network operations

Product Overview

The Cisco Catalyst 9200CX 8-Port PoE+ Compact Switch, part of the trusted Catalyst 9000 series, delivers enterprise-grade switching performance tailored for education environments. This 1U rack-mountable and fanless unit supports 8 Power over Ethernet Plus (PoE+) ports along with two 1GbE and two 10GbE SFP+ uplink ports—ideal for high-performance, low-noise deployments in classrooms or administrative areas. It provides a PoE budget of 240W, enabling reliable power delivery to IP cameras, access points, and other PoE-enabled devices.

Powered by Cisco's IOS XE 17.9 Universal software, the switch supports Layer 3 routing protocols like OSPF, EIGRP, RIPng, and more. Advanced management tools are supported through interfaces such as SNMP, CLI, and RESTCONF, offering flexibility for IT staff. With a switching capacity of 60 Gbps, a forwarding rate of 44.64 Mpps, and a MAC address table size of 32,000 entries, this model is designed for scalability and resilience. Extensive IEEE standards compliance and physical indicators like power status LEDs ease integration and maintenance. Cisco UADP 2.0 ASIC, MACsec encryption, and robust ACL/QoS capabilities ensure secure, segmented, and high-performing campus networks.

Optimized for K-12 educational applications, the unit includes a limited lifetime warranty and offers superior investment protection. With RFID tagging and expanded support for VLANs, virtual networks, and flow entries, it's engineered to accommodate future networking demands in institutional environments.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Form Factor Compact 1U Rack-mountable
Dimensions (W x D x H) 10.6 in x 9.6 in x 1.7 in
Weight 6.59 lbs
Power Requirements Internal power supply (PoE budget up to 240 W)
Operating System Cisco IOS XE 17.9 Universal
Built-in Devices RFID tag
Status Indicators Power
Memory (RAM) 4 GB
Flash Memory 8 GB

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Compliance Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, EN 61000, EN 60950, FCC Part 15 Class A, RoHS, others
Certifications UL, FCC, ICES, VCCI, BSMI, CE, KN, CCC, TCVN

Advanced Security Features
Firewall Capabilities
Encryption Support MACsec (802.1AE) with 256-bit AES
Access Control Access Control Lists (ACLs), IEEE 802.1x authentication
Quality of Service (QoS) Supported (with advanced classification and policing)
Secure Segmentation SGT/DGT policies, IP SGT binding scale: 8000

Interfaces
10/100/1000 Ports (PoE+) 8 x RJ-45 PoE+
1G Uplink Ports 2 x 1000Base-T RJ-45
10G Uplink Ports 2 x 10GBase-X SFP+
USB Interface 1 x USB 2.0
Console Port 1 x Micro-USB
Expansion Slots 1 x SD Memory Card
Switching Capacity 60 Gbps
Forwarding Rate 44.64 Mpps
Packet Buffer Size 6 MB
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes

Physical & Environmental
Minimum Operating Temperature 23 °F
Maximum Operating Temperature 104 °F
Operating Humidity 5 - 90% (non-condensing)
Minimum Storage Temperature -40 °F
Maximum Storage Temperature 158 °F
Storage Humidity 5 - 90% (non-condensing)
Cooling Fanless

Cloud Management & Licensing
Management Interfaces SNMP (v1, v2c, v3), CLI, NETCONF, RESTCONF, YANG, RMON, MIB
Cloud Features Cisco DNA Center support, Plug and Play (PnP)
Licensing Model Smart licensing (optional DNA licenses)
Included Software Cisco IOS XE 17.9 Universal
