Cisco Catalyst 9200CX 8-Port PoE+ Switch, 240W, Advantage License

VENDOR: CISCO Mfg Part#: C9200CX-8P-CX-A
1 1

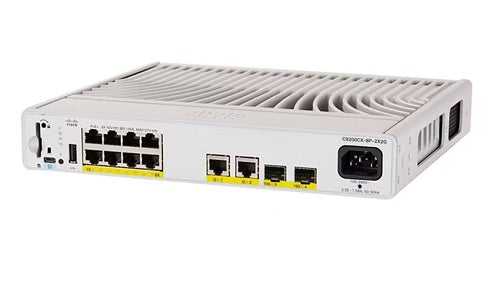

Photo is for illustration purposes only. Actual product may be different.
$786.60
$786.60
Sale Sold out
MSRP: $2,373.81
Shipping calculated at checkout.
  • 8-port Power over Ethernet Plus (PoE+) support for connected devices
  • 240W total PoE power budget
  • Includes Cisco's Advantage license for advanced features
  • Compact form factor suitable for constrained spaces
  • TAA compliant (Trade Agreements Act)
  • Country of Origin: Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 240W PoE+ across 8 ports—ideal for powering IP phones and access points without extra adapters.
  • Advantage license ensures access to advanced security and automation features, supporting scalable network operations.
  • TAA compliance and Mexican origin make it ideal for public sector and government purchasing requirements.

Product Overview

The Cisco Catalyst 9200CX 8-Port PoE+ Switch (C9200CX-8P-CX-A) is a compact, high-performance switch offering 8 PoE+ ports with 240W total power budget, making it ideal for supporting IP devices in tight spaces. It includes Advantage licensing for enhanced Layer 2 security and manageability. TAA compliant and manufactured in Mexico, it suits secure public sector deployments. This unit integrates into the Catalyst 9000 portfolio for high availability and scalable network operations, making it a reliable choice for enterprise access environments.

Specifications

Product Overview
Product Type Managed Ethernet Switch
Model Catalyst 9200CX 8P PoE+, 240W, CX, Advantage
Form Factor Compact (desktop or wall-mountable)
Power Over Ethernet (PoE) Yes, PoE+
PoE Power Budget 240W
Processor Multicore CPU (specific model not disclosed)
Switching Capacity 56 Gbps
Forwarding Rate 83.33 Mpps
MTBF 645,233 hours
Weight 1.45 kg (3.2 lbs)
Power Supply Internal, AC power supply included

Wireless Features
Integrated Wireless

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CE, FCC Part 15 Class A, ICES, VCCI, C-Tick
RoHS Compliant Yes

Advanced Security Features
Access Control 802.1X, MAB, WebAuth
MACsec Encryption Yes (IEEE 802.1AE)
Secure Boot Yes
Trustworthy Solutions Cisco Trust Anchor, digitally signed images
IP Routing Yes (Static, RIP, EIGRP, OSPF, EIGRP stub, PBR)
DHCP Snooping Yes
Dynamic ARP Inspection (DAI) Yes

Interfaces
Total Ports 10
10/100/1000 PoE+ Ports 8
Uplink Ports 2 x 1G SFP
Ethernet Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Console Port Yes (RJ-45)
Data Rate 10/100/1000 Mbps on copper ports; 1 Gbps on SFP

Physical & Environmental
Dimensions (W x D x H) 10.21 x 9.45 x 1.73 in (259.4 x 240 x 44 mm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operating) 10% to 95% non-condensing
Heat Dissipation 525 BTU/hr
Cooling Type Fanless
Rack-Mountable No (desktop/wall-mountable only)

Cloud Management & Licensing
License Type Cisco DNA Advantage
License Duration 3, 5, or 7 years (varies by purchase)
Management Options Cisco DNA Center, CLI, SNMP, Web UI
Cloud Monitoring Enabled through Cisco DNA Center
Zero-Touch Provisioning (ZTP) Yes
