Cisco Catalyst 9200CX 8-Port PoE+ Switch, 240W, CX, Essential

VENDOR: CISCO Mfg Part#: C9200CX-8P-CX-E
1 3

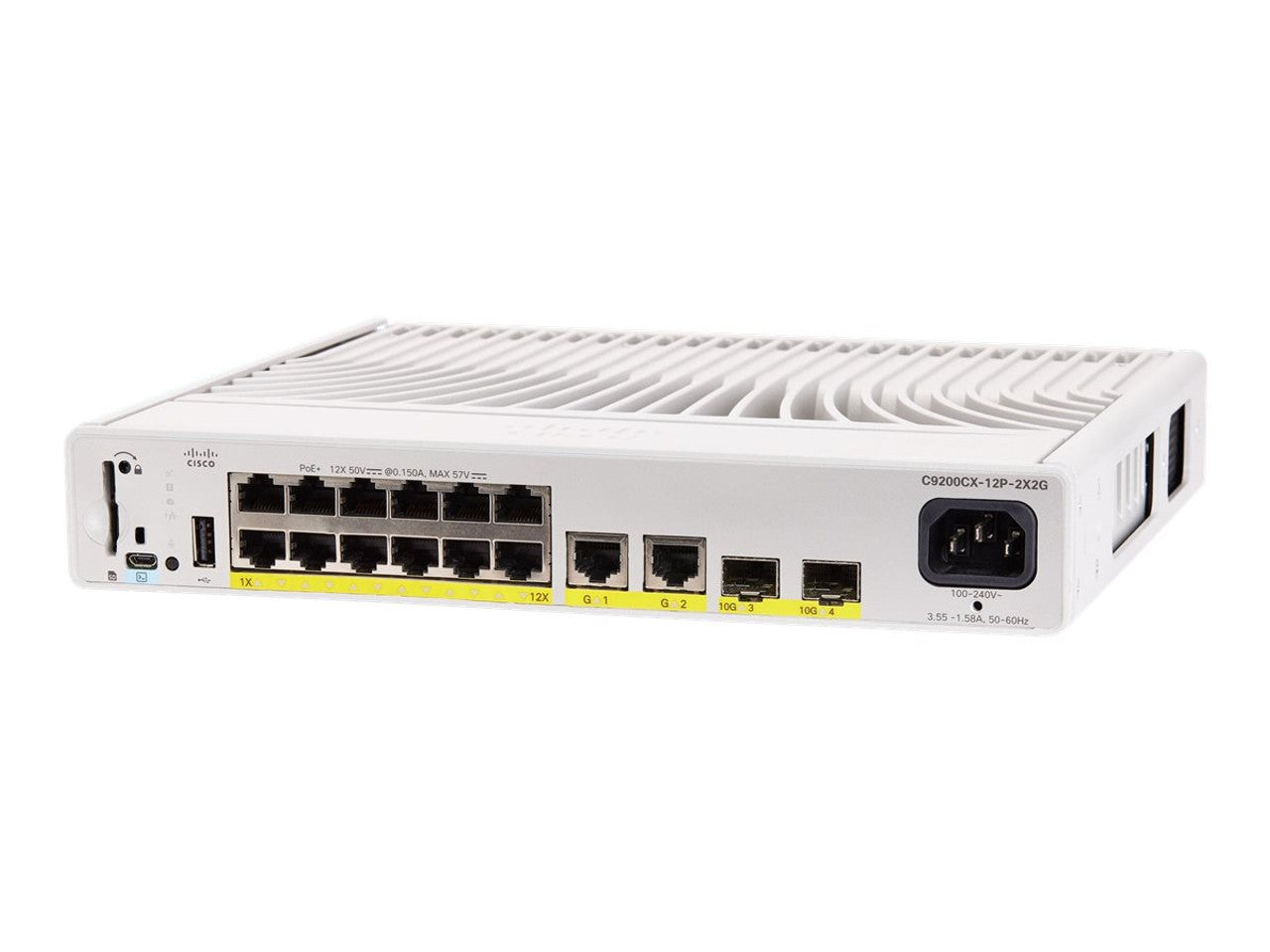

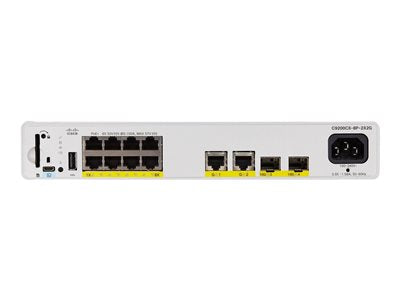

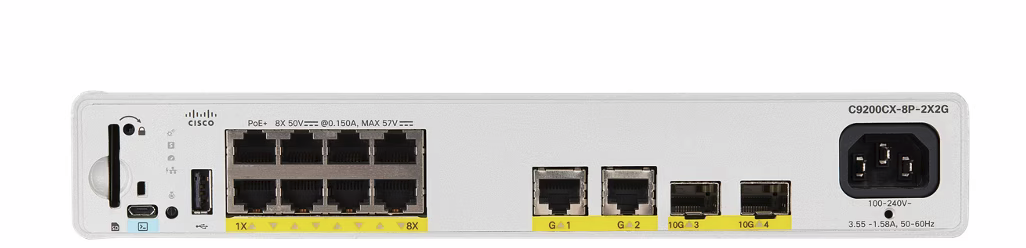

Photo is for illustration purposes only. Actual product may be different.
$786.60
$786.60
Sale Sold out
MSRP: $2,373.81
Shipping calculated at checkout.
  • 8 PoE+ ports supporting power delivery up to 240W
  • Fully TAA compliant, suitable for government applications
  • Compact design suitable for tight deployment spaces
  • Cisco Catalyst CX Series with Essential licensing features
  • Country of origin: Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for teams needing to power multiple devices via PoE+ in limited space using a single device.
  • TAA-compliant design ensures eligibility for federal and government-accredited projects.
  • Cisco's proven Catalyst hardware lineage guarantees quality and performance in critical network roles.

Product Overview

The Cisco Catalyst 9200CX 8-Port PoE+ Switch (C9200CX-8P-CX-E) delivers compact, high-efficiency networking with 8 PoE+ ports and a 240W power budget. Built with TAA compliance for secure government deployments and manufactured in Mexico, it offers dependable Layer 2/3 access performance. Its Essential CX licensing ensures streamlined network management and installation flexibility, making it an excellent choice for branches or constrained spaces needing enterprise-grade connectivity.

Specifications

Product Overview
Product Type Managed Switch
Series Cisco Catalyst 9200CX
Model C9200CX-8P-CX-E
Form Factor Compact desktop or wall-mountable
Rack Mountable Optional via mounting kit
Switching Capacity 56 Gbps
Forwarding Rate 83.33 Mpps
PoE Budget 240W
Total System Ports 8 x 10/100/1000 PoE+ ports, 2 x SFP uplink ports
Flash Memory 4 GB
DRAM 2 GB
MTBF 728,810 hours

Wireless Features
Wi-Fi Support

Compliance & Origin
TAA Compliance Yes
Country of Origin Mexico
Certifications UL/cUL, CE, FCC Class A, RoHS
Safety Standards UL 60950-1, IEC 60950-1
Emissions EN 55032 Class A, CISPR 32 Class A

Advanced Security Features
MACsec Encryption Supported (IEEE 802.1AE on uplinks)
Dynamic ARP Inspection Yes
DHCP Snooping Yes
IP Source Guard Yes
Access Control Lists (ACLs) IPv4 and IPv6 ACLs supported
802.1X Authentication Supported
Secure Boot and Trust Anchor Yes
Control Plane Policing (CoPP) Yes
Cisco TrustSec Compatibility Yes

Interfaces
Ethernet Ports 8 x 10/100/1000BASE-T PoE+
Uplink Interfaces 2 x 1G SFP
PoE Standard IEEE 802.3at (PoE+)
Console Ports 1 x USB mini-B, 1 x RJ-45
USB Ports 1 x USB Type-A for storage/console
Auto-Negotiation Supported
Auto MDI/MDI-X Supported

Physical & Environmental
Dimensions (W x D x H) 10.56 x 9.38 x 1.73 in (268.3 x 238.2 x 43.9 mm)
Weight 5.51 lbs (2.5 kg)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Noise Level Fanless (silent operation)
Cooling Passive
Power Supply Internal fixed power supply

Cloud Management & Licensing
Licensing Model Cisco DNA Essentials (subscription-based)
Management Interface Cisco DNA Center, CLI, Web UI, SNMP
Zero-Touch Provisioning Supported
Device Sensor and Telemetry Supported
Stacking Support Cisco StackPower and StackWise Virtual (via software)
