| Network Device Type | Switch |
| Model | C9200L-24P-4G-E |
| Form Factor | 1RU |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Status Indicators | LED indicators |
| RAM / Total Installed Size | 2 GB |
| Flash Memory / Installed Size | 4 GB |
| Networking Compliant Standards | IEEE 802.1s, IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at |
| Media Layer Supported | Layer 2 and Layer 3 |
| Power / Device Type | Power Supply |
| Uplink Port | 4x1G uplink |
| Power / Provided (W) | 600 Watt |
| Power / Voltage Required | 100 to 240 VAC |
| MTBF | 392210 hours |
| Features | Cisco Software-Defined Access (SD-Access) Plug and Play (PnP) enabled Cisco IOS XE Cloud management ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries. |

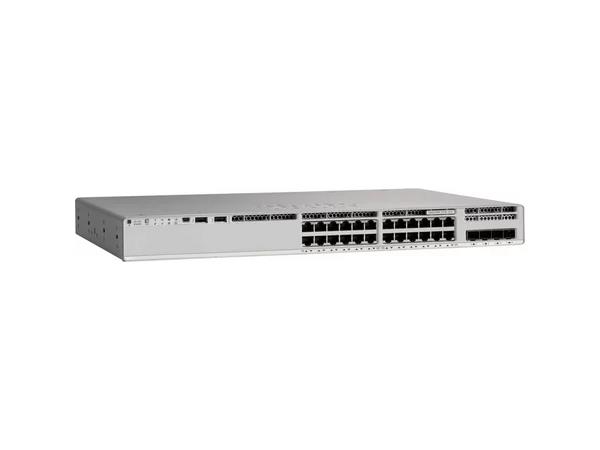

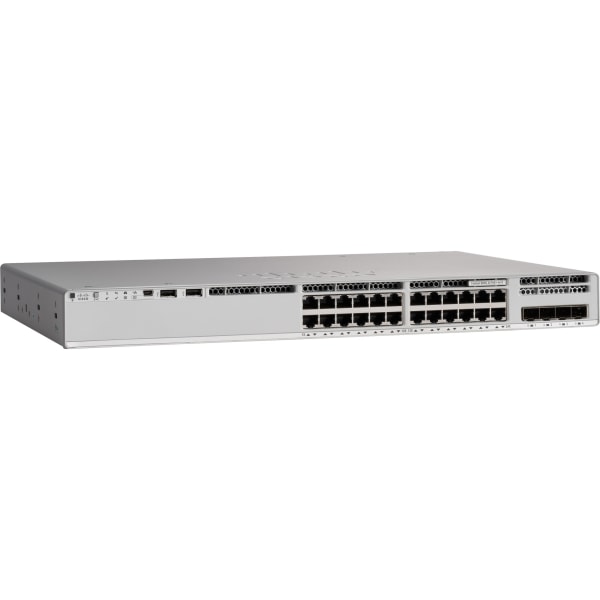

Cisco Catalyst 9200L 24-Port PoE+ Switch with 4x1G Uplinks
Photo is for illustration purposes only. Actual product may be different.
Regular price
$3,248.25
Regular price
Sale price
$3,248.25
Unit price
per
MSRP: $3,344.90
Shipping calculated at checkout.
Couldn't load pickup availability
- 24-port PoE+ with 4 x 1G uplink interfaces
- Supports Layer 2 and Layer 3 switching with RIPv1/v2, RIPng, and OSPF
- 16000-entry MAC address table and Jumbo Frame support up to 9198 bytes
- Advanced remote management via SNMP, RMON, IPv4/IPv6
- AES encryption and IEEE 802.1x for secure access control
- 2 GB RAM and 4 GB flash memory for reliable performance
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers enterprise-class performance with 24 PoE+ ports and 4 dedicated 1G uplinks supporting high-density device environments
- Supports dynamic routing and advanced management protocols for scalable and secure network infrastructure
- Backed by an Enhanced Limited Lifetime Warranty and a high MTBF of over 392,000 hours for long-term reliability
Product Overview
The Cisco Catalyst 9200L (C9200L-24P-4G-E) is a PoE+-enabled managed switch designed for enterprise-grade networking. It provides 24 data ports with PoE+ support alongside 4 dedicated 1G uplinks, ideal for connecting a wide array of network devices. The unit supports Layer 2/3 switching, 16000 MAC addresses, and advanced routing protocols such as OSPF and RIP variants, enabling dynamic routing in complex networks. Remote management is handled via SNMP, RMON, IPv4, and IPv6, with encryption through AES for added security. With a power-efficient design, compact 1U form factor, and MTBF of over 392,000 hours, this switch is built for both performance and reliability in demanding environments.
Specifications
Primary Information
UNSPSC Code
| UNSPSC Code | 43222612 |
Interfaces / Ports
| Interfaces | 24-port PoE+ 4x1G uplink, Ethernet management port, Management console port |
Service&Support
| Service & Support Type | Enhanced Limited Lifetime Warranty |
Special Feature
| COO | MEXICO |
| TAA compliance | Yes |
| Min Operating Temperature | -5 degree celsius |
| Max Operating Temperature | 45 degree celsius (1500m); 40 degree celsius (3000m) |
| Min Storage Temperature | -40 degree celsius |
| Max Storage Temperature | 70 degree celsius |
Network
| Power Over Ethernet (PoE) Support | Yes |
| PoE Power Consumption | 370W |
| MAC Address Table Size | 16000 |
| Jumbo Frame Support | 9198 bytes |
| Remote Management Protocol | DHCP; Syslog; RMON; SNMP |
| Routing Protocol | OSPF, EIGRP, ISIS, RIP |
| Encryption Algorithm | AES |
| Interfaces | 24-port PoE+ 4x1G uplink, Ethernet management port, Management console port |
Dimensions&Miscellaneous
| Width | 17.5 Inch |
| Depth | 11.3 Inch |
| Height | 1.73 Inch |
| Weight | 4.71 Kg |
