Cisco Catalyst 9200L 48-Port Gigabit Switch C9200L-48T-4G-E

VENDOR: CISCO Mfg Part#: C9200L-48T-4G-E UPC#: 889728170147
  • The Cisco Catalyst 9200L C9200L-48T-4G-E is a high-performance 48-port Layer 3 managed switch with 4 Gigabit fixed uplinks, built for secure and scalable business networking. With robust features including a 16000 MAC address table, advanced routing support, Layer 2/3 capabilities, and enhanced lifetime warranty, this switch delivers enterprise-grade performance in a compact form factor.
1 1

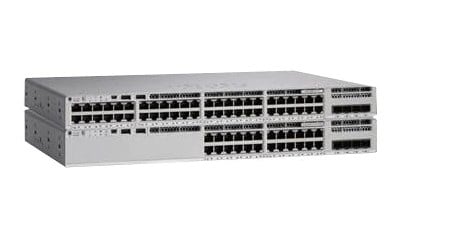

Photo is for illustration purposes only. Actual product may be different.
$3,802.47
$3,802.47
Sale Sold out
MSRP: $4,003.52
Shipping calculated at checkout.
  • 48 fixed data ports with 4 x 1G uplinks for scalable connectivity
  • Supports dynamic routing protocols: RIP, OSPF, IS-IS
  • Managed Layer 2 and Layer 3 capabilities for enterprise networking
  • 2 GB RAM and 4 GB flash memory for reliable performance
  • Remote management via SNMP, Syslog, DHCP
  • Compliant with 802.1w, 802.1s, 802.1p and supports jumbo frames (9198 bytes)
View full details

Key Benefits

Eye-Insights
  • Provides advanced Layer 2/3 switching with enterprise-grade routing and management protocols
  • Enhanced Limited Lifetime Warranty ensures long-term protection and cost efficiency
  • Optimized for mission-critical environments with high MTBF of over 500,000 hours and TAA compliance

Product Overview

The Cisco Catalyst 9200L-48T-4G-E switch delivers 48 Gigabit Ethernet data ports and four fixed 1G uplinks, designed for secure and scalable Layer 2/Layer 3 networking. Equipped with 2 GB RAM and 4 GB flash, it supports protocols like RIP, OSPF, and IS-IS for dynamic routing. Features such as 16000 MAC address entries, SNMP/Syslog/DHCP remote management, and jumbo frame support enhance performance and administrative control. Built for long operational life (MTBF of 508,700 hours) and backed by an Enhanced Limited Lifetime Warranty, this compact 1.73-inch high switch is TAA and RoHS compliant—ideal for enterprise and regulated deployments in demanding environments.

Specifications

Primary Information
Network Device Type Switch
Model C9200L-48T-4G-E
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED
RAM / Total Installed Size 2 GB
Flash Memory / Installed Size 4 GB
Networking Compliant Standards 802.1w, 802.1s, 802.1p
Media Layer Supported Layer 2, Layer 3
Power / Device Type Power Supply
Uplink Port 4
MTBF 508700 hours

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 48 ports data, 4x 1G fixed uplinks

Service&Support
Service & Support Type Enhanced Limited Lifetime Warranty

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 16000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; Syslog; SNMP
Routing Protocol RIP, OSPF, IS-IS
Interfaces 48 ports data, 4x 1G fixed uplinks

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 11.3 Inch
Height 1.73 Inch
Weight 4.53 Kg
