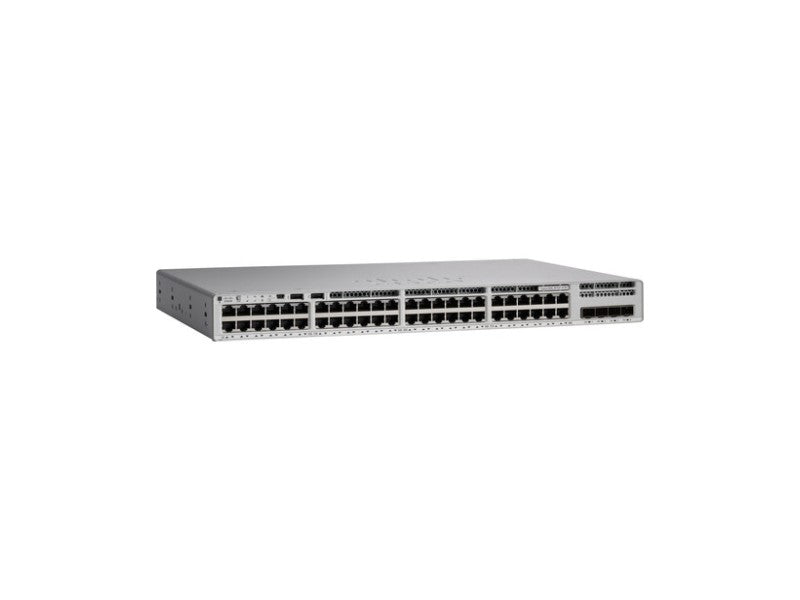

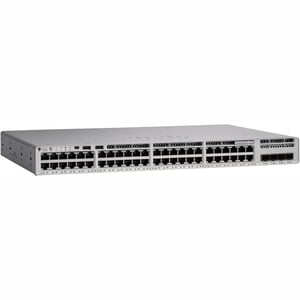

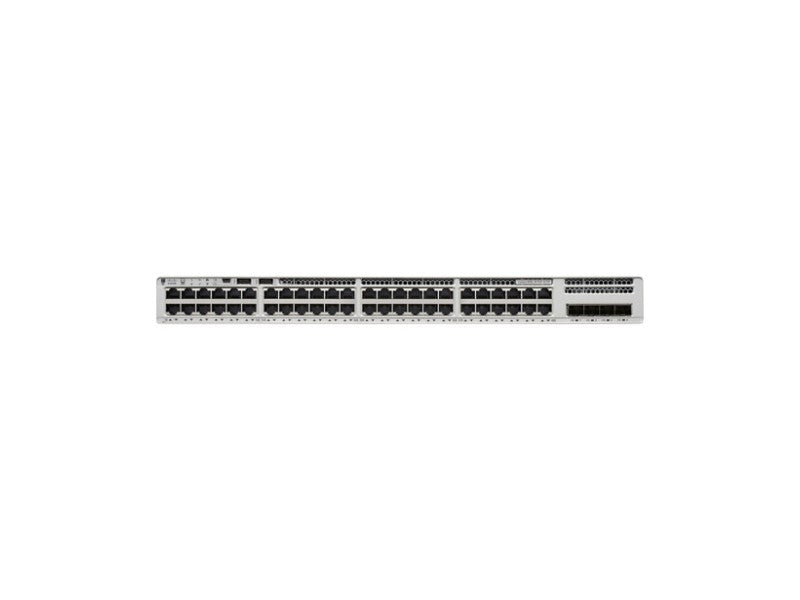

Cisco Catalyst 9200L 48-Port PoE+ Switch with 4x10G Uplinks

VENDOR: CISCO Mfg Part#: C9200L-48P-4X-E UPC#: 889728170192
  • CATALYST 9200L 48-PORT POE+, 4 X 10G, NE
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,234.81
$4,234.81
Sale Sold out
MSRP: $8,252.06
Shipping calculated at checkout.
  • 48-port PoE+ configuration with 4x10G uplink ports
  • Layer 2 and Layer 3 switching with routing support (RIP, OSPF, RIPng)
  • Supports SNMP, RMON, IPv4/IPv6 remote management
  • 2 GB RAM and 4 GB flash memory with 16,000 MAC address capacity
  • Compatible with IEEE 802.3af/at PoE+ and other standards
  • Supports jumbo frames (up to 9198 bytes) and AES encryption

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enterprise-ready switch with robust Layer 2/3 protocols and high-performance 10G uplinks for scalable infrastructures.
  • Comprehensive management and security via SNMP, AES encryption, and IEEE 802.1x compliance for network control.
  • Backed by an enhanced limited lifetime warranty and an MTBF of over 346,000 hours for maximum reliability.

Product Overview

The Cisco Catalyst 9200L (C9200L-48P-4X-E) is an advanced enterprise-grade switch featuring 48 PoE+ ports and 4x10G uplinks for fast, scalable networking. Its support for Layer 2 and Layer 3 protocols, including RIP and OSPF, together with remote management features such as SNMP and RMON, make it a versatile backbone for business infrastructure. The unit includes 2 GB RAM, 4 GB flash, and supports up to 16,000 MAC addresses. Engineered for durability, it offers jumbo frame support and strong encryption (AES), while operating within a wide temperature range. With compliance to IEEE standards including 802.3af/at PoE+ and an impressive MTBF of 346,270 hours, this switch is built for longevity and efficient power delivery.

Specifications

Product Overview
Manufacturer CISCO
Product Name Cisco Catalyst 9200L 48-Port PoE+ Switch with 4x10G Uplinks
Model C9200L-48P-4X-E
Product Type Managed L2 and L3 Ethernet Switch
Form Factor Rack-mountable - 1U
Weight 4.8 Kg
Power Requirements 100 to 240 VAC
Power Device Type Power Supply
MTBF (Mean Time Between Failures) 346270 hours
Installed RAM 2 GB
Flash Memory 4 GB

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin (COO) Mexico
TAA Compliant Yes
Regulatory Compliance Standards IEEE 802.1s, 802.1w, 802.1x, 802.3ad, 802.3af, 802.3at
UPC 889728170192

Advanced Security Features
Encryption AES
Authentication Protocols 802.1x port-based authentication
Supported Routing Protocols RIPv1, RIPv2, RIPng, OSPF
Access Control ACLs (Access Control Lists)

Interfaces
Total Number of Ports 52
PoE+ Ports 48 x PoE+ ports
Uplink Ports 4 x 10G SFP+ uplinks
Port Type RJ-45 and SFP+
Data Link Protocol 10/100/1000 Ethernet, 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes

Physical & Environmental
Width 17.5 Inch
Depth 11.3 Inch
Height 1.73 Inch
Minimum Operating Temperature -5 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C

Cloud Management & Licensing
Remote Management Protocols SNMP, RMON, IPv4, IPv6
Management Interface Cisco DNA Center, CLI, Web UI
Software Licensing Network Essentials License (Included)
Service & Support Enhanced Limited Lifetime Warranty
