| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Form Factor | 1U Rack-mountable |
| Weight | 12.59 lbs |
| Power Requirements | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 1000 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Max Supported Qty | 2 |
| MTBF | 337,260 hours |
| PoE Support | PoE+ |
| PoE Budget | 740 W |
| RAM | 2 GB |
| Flash Memory | 4 GB |
| Jumbo Frame Support | 9198 bytes |

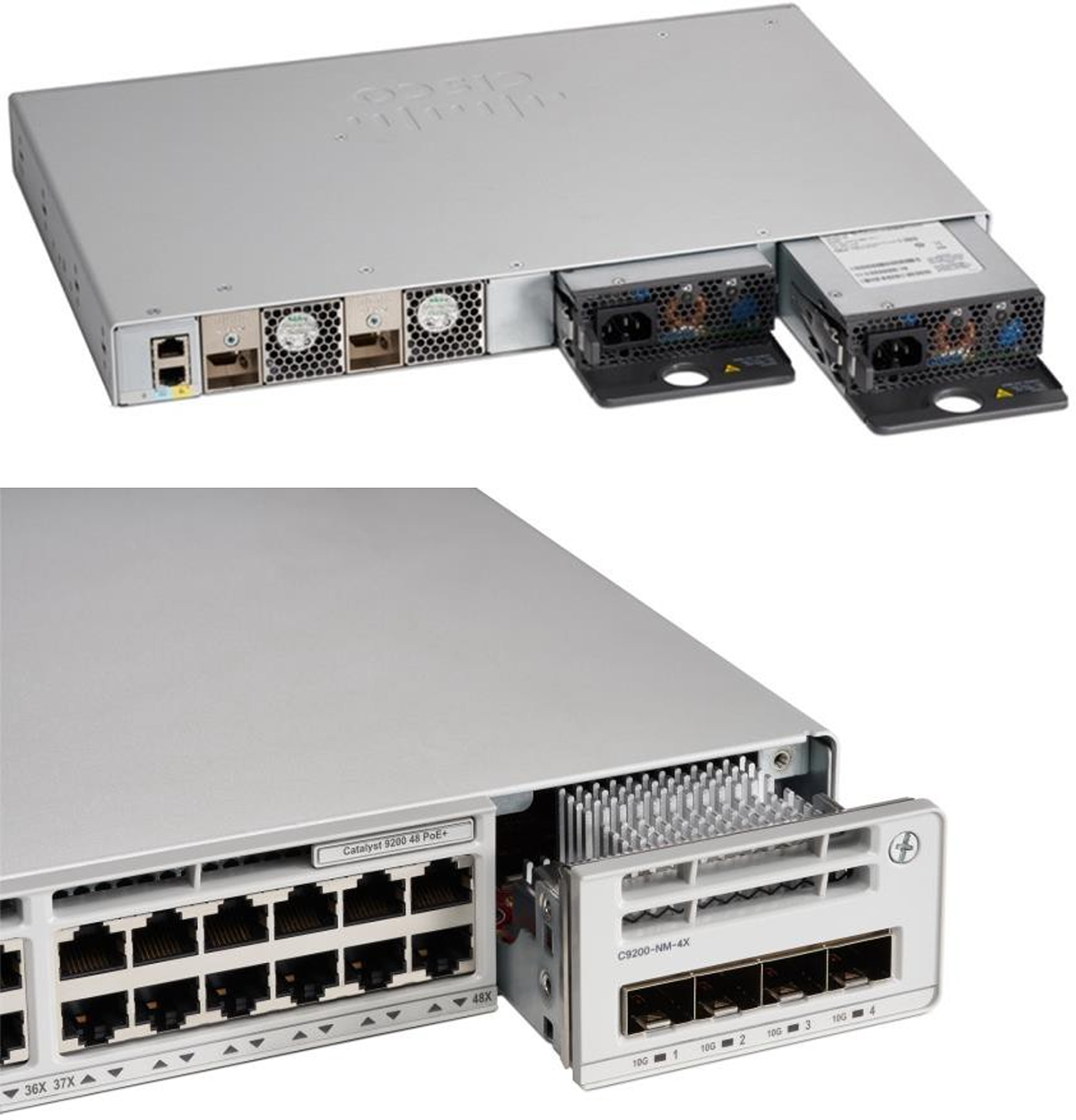

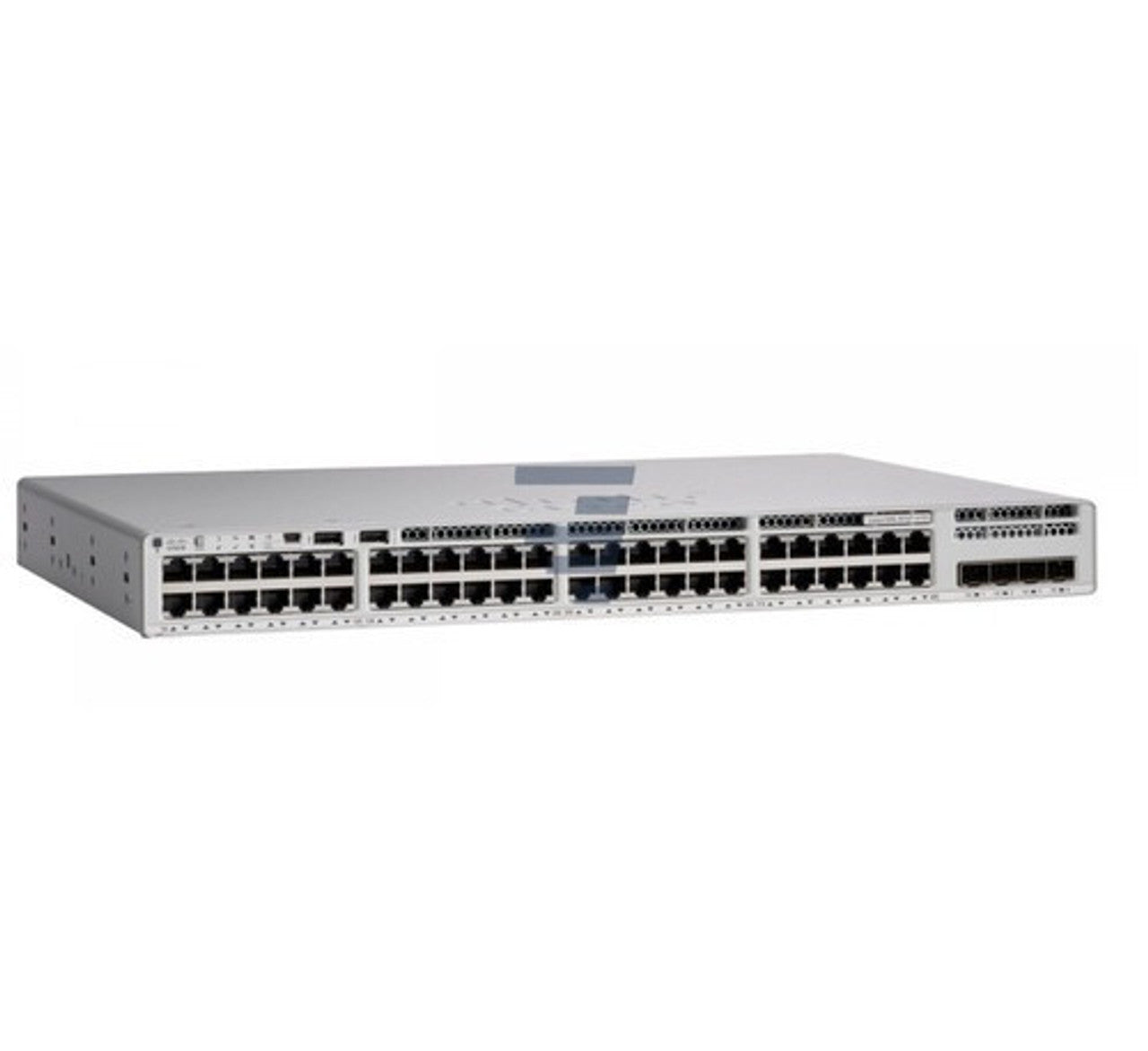

Cisco Catalyst 9200L 48P Switch w/ 12xMGIG, 36x1G, 2x25G, PoE+, EDU
Photo is for illustration purposes only. Actual product may be different.
Regular price
$8,453.65
Regular price
Sale price
$8,453.65
Unit price
per
MSRP: $12,398.69
Shipping calculated at checkout.
Couldn't load pickup availability
- 48-port Layer 3 managed switch with 12 x MGIG and 36 x PoE+ ports
- 740W PoE+ power budget for high-density device support

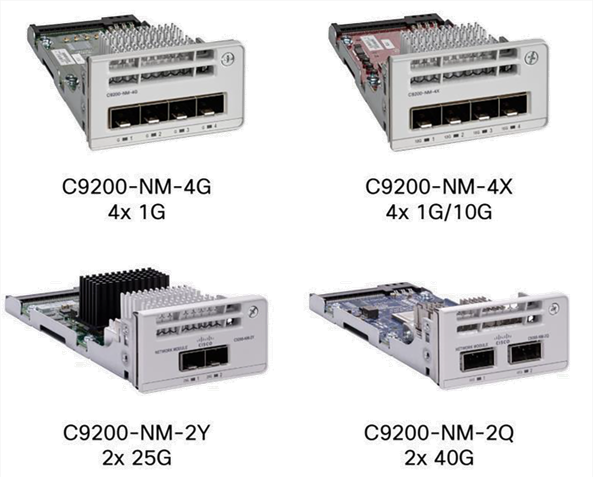

- 2 x 25G uplinks and Cisco StackWise-80 with 80 Gbps stacking bandwidth
- Supports advanced routing protocols including OSPF, EIGRP, and VRRP
- MACsec encryption and QoS with 8 hardware queues per port
- High performance: 340 Gbps switching, 252.97 Mpps forwarding, and 6MB buffer
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for scalability with StackWise-80 and 25G uplinks, enabling seamless network expansion
- Advanced security and Layer 3 routing protocols make it suitable for mission-critical enterprise and education environments
- High PoE+ budget and multigigabit support ensure readiness for modern IoT devices and wireless infrastructure
Product Overview
The Cisco Catalyst 9200L-48PXG2Y-EDU is a fully managed Layer 3 switch purpose-built for enterprise and academic networks demanding performance and scalability. Featuring 12 multigigabit ports, 36 PoE+ Gigabit ports, and 2 high-speed 25G uplinks, it offers powerful connectivity and expansion capabilities.
With a 740W PoE+ budget, support for Cisco StackWise-80 technology enabling up to 80 Gbps stacking bandwidth, and compatibility with advanced routing protocols, this switch is equipped for modern campus and branch deployments. It features MACsec encryption, QoS per port, and robust VLAN and routing table capacities, ensuring secure, efficient traffic handling.
Engineered for reliability with a MTBF of over 337,000 hours, the 9200L supports centralized management through SNMP, CLI, NETCONF, and RESTCONF, and is backed by a limited lifetime warranty. It’s an ideal solution for growing networks prioritizing speed, security, and simplified management.
Specifications
Product Overview
Physical & Environmental
| Width | 17.5 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Cloud Management & Licensing
| Management Interface | SNMP 1/2c/3, RMON 1/2, CLI, NETCONF, RESTCONF |
| Compatible Management Platforms | Cisco DNA Center |
| Service & Support | Limited lifetime warranty, technical support (90 days), next business day advance replacement |
Routing Features
| Supported Routing Protocols | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, RIPng, MSTP, Policy-Based Routing (PBR) |
| IPv4 Routes | 11000 |
| IPv4 Routing Table Entries | 3000 |
| IPv6 Routing Table Entries | 1500 |
| Multicast Scale | 1000 |
| Flow Monitoring | FNF entries: 16000 |
Interfaces
| Total Ports | 48 |
| Port Types | 12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 2 x 25 Gigabit Ethernet |
| Management Ports | 1 x RJ-45 LAN, 1 x RJ-45 Console |
| Uplink Interfaces | 2 x 25GBase-X uplink |
| Stacking Interface | 1 x network stack device |
| Stacking Bandwidth | 80 Gbps |
| Switching Capacity | 340 Gbps |
| Switching Capacity with Stacking | 420 Gbps |
| Forwarding Rate | 252.97 Mpps |
| MAC Address Table Size | 16000 entries |
| VLANs Supported | 1024 |
| Switched Virtual Interfaces (SVIs) | 512 |
| QoS Hardware Queues per Port | 8 |
| Packet Buffer Size | 6 MB |
Compliance & Origin
| Country of Origin | MEXICO / MALAYSIA |
| TAA Compliance | Yes |
| Certifications | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad, 802.1w, 802.1x, 802.1s, 802.1ab, 802.3at, 802.3bz |
Advanced Security Features
| Encryption | 128-bit AES |
| Security Features | MACsec, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, Storm Control, Port Security, WPA2 (through attached AP), Control Plane Policing (CoPP), Private VLAN |
| Access Control | ACL scale entries: 1500 |
| Policy Features | SGT caching, VRF, QoS, DSCP support, CIR, CoS, PBR, IPSG |
Other Features
| Energy Efficiency Compliance | Energy Efficient Ethernet (EEE) |
| Additional Features | EEM, SPAN, RSPAN, VXLAN, LISP, PXE boot, SRR, Rapid PVST+, FHS, MIB support |
