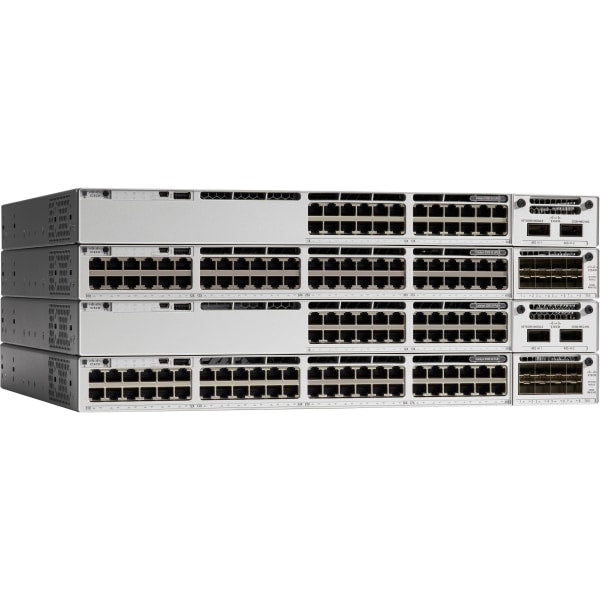

Cisco Catalyst 9300 24-Port Gigabit Network Switch, C9300-24T-E

VENDOR: CISCO Mfg Part#: C9300-24T-E UPC#: 889728035781
  • The Cisco Catalyst 9300 C9300-24T-E is a high-performance, 24-port, data-only switch engineered for next-generation enterprise access networks. Featuring Network Essentials licensing and Layer 2/3 capabilities, it delivers comprehensive switching performance with 1 Gbps throughput and advanced routing protocols.
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,897.00
$4,897.00
Sale Sold out
MSRP: $6,438.95
Shipping calculated at checkout.
  • 24-port 1G copper interfaces with 1 Gbps data rates
  • Layer 2 and Layer 3 support with routing protocols RIPv1, RIPv2, and OSPFv3
  • MAC address table capacity of 32,000 entries
  • 8 GB RAM and 16 GB flash storage for advanced feature support
  • Supports jumbo frames up to 9198 bytes
  • Integrated SNMP and DHCP for remote management
View full details

Key Benefits

Eye-Insights
  • Enterprise-grade performance with Layer 3 routing and high-density gigabit access
  • Reliable hardware with 314,790-hour MTBF and TAA compliance for government procurement
  • Enhanced flexibility and security features meeting IEEE 802.1x and 802.1s standards

Product Overview

The Cisco Catalyst C9300-24T-E is a robust 1U, 24-port Gigabit Ethernet switch designed for scalable enterprise access networks. With wired connectivity and support for Layer 2 and Layer 3 operations, it accommodates seamless integration into demanding environments. This switch supports routing protocols like RIPv1, RIPv2, and OSPFv3, as well as remote management via SNMP and DHCP. It features a 32,000-entry MAC address table and jumbo frame support up to 9198 bytes.

The C9300-24T-E boasts an MTBF of 314,790 hours, internal 350W PSU, and compliance with several IEEE standards for network security and performance. Though it lacks PoE capability, it offers high-throughput performance and is ideal for data-dense environments. With 16 GB flash, 8 GB RAM, and a strong feature set, it includes TAA compliance and a limited lifetime warranty. Operating temperatures range from -5°C to 70°C in storage.

Specifications

Primary Information
Network Device Type Switch
Model C9300-24T-E
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,802.1p
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
Power / Provided (W) 350 Watt
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 314790 hours
Features Flexible and dense uplink offerings; Mixed Stacking with Backward Compatibility ; Stack Power with Backward Compatibility; Secure Tunnel connectivity; Enhanced Application Hosting

Interfaces / Ports
Interfaces 24-port 1G copper

Service&Support
Service & Support Type Enhanced limited lifetime hardware warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; SNMP
Routing Protocol RIPv1, RIPv2,OSPFv3
Interfaces 24-port 1G copper

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 16.1 Inch
Height 1.73 Inch
Weight 7.27 Kg

Special Feature
Min Operating Temperature -5 celsius
Min Storage Temperature -40 celsius
Max Storage Temperature 70 celsius
RoHS Y
COO BRAZIL / CHINA / MEXICO / UNITED STATES
TAA compliance Yes
