Cisco Catalyst 9300 24-Port MGig UPOE Switch C9300-24UX-E

VENDOR: CISCO Mfg Part#: C9300-24UX-E UPC#: 889728035606
  • Switch - C9300-24UX-E - 24-port 10G/mGig copper with modular uplink, UPOE- 8GB RAM - 16GB Flash Memory - RIPv1, RIPv2, RIPng Routing Protocol - IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.3z - Enhanced Limited Lifetime hardware Warranty
1 1

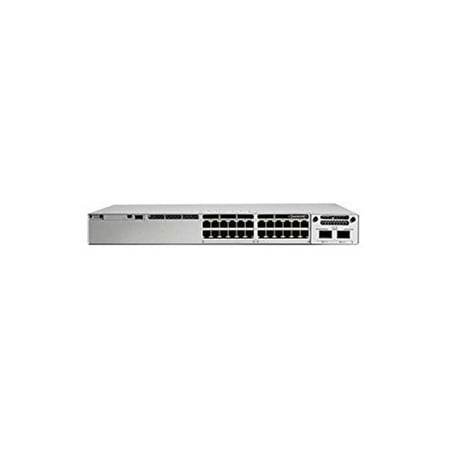

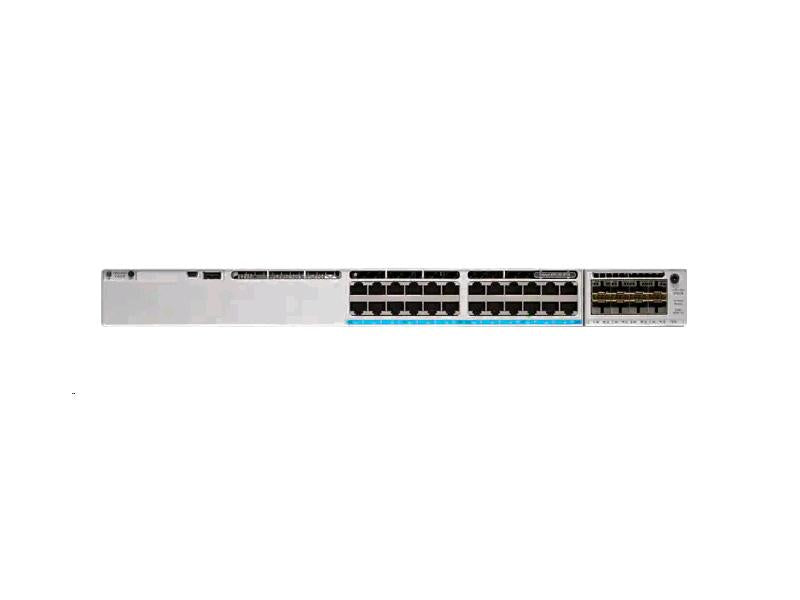

Photo is for illustration purposes only. Actual product may be different.
$14,223.77
$14,223.77
Sale Sold out
MSRP: $18,702.50
Shipping calculated at checkout.
  • 24-port 10G/mGig copper with modular uplink and UPOE support
  • 8 GB RAM and 16 GB flash for robust performance and configuration
  • Supports RIPv1, RIPv2, and RIPng routing protocols
  • Layer 2 and Layer 3 support with 32,000-entry MAC address table
  • PoE power capacity up to 1360W with AES 256-bit encryption
  • Complies with IEEE 802.1s, 802.1w, 802.1x, 802.3u, and 802.3z standards
View full details

Key Benefits

Eye-Insights
  • Enterprise-class scalability and flexibility with modular uplinks and multi-gigabit ports
  • Advanced power capabilities with UPOE support up to 1360W simplify expansion of high-powered devices
  • Comprehensive Layer 2/3 and security features ensure secure, high-throughput network infrastructures

Product Overview

The Cisco Catalyst 9300 Series 24-Port MGig and UPOE Switch (model C9300-24UX-E) is a high-performance Layer 2/3 switch suited for secure and scalable enterprise campus deployments. With 24x 10G/mGig copper ports and modular uplinks, it supports both modern high-throughput devices and legacy infrastructure. The switch integrates advanced routing with RIPv1/v2 and RIPng capabilities, while its 8 GB RAM and 16 GB flash memory enable dynamic configuration and robust performance.

Notable features include UPOE support up to 1360W, SNMP/RMON/Syslog management, jumbo frame support (9198 bytes), and API-driven configuration. It meets IEEE 802.1s/w/x standards and is RoHS and TAA compliant. With an MTBF of 214,760 hours and included Enhanced Limited Lifetime hardware warranty, this switch offers excellent ROI and long-term operational stability in demanding IT environments.

Specifications

Primary Information
Network Device Type Switch
Model C9300-24UX-E
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.3z
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
MTBF 214760 hours
Features Automated device provisioning; API-driven configuration; Granular visibility; Seamless software upgrades and patching

Interfaces / Ports
Interfaces 24-port 10G/mGig copper with modular uplink, UPOE

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption Default: 560W; Upgrade: 1360W
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; SNMP; RMON
Routing Protocol RIPv1, RIPv2, RIPng
Interfaces 24-port 10G/mGig copper with modular uplink, UPOE
Encryption Algorithm AES (256-bit)

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 17.1 Inch
Height 1.73 Inch
Weight 8.25 Kg

Special Feature
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y
COO BRAZIL / CHINA / MEXICO / UNITED STATES
TAA compliance Yes
