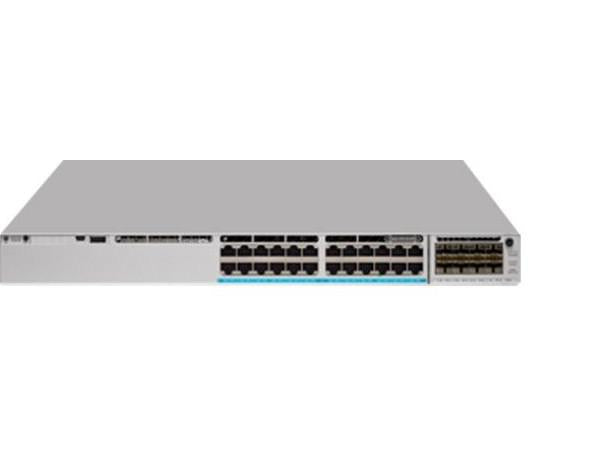

Cisco Catalyst 9300 24-Port UPOE Network Advantage Switch

VENDOR: CISCO Mfg Part#: C9300-24UXB-A UPC#: 889728255820
  • The Cisco Catalyst 9300 Deep Buffer 24-Port MGig Switch delivers high-performance multi-gigabit Ethernet and advanced network management capabilities. Optimized for enterprise environments, this model supports UPOE and provides a robust 560W PoE power budget. Featuring Network Advantage licensing, it's fully equipped for secure, scalable, and stackable deployments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$14,727.90
$14,727.90
Sale Sold out
MSRP: $21,422.40
Shipping calculated at checkout.
  • 24-port multigigabit UPOE support with 100/1000/2.5G/5G/10GBase-T interfaces
  • 560W PoE power budget with optional redundant hot-plug power supply
  • Layer 3 managed, stackable design with Cisco StackWise-480 and StackPower technologies
  • Advanced routing protocols: OSPF, RIP, PIM, VRRP, policy-based routing
  • Switching capacity of 640 Gbps (1.12 Tbps with stacking) and forwarding up to 833.33 Mpps
  • Robust Layer 2/3 features, 64MB packet buffer, and full Cisco IOS Universal OS support
View full details

Key Benefits

Eye-Insights
  • Delivers high-density UPOE connectivity for power-demanding deployments like Wi-Fi 6 and IoT
  • Scalable architecture with StackWise-480 and StackPower enables flexible growth and power redundancy
  • Network Advantage license supports enterprise-grade routing, traffic segmentation, and monitoring

Product Overview

The Cisco Catalyst 9300 Deep Buffer 24-Port Managed Switch (C9300-24UXB-A) is purpose-built for enterprise-grade access layer networks requiring scalable and secure multilayer switching. It offers 24 multigigabit UPOE ports supporting up to 10GBase-T, delivering both power and bandwidth over a single connection—ideal for high-density deployments like Wi-Fi 6 access points, surveillance systems, and IoT devices. With a generous 560W PoE budget and hot-swappable power supplies, this model ensures high availability and minimal downtime.

Underpinned by Cisco's Network Advantage licensing, this switch includes advanced Layer 3 routing capabilities such as OSPF, PIM, and VRRP, along with Flexible NetFlow monitoring, ACL scalability, and policy-based routing. With a switching capacity of 640 Gbps (up to 1.12 Tbps with stacking) and a forwarding rate of up to 833.33 Mpps, it ensures strict performance standards under heavy workloads. Integrated Cisco StackWise-480 and StackPower technologies allow seamless scalability and power redundancy across the stack.

Security and automation are built-in, supporting protocols like 802.1X authentication, SNMP, and RESTCONF. Managed via Cisco IOS Universal, it’s designed for long-term reliability with a 64MB packet buffer, 64K MAC address table, and robust compliance to environmental standards—all in a compact 1U rack-mountable unit.

Specifications

Primary Information
Network Device Type Switch
Data Transfer Rate Not Included
Data Link Protocol Gigabit Ethernet
Networking / Ports Qty Not Included

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 24-port modular uplinks mGig UPOE

Special Feature
COO CHINA / UNITED STATES / UNITED STATES
TAA compliance Yes

Network
Interfaces 24-port modular uplinks mGig UPOE

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 17.1 Inch
Height 1.73 Inch
