Cisco Catalyst 9300 48-Port 5G UPOE Switch C9300-48UN-10A

VENDOR: CISCO Mfg Part#: C9300-48UN-10A
  • The Cisco Catalyst 9300-48UN-10A is a high-performance Layer 3 managed switch engineered for enterprise-level deployments. With 48 multi-speed (up to 5Gbps) UPOE ports, advanced routing capabilities, and a 10-year Network Advantage license, it is optimized for scalability and superior network control. A robust forwarding rate and high stacking bandwidth make it ideal for modern networks requiring reliability, security, and high throughput.
1 1

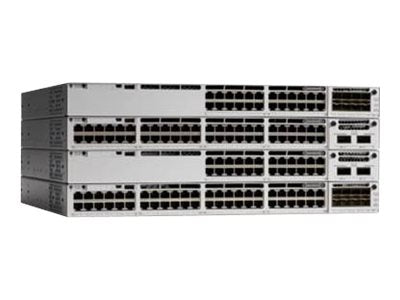

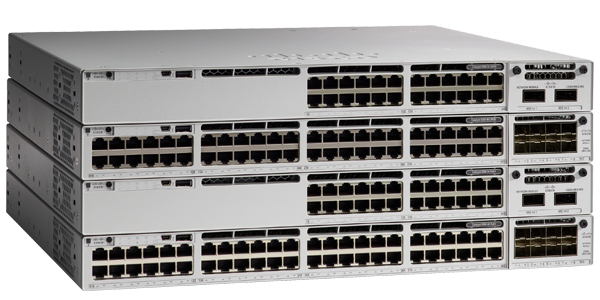

Photo is for illustration purposes only. Actual product may be different.
$10,920.98
$10,920.98
Sale Sold out
MSRP: $15,885.06
Shipping calculated at checkout.
  • 48 x 100/1000/2.5G/5GBase-T UPOE ports for high-speed and powered connectivity
  • Supported switching capacity of 640 Gbps and StackWise-480 stacking bandwidth at 480 Gbps
  • Advanced Layer 3 routing with support for OSPF, BGP, MPLS, and more
  • 8 GB RAM and 16 GB flash memory for fast processing and updates
  • Enhanced power flexibility with 645W PoE budget and hot-pluggable 1100W power supply
  • Security and management features including MACsec, 802.1x, TrustSec, NETCONF, and RESTCONF
View full details

Key Benefits

Eye-Insights
  • Ten-year Network Advantage license included, providing long-term value and feature upgrades without recurring fees
  • Multi-speed UPOE ports (up to 5 Gbps) enable support for high-bandwidth PoE devices and future-proof expansion
  • Enterprise-grade resilience with high MTBF (198,647 hours), hot-plug PSU, and optional power redundancy for uninterrupted uptime

Product Overview

The Cisco Catalyst 9300 Series Switch C9300-48UN-10A is a 1U rack-mountable Layer 3 managed switch delivering superior performance with 48 Ultra PoE (UPOE) ports supporting speeds up to 5 Gbps. Designed for converged access networks, it supports full-duplex operation, advanced routing protocols like OSPF, BGP, and MPLS, and integrates with Cisco StackWise-480 technology for seamless stacking. The maximum switching capacity reaches 640 Gbps, with a forwarding rate of 476.19 Mpps, powered by 8 GB RAM and 16 GB flash memory. Built for reliability, it features a hot-pluggable power supply rated at 1100W and has an MTBF of 198,647 hours. Enhanced security functions, including MACsec encryption and 802.1x authentication, ensure compliance and protection in enterprise settings.

With TAA compliance, a 10-year Network Advantage license, and intelligent support for Flexible NetFlow, this model suits large-scale, secure deployments across evolving enterprise infrastructures. Its 645W PoE budget and StackPower capabilities further solidify its efficiency and scalability in dynamic network environments.

Specifications

Primary Information
Network Device Type Switch
Model C9300-48UN-10A
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 5 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
Power / Provided (W) 1.1 KW

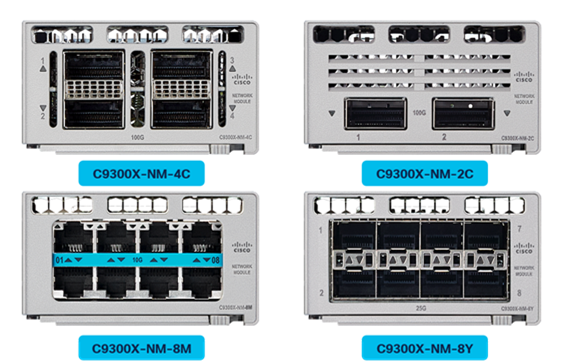

Uplink Port Modular Uplinks
Power / Voltage Required 115V to 240 VAC
MTBF 198647 hours
Features Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration.

Interfaces / Ports
Interfaces 5G copper;USB 3.0;USB 2.0

Service&Support
Service & Support Type Cisco Enhanced Limited Lifetime hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support Y
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; SNMP
Routing Protocol RIPv2, RIPng
Encryption Algorithm AES
Interfaces 5G copper;USB 3.0;USB 2.0

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 19.1 Inch
Height 1.73 Inch
Weight 9.09 Kg

Special Feature
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y
COO UNITED STATES
TAA compliance Yes
