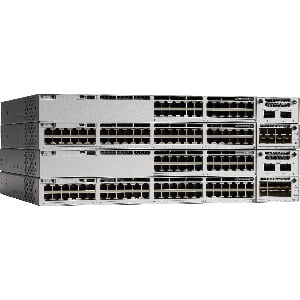

Cisco Catalyst 9300 48-Port C9300-48UXM-A Managed Switch

VENDOR: CISCO Mfg Part#: C9300-48UXM-A UPC#: 889728051613
  • The Cisco Catalyst 9300-48UXM-A is a high-performance, enterprise-grade switch designed for scalable access layer deployments. With 48 ports supporting Cisco UPOE, advanced routing capabilities including RIPv1, RIPv2, and RIPng, and robust remote management via SNMP, RMON, and Syslog, this unit is built for demanding network environments. It features 8GB RAM, 16GB flash memory, and a highly reliable power supply with Enhanced Limited Lifetime hardware Warranty.
1 1
Photo is for illustration purposes only. Actual product may be different.
$11,849.80
$11,849.80
Sale Sold out
MSRP: $17,236.07
Shipping calculated at checkout.
  • 48-port Cisco UPOE switch including 12 multigigabit and 36 2.5 Gbps ports
  • Supports Layer 2 and Layer 3 switching with RIPv1, RIPv2, and RIPng protocols
  • 8 GB RAM and 16 GB flash memory for fast processing and storage
  • Remote management capability through SNMP, RMON, and Syslog
  • Jumbo frame support up to 9198 bytes; AES 256-bit encryption
  • MTBF of 202,160 hours and Enhanced Limited Lifetime hardware Warranty
View full details

Key Benefits

Eye-Insights
  • Enterprise-ready with high-performance port density and multigig capabilities for scalable growth.
  • Advanced routing and management support ensure secure, efficient operation across complex networks.
  • Built for longevity and reliability with a 202,160-hour MTBF and lifetime warranty coverage.

Product Overview

The Cisco Catalyst C9300-48UXM-A is a high-performance access layer switch featuring 48 Cisco UPOE ports with support for up to 12 multigigabit interfaces. It offers comprehensive Layer 2 and Layer 3 capabilities along with advanced routing protocols like RIPv1, RIPv2, and RIPng. Built with 8GB RAM and 16GB of flash, it supports jumbo frames up to 9198 bytes and standards including 802.1p, 802.1s, and 802.1w. Enhanced by a 202,160-hour MTBF and advanced remote management protocols, the switch is a robust, secure solution for enterprise networking.

Specifications

Special Feature
COO BRAZIL / CHINA / MEXICO / UNITED STATES
TAA compliance Yes
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y

Primary Information
Network Device Type Switch
Model C9300-48UXM-A
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Power / Device Type Power Supply
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired
Status Indicators LED
Networking Compliant Standards 802.1p, 802.1s, 802.1w
Media Layer Supported Layer 2, Layer 3
MTBF 202160 hours

Network
Power Over Ethernet (PoE) Support Y
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; RMON; SNMP
Routing Protocol RIPv1, RIPv2, RIPng
Encryption Algorithm AES (256-bit)
Interfaces 48 port Cisco UPOE

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 19.1 Inch
Height 1.73 Inch
Weight 9.34 Kg

Interfaces / Ports
Interfaces 48 port Cisco UPOE
