Cisco Catalyst 9300 48-Port mGig UPOE+ Switch C9300X-48HXN-EDU

VENDOR: CISCO Mfg Part#: C9300X-48HXN-EDU
  • The Cisco Catalyst 9300 48-Port mGig UPOE+ Switch offers enterprise-grade switching with 8 multi-gigabit and 40 5G-capable UPOE+ ports, tailored for high-demand educational environments. With advanced security, robust routing capabilities, and scalable stacking performance, this managed, rack-mountable device is engineered for modern campus and enterprise networks.
1 1

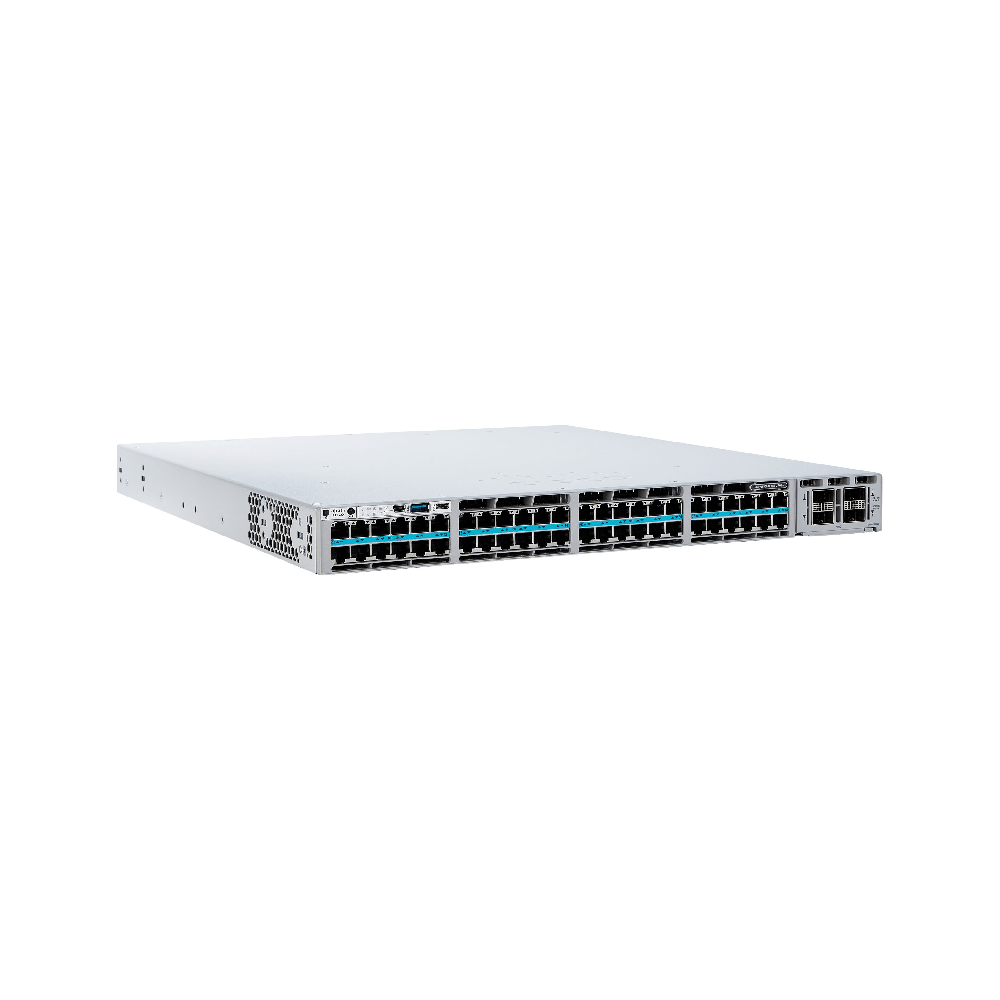

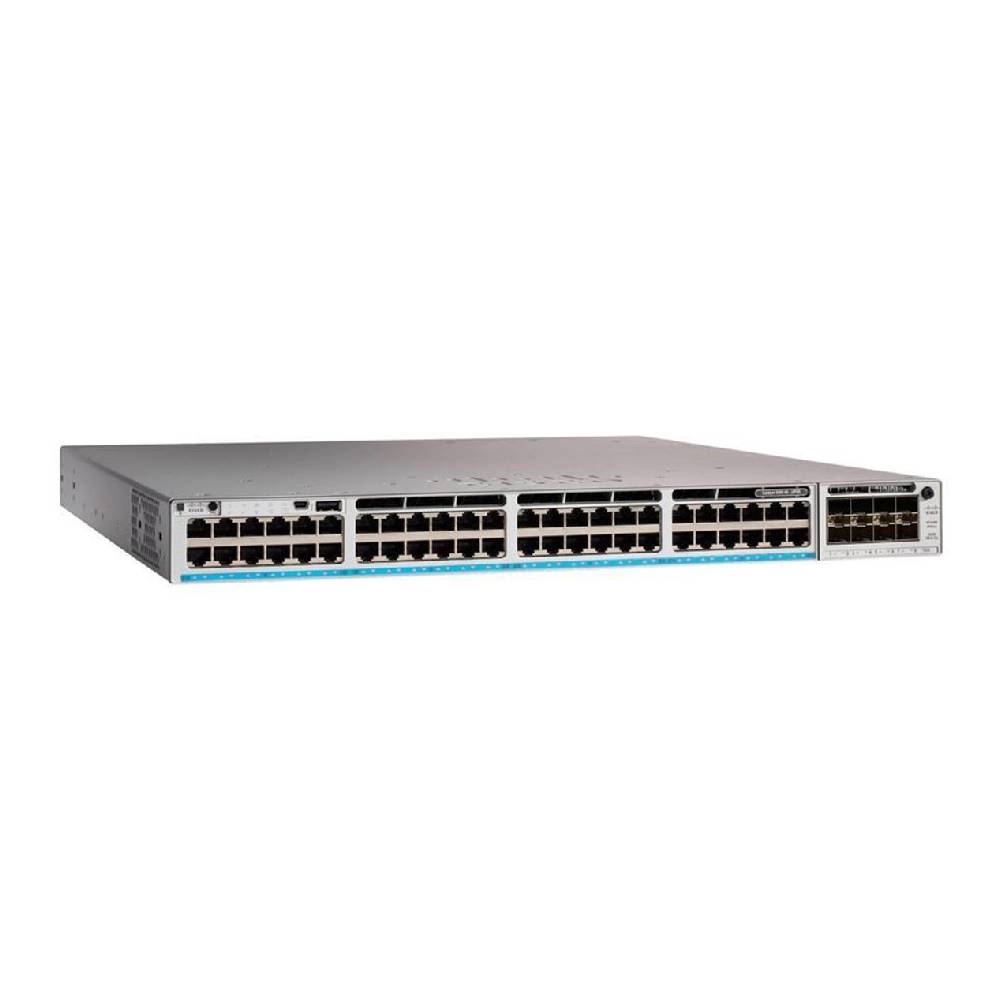

Photo is for illustration purposes only. Actual product may be different.
$11,900.81
$11,900.81
Sale Sold out
MSRP: $17,310.26
Shipping calculated at checkout.
  • 48-port managed Layer 3 switch supporting 8x 10G mGig and 40x 5GBase-T UPOE+ (90W per port)
  • Up to 3000 Gbps switching capacity and 2232 Mpps forwarding rate with stacking
  • Advanced protocol support including BGP, OSPF, MPLS, MACsec, VXLAN, and TrustSec
  • Integrated 16GB RAM and 16GB flash memory; supports jumbo frames up to 9198 bytes
  • IEEE 802.3-compliant, rack-mountable form factor; includes hot-plug redundant PSU support
  • Limited lifetime warranty and optional next-business-day replacement service
View full details

Key Benefits

Eye-Insights
  • Designed for educational and enterprise deployments with UPOE+ power and high port density

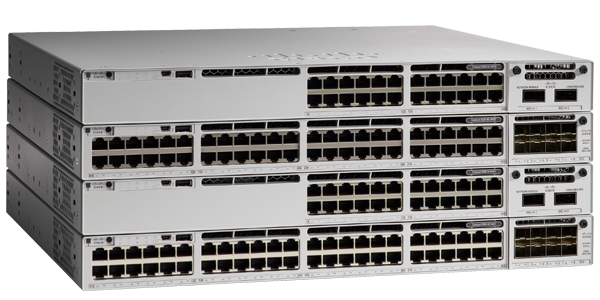

  • Optimized for scalable performance with 8-unit stacking and up to 3000 Gbps in stack configuration
  • Future-proof infrastructure with advanced routing, encryption, and virtualization protocol support

Product Overview

The Cisco Catalyst 9300 Series C9300X-48HXN-EDU is a next-generation layer 3 managed switch, designed to power digital-ready networks across educational institutions and enterprise infrastructures. It features 48 ports with 8 ports supporting 10G multi-gigabit and 40 ports with 5G capability, all enabled with Cisco’s UPOE+ up to 90W for high-power PoE devices. With a switching capacity of 2000 Gbps and up to 3000 Gbps with stacking, it handles bandwidth-intensive applications with ease. This switch also integrates 16GB RAM, 16GB flash memory, and advanced routing protocols like BGP, OSPF, MPLS, and others, ensuring future-ready versatility and high-performance networking.

Compliant with IEEE and 80 PLUS Platinum standards, the switch emphasizes energy efficiency and long-term operational reliability (MTBF 188,200 hours). It supports hot-plug internal PSU and optional power redundancy with up to 1100W. It features advanced security and virtualization technologies such as MACsec encryption, TrustSec, LISP, and VXLAN, and is manageable via a broad array of protocols including NETCONF, RESTCONF, SNMP, and gRPC. Built-in QoS, extensive ACL capacity, jumbo frame (9198 bytes) support, and a robust VLAN architecture promote granular traffic control and network segmentation — ideal for converged applications such as voice, video, and data.

Specifications

Primary Information
Network Device Type Switch
Model C9300X-48HXN-EDU
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 16 GB
Power / Device Type Power Supply
MTBF 188200 hours

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces UPOE+

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

Special Feature
COO MEXICO
TAA compliance Yes
RoHS Y

Network
Power Over Ethernet (PoE) Support Y
Interfaces UPOE+
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 17.57 Inch
Height 1.73 Inch
Weight 6.44 Kg
