Cisco Catalyst 9300 48-Port PoE+ Network Switch, C9300-48P-A

VENDOR: CISCO Mfg Part#: C9300-48P-A UPC#: 889728051651
  • CATALYST 9300 48-PORT POE+, NETWORK ADVA
1 1

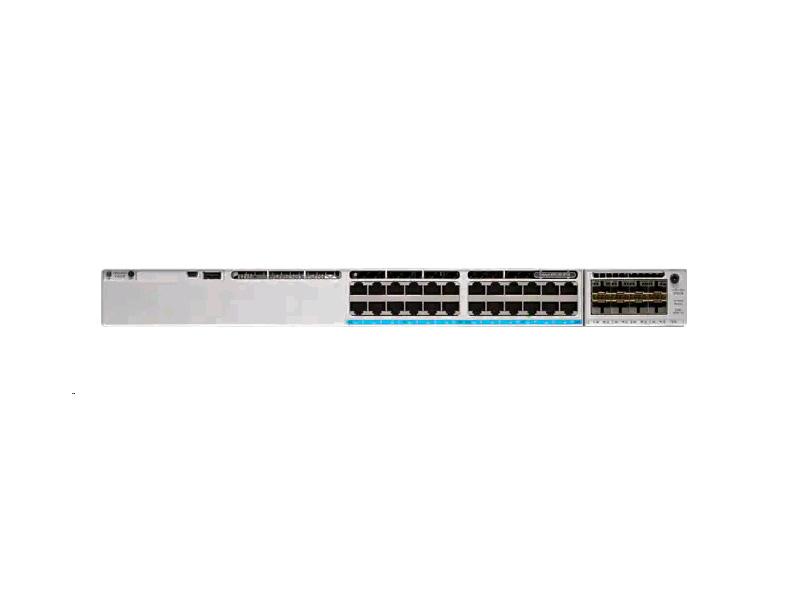

Photo is for illustration purposes only. Actual product may be different.
$7,165.89
$7,165.89
Sale Sold out
MSRP: $11,974.90
Shipping calculated at checkout.
  • 48-port Gigabit Ethernet copper with PoE+ support
  • 8 GB DRAM and 16 GB Flash for enhanced performance and scalability
  • Supports IEEE 802.1s, 802.1w, 802.1x, 802.3u, and 802.3z standards
  • Layer 2 and Layer 3 functionalities for comprehensive networking
  • 32000-entry MAC Address Table enables large-scale deployments
  • SNMP, DHCP, and IPv6 protocol support for advanced management

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for enterprise scalability with modular uplinks and advanced memory specifications
  • Supports PoE+ across all 48 ports, ideal for powering devices like IP phones and cameras
  • TAA compliance ensures suitability for government and regulated industry use

Product Overview

The Cisco Catalyst 9300-48P-A is a highly scalable enterprise-grade switch offering 48 Gigabit Ethernet copper ports with PoE+ capabilities. Engineered for high-performance campus and branch deployments, it includes 8 GB of DRAM and 16 GB of Flash memory, providing ample resources for advanced switch functionalities. The switch features modular uplink design, supporting diverse network topologies while optimizing long-term investment value.

Built on the Catalyst 9300 Series platform, the unit supports key standards like IEEE 802.1s, 802.1w, 802.1x, 802.3u, and 802.3z, combined with Layer 2 and 3 support for strong IP and VLAN management. Management features include SNMP, DHCP, IPv6, and support for up to 32,000 MAC addresses. The device is also TAA compliant, making it suitable for regulated or government sectors.

Specifications

Product Overview
Product Type Managed Stackable Layer 3 Switch
Series Cisco Catalyst 9300 Series
Model C9300-48P-A
Form Factor 1U Rack-mountable
Power Requirements AC 100–240V (50/60 Hz)
Power Consumption (Typical) 65W
Maximum Power Consumption 715W
PoE Power Budget 715W
Weight 7.6 kg (16.75 lbs)
Switching Capacity 208 Gbps
Forwarding Performance 154.76 Mpps
Flash Memory 16 GB
System Memory (DRAM) 8 GB
MAC Address Table Size 32,000 entries

Wireless Features
Wireless Controller Integration Supports wireless controller functionality via Cisco DNA Center

Compliance & Origin
TAA Compliance Yes
Country of Origin Brazil / China / Mexico / United States
Certifications UL, CE, FCC, CSA, ICES, VCCI, BSMI, RCM
Environmental Compliance RoHS, WEEE

Advanced Security Features
802.1X Authentication Yes
MACsec Encryption Yes (hardware-based 128-bit)
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Port Security Yes
Control Plane Protection Yes
Private VLAN Yes
Cisco TrustSec Supported

Interfaces
Total Ethernet Ports 48 x 10/100/1000 PoE+ ports
Uplink Ports Modular uplink (4 x 1G/10G SFP/SFP+)
Console Ports 1 x USB Type B, 1 x RJ-45
Management Ports 1 x 10/100/1000 Ethernet (out-of-band)
Stacking Ports 2 x StackWise-480 ports
Stack Bandwidth 480 Gbps
PoE+ Support IEEE 802.3at on all 48 ports
Total Number of PoE+ Ports 48
Redundant Power Supply Support Yes (optional)

Physical & Environmental
Dimensions (W x D x H) 44.5 x 44.8 x 4.45 cm (17.5 x 17.64 x 1.75 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
MTBF 285,440 hours
Cooling Front-to-back airflow (field-replaceable fans)

Cloud Management & Licensing
Management Interface Cisco IOS XE, CLI, SNMP v1/v2c/v3, RMON, DHCP, HTTP, Telnet, SSH
Web UI Cisco Web GUI (Device Manager)
Cloud-Ready Yes, with Cisco DNA Center
Included License Network Advantage
Stacking Support Yes - StackWise-480
Virtual Stacking Support Yes, via Cisco DNA Center
