Cisco Catalyst 9300 C9300-24S-A 24-Port GE SFP Managed Switch

VENDOR: CISCO Mfg Part#: C9300-24S-A UPC#: 889728193597
  • Catalyst 9300 24 GE SFP Ports,
1 1

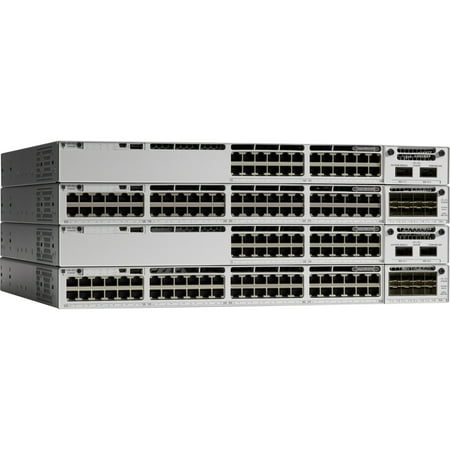

Photo is for illustration purposes only. Actual product may be different.
$17,767.48
$17,767.48
Sale Sold out
MSRP: $26,058.96
Shipping calculated at checkout.
  • 24x 1G SFP ports for high-performance fiber connectivity
  • Layer 2 and Layer 3 support with RIPv1, RIPv2, RIPng routing protocols
  • Built-in 8 GB RAM and 16 GB flash memory for application headroom
  • Advanced remote management: SNMP, RMON, and Syslog protocols
  • Supports jumbo frames up to 9198 bytes for efficient large packet transfer
  • MTBF of 284,130 hours for high reliability and uptime

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports secure and scalable enterprise networking with Layer 3 protocols and AES-256 encryption.
  • Built-in hardware resiliency featuring over 284,000 hours MTBF and wide operating temperature compatibility.
  • Backed by Cisco’s Enhanced Limited Lifetime Warranty and TAA compliance, ensuring long-term value and regulatory support.

Product Overview

The Cisco Catalyst 9300 C9300-24S-A is a next-generation wired enterprise switch delivering high-performance 24x 1G SFP ports for scalable, fiber-based networks. It supports Layer 2 & Layer 3 routing, including RIPv1, RIPv2, and RIPng, and is built with 8 GB RAM and 16 GB of flash memory for robust performance. Advanced management options include SNMP, RMON, and Syslog, while compliance with 802.1p/s/w ensures interoperability. Designed with an impressive MTBF of 284,130 hours and environmental resilience, it's ideal for mission-critical environments. The switch also features AES-256 encryption, TAA compliance, and comes backed by an Enhanced Limited Lifetime Warranty.

Specifications

Product Overview
Product Type Managed Switch
Series Cisco Catalyst 9300
Model C9300-24S-A
Form Factor Rack-mountable - 1U
Weight 7.64 Kg
Power Requirements Internal power supply (modular), optional redundant power supply supported
Power Device Type Power Supply
RAM (Installed) 8 GB
Flash Memory (Installed) 16 GB
MTBF 284130 hours

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Brazil / China / Mexico / United States
TAA Compliance Yes
RoHS Compliant Yes
Compliant Standards IEEE 802.1p, 802.1s, 802.1w
Certification UL, CSA, CE Mark, FCC Part 15 Class A

Advanced Security Features
Encryption AES-256
Secure Boot Enabled as part of Cisco Trust Anchor Technology
Threat Defense Role-based access control, Dynamic ARP inspection
Port Security MAC address-based port security
Access Control Lists (ACLs) IPv4/IPv6 ACLs supported
IP Source Guard Supported
DHCP Snooping Yes
Private VLAN Supported

Interfaces
Total SFP Ports 24 x 1G SFP
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Layer Support Layer 2 and Layer 3
MAC Address Table Size 32000 Entries
Jumbo Frame Support 9198 bytes
Status Indicators LED indicators (Status, Link, Activity)

Physical & Environmental
Width 17.5 Inch
Depth 17.7 Inch
Height 1.73 Inch
Minimum Operating Temperature -5 °C
Maximum Operating Temperature 50 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C
Relative Humidity (Operating) 5% to 90% (non-condensing)
Cooling Type Fanless or intelligent fan control depending on configuration

Cloud Management & Licensing
Management Interface CLI, SNMP, RMON, Syslog
Management Features Cisco DNA Center, Web UI, Cisco IOS XE
Licensing Model Cisco Smart Licensing – Network Advantage License required
Included Cloud Features Support for Cisco DNA subscriptions with advanced analytics and policy-based automation
