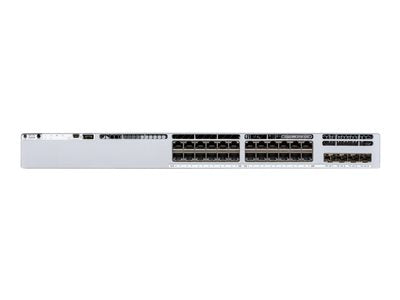

Cisco Catalyst 9300L 24-Port Managed Switch C9300L-24UXG4X-EDU

VENDOR: CISCO Mfg Part#: C9300L-24UXG4X-EDU
1 2
Photo is for illustration purposes only. Actual product may be different.
$6,893.39
$6,893.39
Sale Sold out
MSRP: $10,110.30
Shipping calculated at checkout.
  • 24-port configuration including 16 x UPOE (10/100/1000) and 8 x multi-Gigabit (1/2.5/5/10GBase-T)
  • 4 x 10G SFP+ uplinks for high-throughput interconnects
  • 880W PoE budget with internal hot-plug 1100W power supply
  • 272 Gbps switching capacity (592 Gbps with stacking) and 202.38 Mpps forwarding rate
  • Extensive protocol support: OSPF, EIGRP, RIP, VRRP, PIM, and IPv6 routing
  • Advanced management flexibility: SNMP v1/2c/3, CLI, RESTCONF, NETCONF, gRPC, YANG

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Perfect for education sector with dedicated K-12 pricing and robust performance features
  • High Port Versatility with UPOE and multi-Gigabit support addresses both legacy and high-speed client needs
  • Secure and scalable management enables efficient deployment in large enterprise or campus environments

Product Overview

The Cisco Catalyst 9300L-24UXG4X-EDU is a high-performance stackable Layer 3 switch built for next-generation campus access. It offers 24 ports, including 16 UPOE-enabled 10/100/1000 ports and 8 multi-Gigabit 1/2.5/5/10GBase-T interfaces, along with 4 dedicated 10Gb SFP+ uplinks. With a PoE budget of 880W and support for an extensive range of routing protocols, it enables scalable, efficient networking in dense deployment environments like education and enterprise campuses.

The device supports a forwarding rate up to 202.38 Mpps and a switching capacity of 272 Gbps, stackable up to 592 Gbps. It includes 8 GB RAM, 16 GB flash memory, and an internal hot-plug power supply with optional redundancy. Advanced management is delivered via SNMP, RESTCONF, NETCONF, CLI, and gRPC, all secured with MACsec and AES encryption. It complies with a wide range of Ethernet and security standards, and supports up to 4094 VLANs, making it highly suitable for demanding networks.

Featuring Cisco StackWise-320 technology, Zero Touch Provisioning (ZTP), and a lifetime warranty, this switch delivers enterprise-grade reliability and investment protection, ideal for modern, large-scale IT infrastructures requiring granular policy control and simplified operations.

Specifications

Product Overview
Product Type Managed Stackable Layer 3 Switch
Form Factor Rack-mountable
Switching Capacity 272 Gbps
Switching Capacity with Stacking 592 Gbps
Forwarding Rate 202.38 Mpps
Forwarding Rate with Stacking 440.47 Mpps
RAM 8 GB
Flash Memory 16 GB
MAC Address Table Size 32000 entries
PoE Budget 880 W
Power Requirements AC 120/230 V (50 - 60 Hz)
Maximum Power Provided 1100 W
Power Redundancy Optional
MTBF 332,640 hours
Warranty Limited lifetime warranty
Service and Support Replacement - lifetime, Technical support - 90 days

Advanced Security Features
Encryption Support 128-bit AES, 256-bit AES
MACsec Support Yes
802.1X Authentication Yes
Secure Boot Yes
Cisco Trust Anchor Module Yes
Access Control List (ACL) 5120 entries

Routing & Software Features
IPv4 Route Capacity 32,000
IPv6 Route Capacity 16,000
Multicast Scale 8,000
Switched Virtual Interfaces (SVI) 1,000
VLAN Support 4094 VLANs
Routing Protocols Supported OSPF, OSPFv3, RIP-1/2, RIPng, EIGRP, EIGRP for IPv6, VRRP, MSTP, PIM-SM, PIM-SSM, PBR
QoS Entries 5120

Compliance & Origin
Country of Origin China / Mexico
TAA Compliant Yes
Certifications RoHS, UL 60950-1, FCC Part 15 Class A, ICES-003, EN 60950-1, IEC 60950-1, VCCI Class A, BSMI, CNS 13438, KN32, KN35, CCC, AS/NZS 60950-1, EN 55022/24/32, CISPR 22/24/32/35
IEEE Standards Compliance IEEE 802.1D/Q/p/w/x/s/ae/1x/1BA, IEEE 802.3/u/z/ab/ad/x/bt, IEEE 1588v2, Wi-Fi CERTIFIED 6

Interfaces
Total Ports 24 x data + 4 x uplink
UPOE Ports 16 x 10/100/1000Base-T (UPOE)
Multi-Gigabit Ports 8 x 1/2.5/5/10GBase-T
Uplink Ports 4 x 10GBase-X SFP+
Console Ports 1 x RJ-45 console
Management Ports 1 x RJ-45 management LAN
USB Ports 1 x USB 2.0
Stacking Ports 1 x network stack device
Jumbo Frame Support 9198 bytes

Cloud Management & Licensing
Network Management Protocols SNMPv1/v2c/v3, RMON1/2, CLI, NETCONF, RESTCONF, gRPC, YANG
Zero Touch Provisioning (ZTP) Yes
Supported Stack Protocol Cisco StackWise-320

Physical & Environmental
Width 17.5 in
Depth 1.7 in
Height 19.2 in
Weight 15.72 lbs
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Operating Range 5% – 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Storage Range 5% – 90% (non-condensing)
