| Model | Catalyst 9300L |
| Form Factor | 1RU |
| Data Transfer Rate | 40 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Network Device Type | Switch |
| Status Indicators | LED indicators |
| RAM / Total Installed Size | 8 GB |
| Flash Memory / Installed Size | 16 GB |
| Networking Compliant Standards | IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,802.1p,IEEE 802.3bt |
| Media Layer Supported | Layer 2 and Layer 3 |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1.1 KW |
| Power / Voltage Required | 100 to 240 VAC |
| MTBF | 291670 hours |
| Features | Automated device provisionin:API-driven configuratio; Granular visibility |
Cisco Catalyst 9300L 24-Port Switch with 2x40G Uplink, K-12 Edition

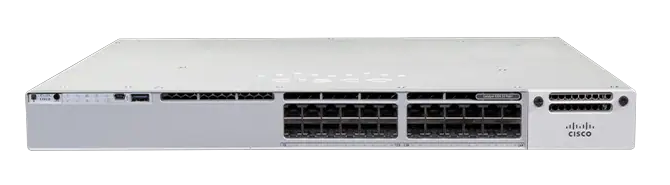

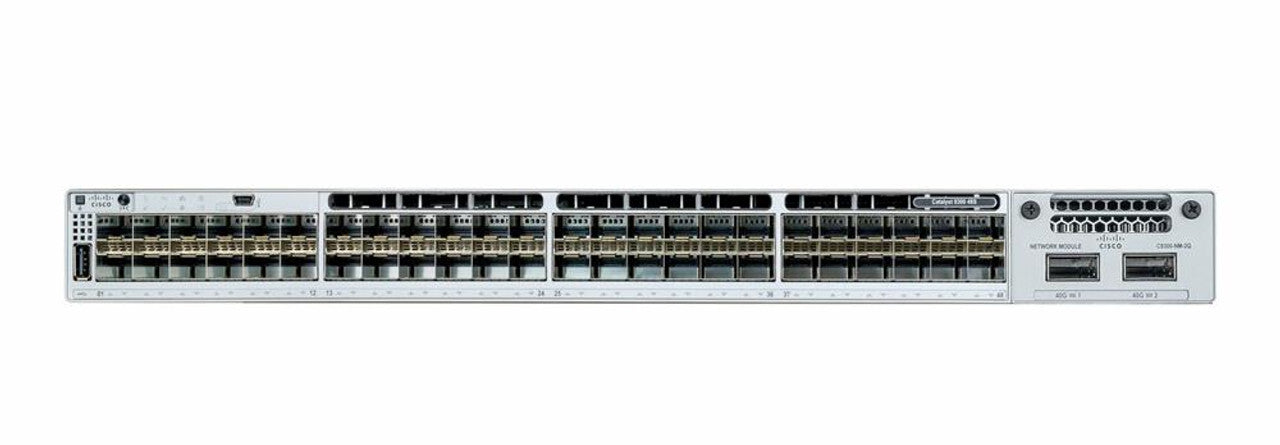

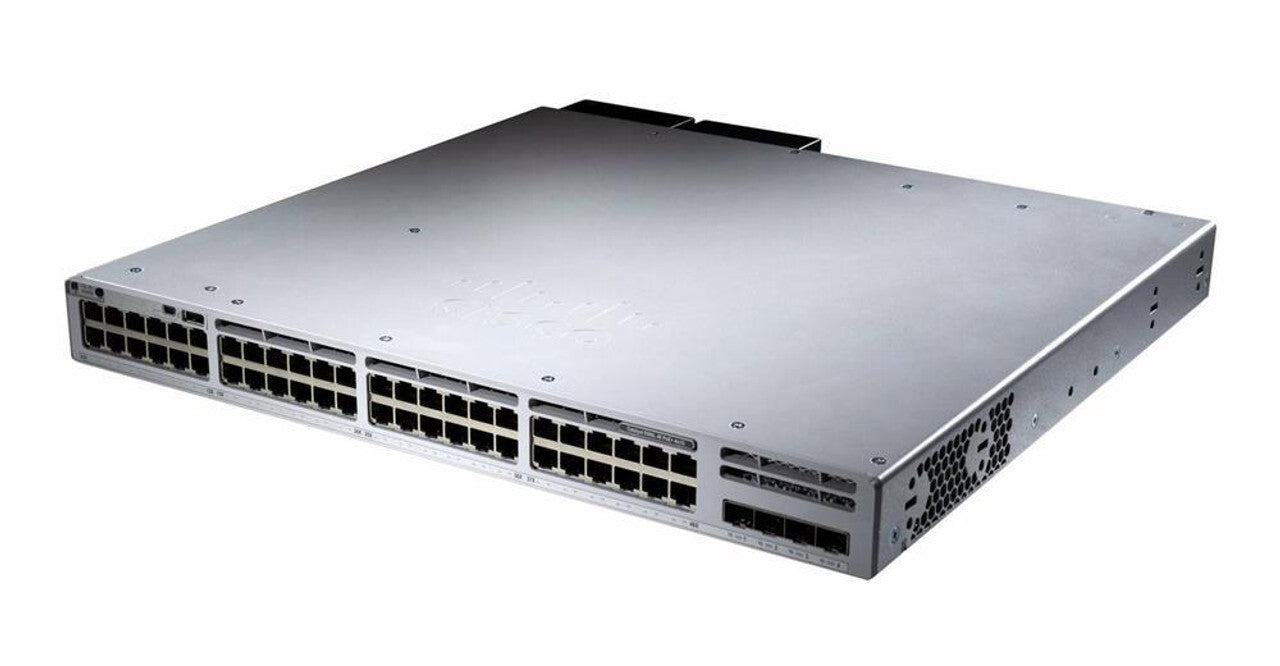

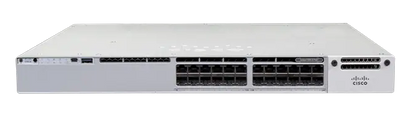

Photo is for illustration purposes only. Actual product may be different.
Regular price
$10,218.95
Regular price
Sale price
$10,218.95
Unit price
per
MSRP: $14,863.93
Shipping calculated at checkout.
Request a quote
Cisco Catalyst 9300L 24-Port Switch with 2x40G Uplink, K-12 Edition
Quantity
Couldn't load pickup availability
- 24 ports total including 16x UPOE and 8x 1/2.5/5/10GBase-T multi-gigabit interfaces
- 2x 40 Gigabit Ethernet uplink ports
- Switching capacity up to 352 Gbps; 672 Gbps with stacking
- Supports Layer 2/3 protocols including OSPFv3, EIGRP, and RIPng
- Jumbo frame support up to 9198 bytes and 32,000 MAC address entries
- Advanced features: MACsec encryption, Cisco Trust Anchor, StackWise-320
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High multi-gigabit and UPOE port density with 722W PoE budget supports next-gen access points and IoT devices
- Robust Layer 3 routing and network automation capability ideal for scalable and secure enterprise or educational deployments
- TAA compliance and limited lifetime hardware warranty provide peace of mind for regulated and long-term installations
Product Overview
The Cisco Catalyst 9300L 24-Port Switch (C9300L-24UXG2Q-EDU) delivers stackable Layer 3 managed switching with up to 672 Gbps stacking capacity. It features 16 UPOE ports, 8 multi-gigabit ports and 2x40G uplinks for high-density environments. The platform supports advanced routing protocols like OSPFv3 and RIPng, and offers automation and visibility through gRPC, NETCONF, and RESTCONF, backed by secure management and MACsec encryption. Designed for educational environments, it boasts a 722W PoE budget, optional power redundancy, and Environmental hardening for reliable operation. Lifetime warranty and TAA compliance round out its robust offering.
Specifications
Primary Information
UNSPSC Code
| UNSPSC Code | 43222612 |
Service&Support
| Service & Support Type | Enhanced Limited Lifetime hardware Warranty |
Interfaces / Ports
| Interfaces | Multigigabit PORT(10G/5G/2.5G/1G/100M), 1G PORT(1G/100M/10M), 40G fixed uplinks |
Special Feature
| COO | CHINA / MEXICO |
| TAA compliance | Yes |
| Min Operating Temperature | -5 celsius |
| Min Storage Temperature | -40 celsius |
| Max Storage Temperature | 70 celsius |
| RoHS | Y |
Dimensions&Miscellaneous
| Width | 44.5 Cm |
| Depth | 40.9 Cm |
| Height | 4.4 Cm |
| Weight | 7.26 Kg |
Network
| Power Over Ethernet (PoE) Support | yes |
| PoE Power Consumption | 722 |
| MAC Address Table Size | 32000 |
| Jumbo Frame Support | 9198 bytes |
| Remote Management Protocol | DHCP; Syslog; SNMP |
| Routing Protocol | RIPv1, RIPv2,OSPFv3 |
| Encryption Algorithm | AES |
| Interfaces | Multigigabit PORT(10G/5G/2.5G/1G/100M), 1G PORT(1G/100M/10M), 40G fixed uplinks |
