Cisco Catalyst 9300L 48-Port Full PoE+ Switch, 4x10G Uplink (C9300L-48PF-4X-EDU)

VENDOR: CISCO Mfg Part#: C9300L-48PF-4X-EDU UPC#: 889728257763
  • The Cisco Catalyst 9300L (C9300L-48PF-4X-EDU) is a high-performance, full PoE+ switch designed for scalable enterprise access with the power of StackWise-320 technology. Delivering up to 890W of PoE+ power across 48 ports and supporting 4x10G SFP+ uplinks, this managed layer 3 switch integrates security, speed, and stackable architecture for resilient campus deployments. Ideal for education and enterprise segments.
1 1

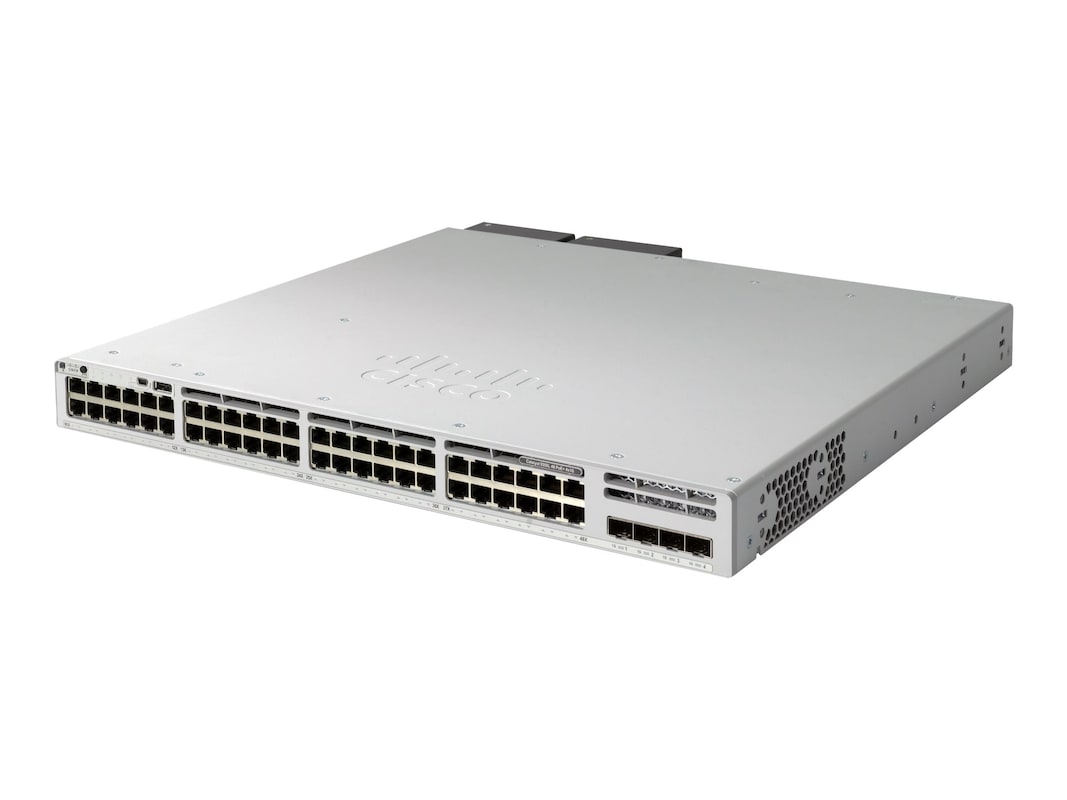

Photo is for illustration purposes only. Actual product may be different.
$9,063.39
$9,063.39
Sale Sold out
MSRP: $13,183.11
Shipping calculated at checkout.
  • 48 x 10/100/1000 PoE+ ports with a total PoE budget of 890W
  • 4 x 10 Gigabit SFP+ uplink ports for high-speed connectivity
  • Switching capacity up to 496 Gbps and forwarding up to 369.05 Mpps in stack mode
  • Advanced Layer 3 routing protocols support including OSPF, BGP, and EIGRP
  • Robust enterprise security features like MACsec encryption, Secure Boot, and Trust Anchor
  • High-capacity device with 32,000 MAC entries, support for 4094 VLANs, and 1000 SVIs
View full details

Key Benefits

Eye-Insights
  • Designed for enterprise scalability with StackWise-320 technology and powerful Layer 3 capabilities
  • Delivers robust PoE+ power (890W) across 48 ports, ideal for modern, converged networks
  • Built for security-focused environments with MACsec encryption, hardware trust module, and secure boot options

Product Overview

The Cisco Catalyst 9300L 48-Port Full PoE+ Switch (C9300L-48PF-4X-EDU) is a stackable Layer 3 enterprise switch offering 48 x 10/100/1000 PoE+ ports with an 890W PoE budget and 4 x 10G SFP+ uplinks. Powered by StackWise-320 and UADP 2.0, it delivers up to 496 Gbps switching capacity and 369.05 Mpps forwarding when stacked. Advanced routing protocols (OSPF, BGP, EIGRP), 802.1x authentication, and security features like MACsec, Secure Boot, and Cisco Trust Anchor ensure robust network protection. Remote management via SNMP, RESTCONF, and CLI, along with support for redundant hot-swappable power, makes this switch ideal for scalable deployments in academic and commercial environments.

Specifications

Primary Information
Network Device Type Switch
Model C9300L-48PF-4X-EDU
Data Transfer Rate 1 Gbps
Networking / Ports Qty 52
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Power / Device Type Power Supply
Max Power Consumption 1100 Watt
Power / Voltage Required 100 to 240 VAC
MTBF 298880 Hours

UNSPSC Code
UNSPSC Code 43222612

Network
Interfaces 48 port PoE+,4x10G Uplink

Service&Support
Service & Support Type Limited Lifetime hardware Warranty

Special Feature
COO CHINA / MEXICO / MEXICO
TAA compliance Yes
Min Operating Temperature -5 Celsius
Max Operating Temperature 45 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y

Interfaces / Ports
Interfaces 48 port PoE+,4x10G Uplink

Dimensions&Miscellaneous
Width 44.5 Cm
Depth 40.9 Cm
Height 4.4 Cm
Weight 7.04 Kg
