Cisco Catalyst 9300L 48-Port Full PoE+ Switch with 4x1G Uplink

VENDOR: CISCO Mfg Part#: C9300L-48PF-4G-EDU
  • The Cisco Catalyst 9300L is a next-generation 48-port managed switch, delivering full PoE+ support and four 1GbE uplinks, ideal for academic and enterprise networks. With robust Layer 3 routing, high availability features, and a powerful PoE budget, this rack-mountable switch optimizes network performance and scale.
1 1

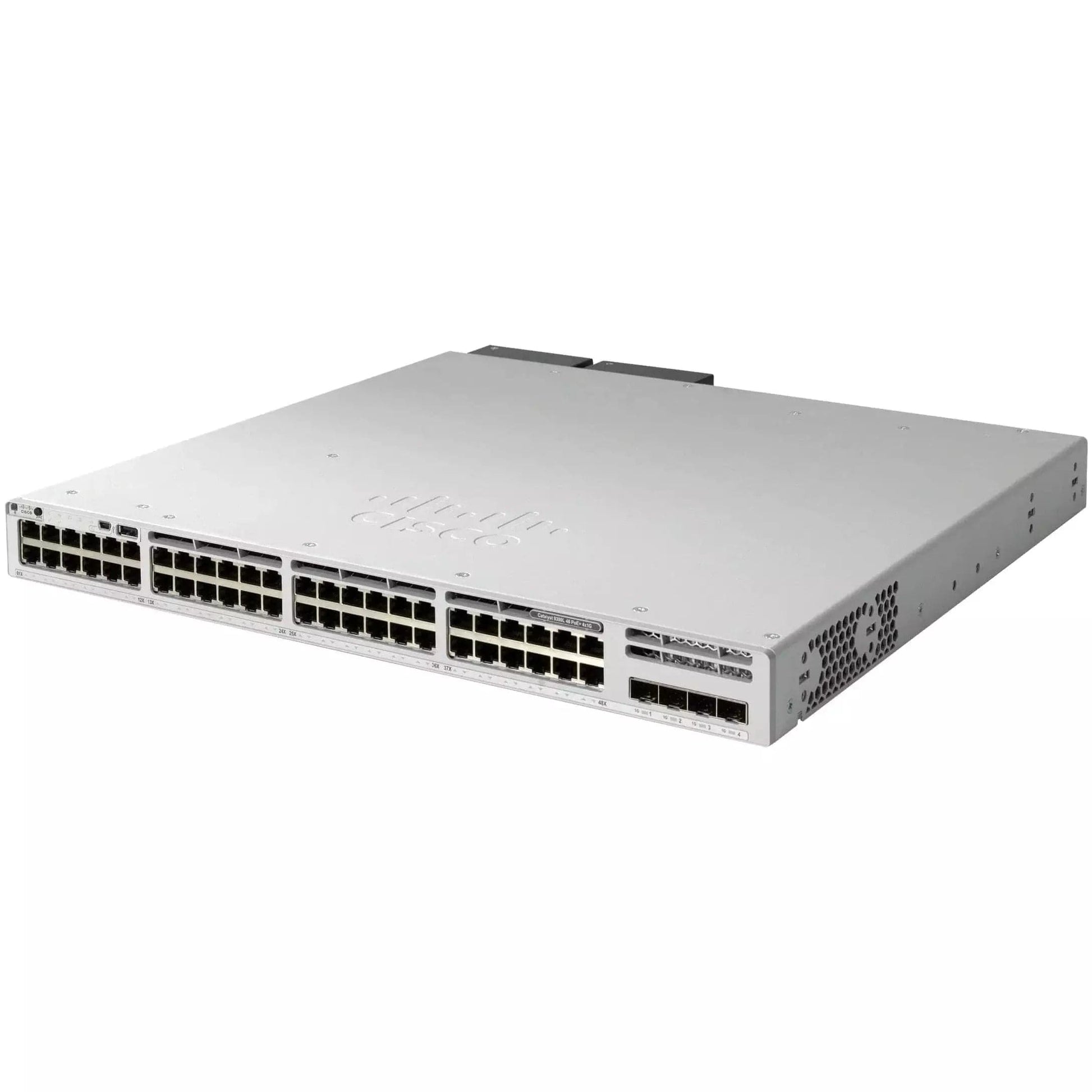

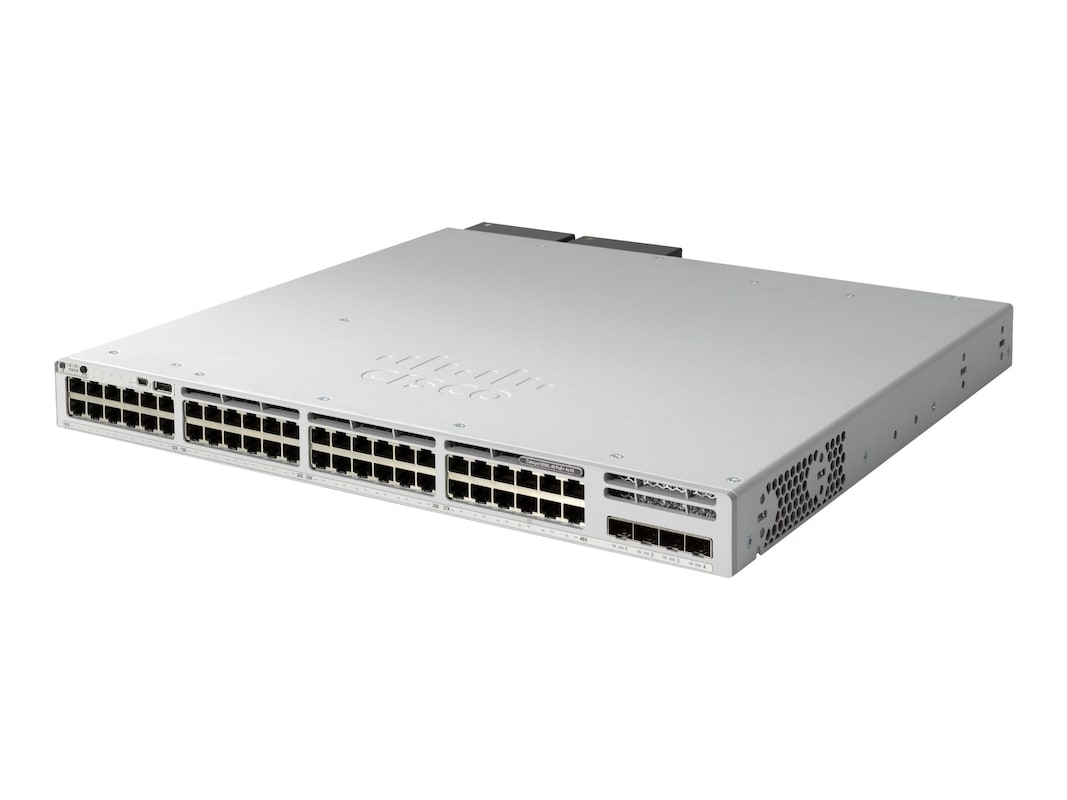

Photo is for illustration purposes only. Actual product may be different.
$7,687.17
$7,687.17
Sale Sold out
MSRP: $11,181.35
Shipping calculated at checkout.
  • 48 x 10/100/1000 PoE+ ports with 890W PoE budget
  • 4 x 1 Gigabit Ethernet SFP+ uplinks
  • Layer 3 managed switch with support for OSPF, BGP-4, MPLS, and more
  • High switching capacity: up to 496 Gbps with stacking
  • Robust routing and policy support with 32,000 MAC entries and 4,094 VLANs
  • Advanced security with MACsec, 802.1x, and Cisco Trust Anchor module
View full details

Key Benefits

Eye-Insights
  • Delivers powerful Layer 3 performance with advanced routing protocols ideal for scalable enterprise networks
  • Supports high device density with 48 full PoE+ ports and a generous 890W power budget
  • Designed for operational reliability with hot-plug power redundancy and a high 303,660-hour MTBF

Product Overview

The Cisco Catalyst 9300L-48PF-4G-EDU is an advanced 48-port Layer 3 managed switch engineered to deliver outstanding performance, scalability, and power efficiency. It supports 48 x 10/100/1000 PoE+ ports and 4 x 1G SFP+ uplink interfaces, making it suitable for high-density deployments. With an 890W PoE budget and hot-pluggable power supply, it simplifies infrastructure design and increases uptime.

Ideal for enterprise-grade and academic environments, this model offers a switching capacity up to 496 Gbps and advanced features like OSPF, BGP-4, and MPLS routing. Security is reinforced with MACsec encryption, 802.1x support, and compliance with industry standards. Remote manageability and Cisco's proprietary technologies like StackWise-320 further enhance operational efficiency.

With a limited lifetime warranty, high MTBF of over 300,000 hours, and support for extended environmental ranges, the Catalyst 9300L is a reliable, future-ready solution for building scalable and secure networks.

Specifications

Primary Information
Network Device Type Switch
Form Factor 1RU
Data Transfer Rate 1 Gbps
Networking / Ports Qty Not Included
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Power / Voltage Required 100 to 240 VAC

Network
Interfaces 48-port 1G copper with fixed ;4x1G Uplink

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 48-port 1G copper with fixed ;4x1G Uplink

Dimensions&Miscellaneous
Width 44.5 Inch
Depth 40.9 Inch
Height 4.4 Inch

Special Feature
COO CHINA / MEXICO / MEXICO
TAA compliance Yes
