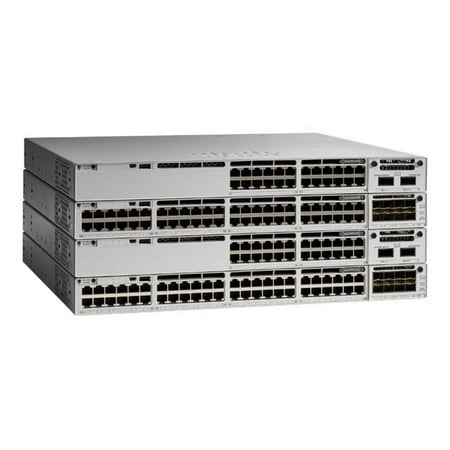

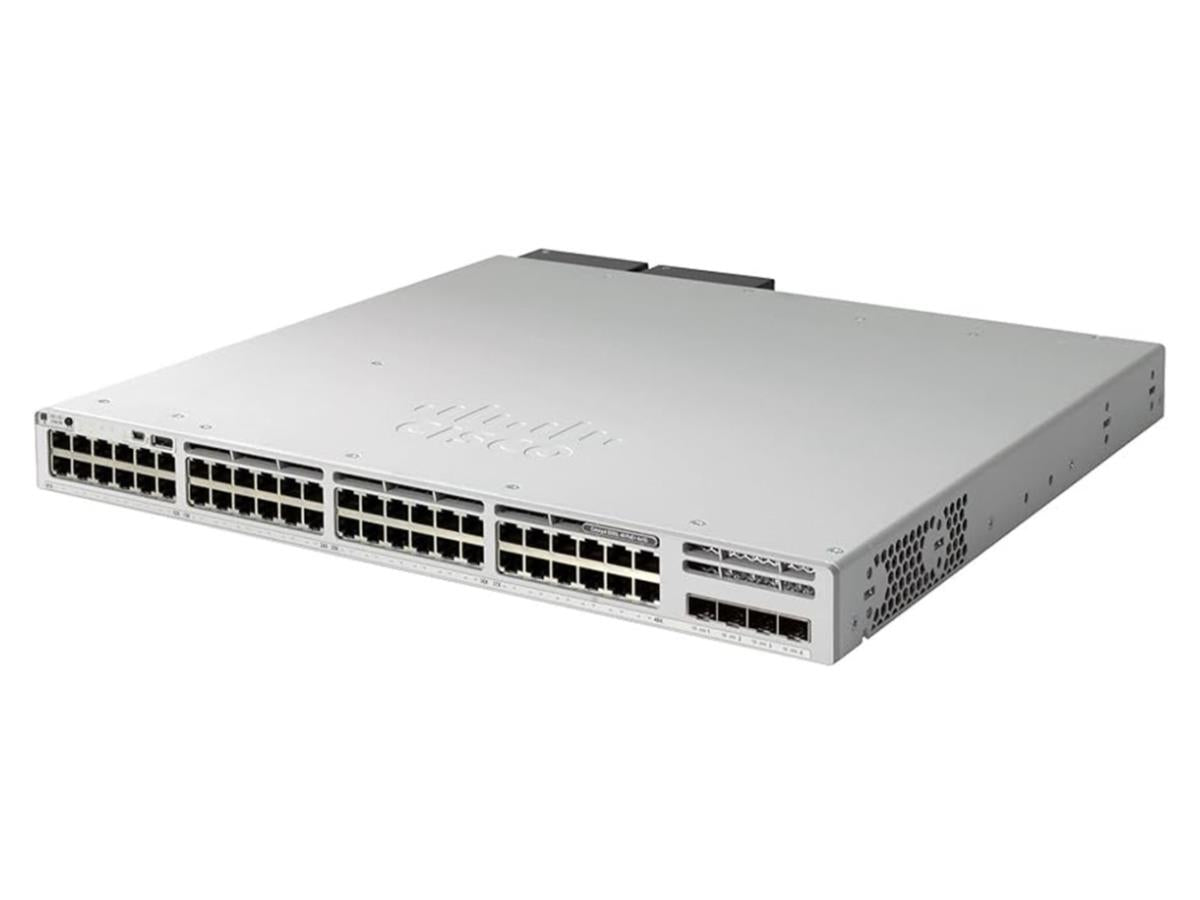

Cisco Catalyst 9300L 48p PoE+ Switch, 4x10G Uplink, Net Adv - C9300L-48P-4X-A

VENDOR: CISCO Mfg Part#: C9300L-48P-4X-A UPC#: 889728174640
  • The Cisco Catalyst 9300L-48P-4X-A switch is engineered for enterprise-class edge networking, providing 48 PoE+ ports and 4 fixed 10G SFP+ uplinks. With robust Layer 2/3 capabilities, 8 GB RAM, and enhanced lifetime hardware warranty, it’s ideal for scalable, secure deployments. Designed to support advanced routing protocols like RIPng and strong encryption using AES-256, this switch meets demanding business networking needs.
1 1
Photo is for illustration purposes only. Actual product may be different.
$8,145.92
$8,145.92
Sale Sold out
MSRP: $11,848.61
Shipping calculated at checkout.
  • 48 PoE+ ports and 4x 10G/1G fixed uplinks for scalable connectivity
  • 8 GB of RAM and 16 GB flash memory to support large routing tables and configurations
  • Support for Layer 2 and Layer 3 switching, including RIPv1, RIPv2, and RIPng
  • High data throughput with 10 Gbps interface and 9198-byte jumbo frame support
  • Secure data handling using 256-bit AES encryption
  • Robust remote management via SNMP, RMON, and Syslog
View full details

Key Benefits

Eye-Insights
  • Gigabit PoE+ switching with 715W power budget enables direct power to multiple edge devices
  • Built-in 10G SFP+ uplinks ensure high-speed aggregation or uplink options without additional modules
  • Enhanced Limited Lifetime Warranty and TAA compliance provide peace of mind and eligibility for federal procurements

Product Overview

The Cisco Catalyst 9300L-48P-4X-A is a next-generation enterprise-class switch tailored for intelligent and secure campus deployments. Designed to deliver high performance and scalability, it features 48 PoE+ ports and four 10G/1G SFP+ uplinks. With a full 715W PoE+ budget and jumbo frame support up to 9198 bytes, this switch efficiently supports high-bandwidth traffic across connected devices.

Security is enhanced with 256-bit AES encryption, flexible routing with RIPv1, RIPv2, and RIPng, and management via SNMP, RMON, and Syslog. With 8 GB RAM, 16 GB flash memory, and capacity for 32,000 MAC addresses, the switch ensures sufficient resources for demanding operations. Its high MTBF of 309,020 hours highlights its reliability in mission-critical environments.

The device adheres to IEEE 802.1p/s/w standards, is RoHS and TAA compliant, and includes an enhanced limited lifetime warranty, making it suitable for both government and enterprise IT infrastructures.

Specifications

Primary Information
Network Device Type Switch
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Model C9300L-48P-4X-A
Connectivity Technology Wired
Status Indicators LED
Networking Compliant Standards 802.1p, 802.1s, 802.1w
Media Layer Supported Layer 2, Layer 3
Power / Device Type Power Supply
Uplink Port 4
Power / Provided (W) 715 Watt
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 309020 hours

Network
Interfaces 48 port PoE+, 4x 10G/1G fixed uplinks
Power Over Ethernet (PoE) Support Y
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; RMON; SNMP
Routing Protocol RIPv1, RIPv2, RIPng
Encryption Algorithm AES (256-bit)
SFP+ Ports 4

Special Feature
COO BRAZIL / CHINA / MEXICO / VIET NAM
TAA compliance Yes
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

Interfaces / Ports
Interfaces 48 port PoE+, 4x 10G/1G fixed uplinks
SFP+ Ports 4

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 16.1 Inch
Height 1.73 Inch
Weight 7.03 Kg

UNSPSC Code
UNSPSC Code 43222612
