Cisco Catalyst 9300L-48PF-4G-E 48-Port Full PoE+ Network Switch

VENDOR: CISCO Mfg Part#: C9300L-48PF-4G-E
  • The Cisco Catalyst 9300L-48PF-4G-E delivers managed, stackable Layer 3 networking with 48 full PoE+ ports and four 1G SFP uplinks, ideal for scalable enterprise environments. It supports up to 890W of PoE budget, advanced routing protocols, and robust security features such as MACsec and secure boot. Built for high-density deployments with switching capacity up to 496 Gbps when stacked, this switch combines power and versatility in a rack-mountable design.
1 1

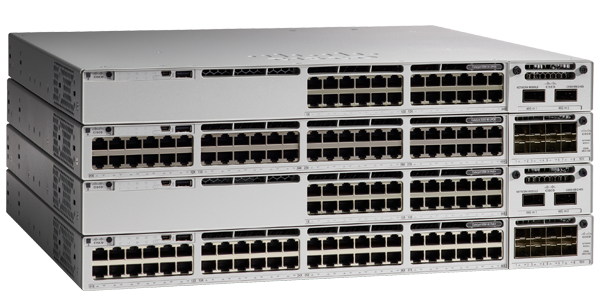

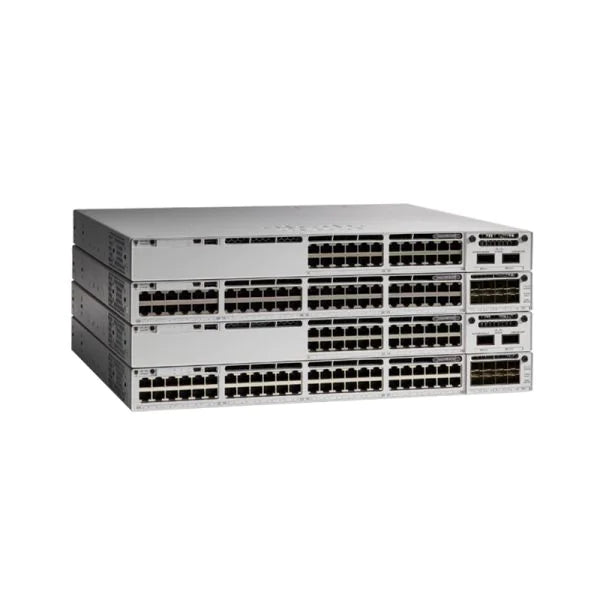

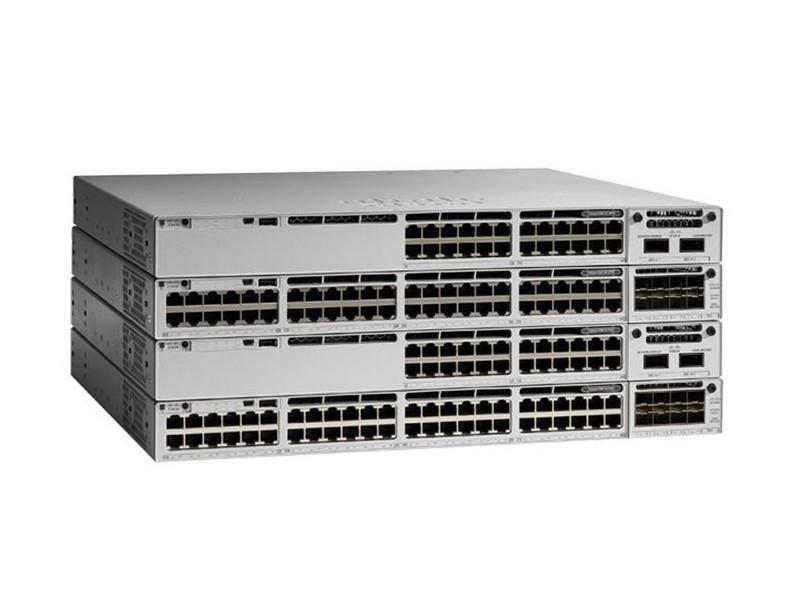

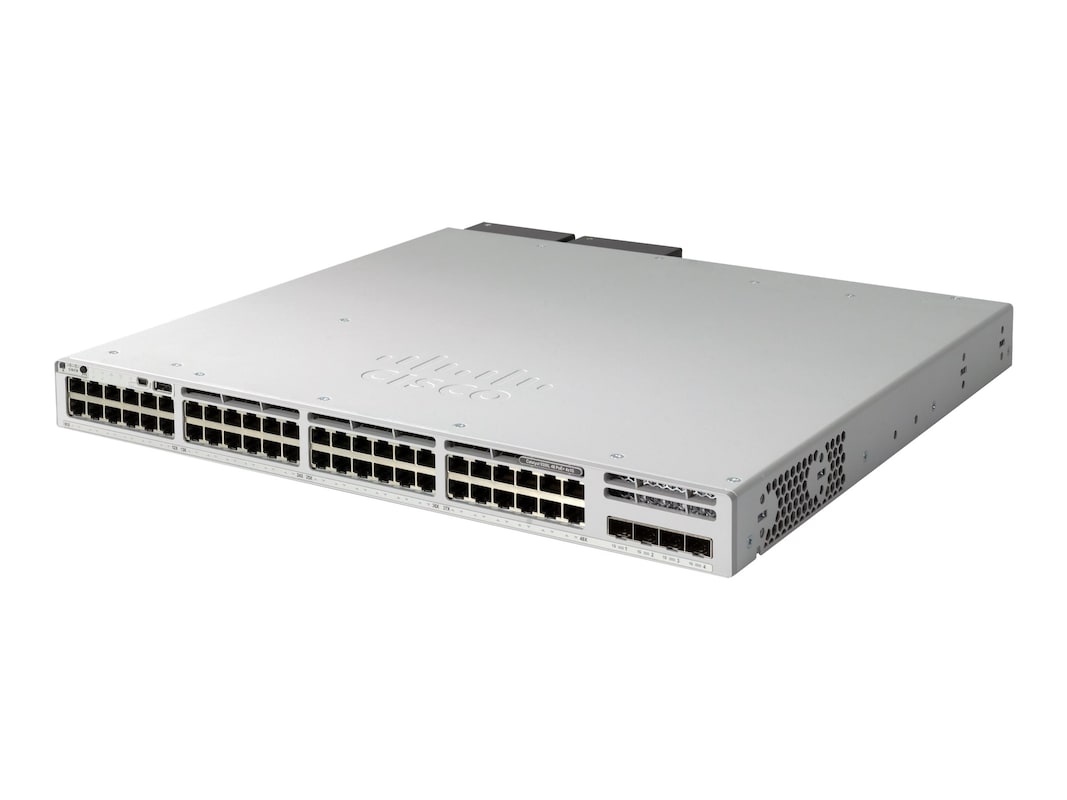

Photo is for illustration purposes only. Actual product may be different.
$11,111.79
$11,111.79
Sale Sold out
MSRP: $11,181.35
Shipping calculated at checkout.
  • 48 x 10/100/1000 PoE+ ports and 4 x 1G SFP uplink interfaces
  • PoE+ support with 890W total power budget
  • Layer 3 managed, stackable switch with up to 496 Gbps switching capacity
  • Supports advanced routing protocols like OSPF, BGP-4, IS-IS, RIP, MPLS
  • Advanced security features including MACsec, secure boot, and ACLs
  • Remote management via SNMP, CLI, NETCONF, and RESTCONF
View full details

Key Benefits

Eye-Insights
  • Offers high port density with full PoE+ support, powering edge devices without external power supplies
  • Future-ready with robust Layer 3 routing, VLANs, and stackable bandwidth expansion up to 496 Gbps
  • Enhanced security and compliance with MACsec encryption, secure boot, and TAA certification

Product Overview

The Cisco Catalyst 9300L-48PF-4G-E is a powerful enterprise-grade Layer 3 managed switch designed for high-performance, secure, and scalable network access. Featuring 48 Gigabit Ethernet PoE+ ports and four 1-Gigabit SFP uplinks, it supports a variety of advanced routing protocols including OSPF, BGP-4, IS-IS, and MPLS, as well as policy-based routing and virtualization features like VRF. With a PoE budget of 890W, it is built to support devices such as IP phones, cameras, and wireless access points without requiring additional power infrastructure. Its stackable architecture allows up to 496 Gbps in switching capacity and 369.05 Mpps forwarding when used with Cisco StackWise-320 technology, making it an ideal solution for high-availability campus networks and branch offices.

Advanced management and automation capabilities include support for SNMP (v1, v2c, v3), CLI, NETCONF, and RESTCONF. The switch also features robust security with MACsec encryption, secure boot, FHS, and Cisco Trust Anchor module. It comes with 8 GB RAM and 16 GB flash storage, and it’s engineered for long-term lifecycle with a limited lifetime warranty and optional power redundancy. Environmental resilience is ensured through wide operational temperature and humidity ranges. Certified across multiple international standards and compliant with TAA, the Catalyst 9300L is a reliable cornerstone for modern IT infrastructures.

Specifications

Primary Information
Network Device Type Switch
Model C9300L-48PF-4G-E
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,802.1p,IEEE 802.3bt
Media Layer Supported Layer 2 and Layer 3
Power / Device Type Power Supply
Uplink Port 4x1G SFP uplinks
Power / Provided (W) 1100 Watt
Power / Voltage Required 115 to 240 VAC
MTBF 303660 hours
Features Flexible and dense uplink offerings; Mixed Stacking with Backward Compatibility ; Stack Power with Backward Compatibility; Secure Tunnel connectivity; Enhanced Application Hosting

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+
SFP Ports 4

Service&Support
Service & Support Type Enhanced limited lifetime hardware warranty

Special Feature
COO CHINA / MEXICO / MEXICO
TAA compliance Yes
Min Operating Temperature -5 celsius
Min Storage Temperature -40 celsius
Max Storage Temperature 70 celsius
RoHS Y

Network
Power Over Ethernet (PoE) Support YES
PoE Power Consumption 48 x 30W per port
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; Syslog; IPv4; IPv6; SNMP
Routing Protocol RIPv1, RIPv2,OSPFv3
SFP Ports 4
Interfaces 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+

Dimensions&Miscellaneous
Width 44.5 Cm
Depth 40.9 Cm
Height 4.4 Cm
Weight 7.03 Kg
