Cisco Catalyst 9300L Mini 48-Port Switch with 4x25G Uplink

VENDOR: CISCO Mfg Part#: C9300LM-48UX-4Y-E
1 3

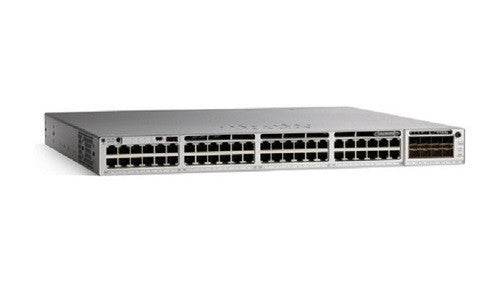

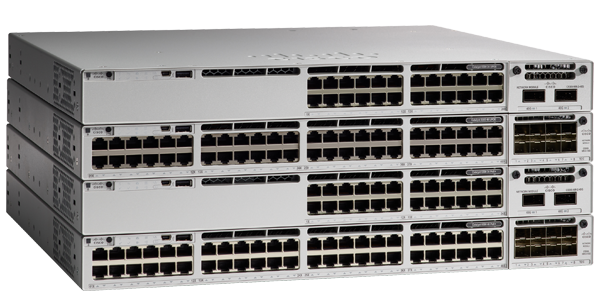

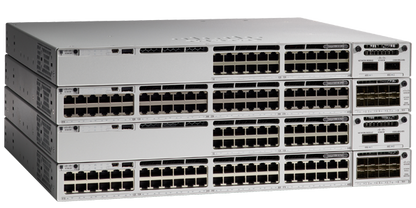

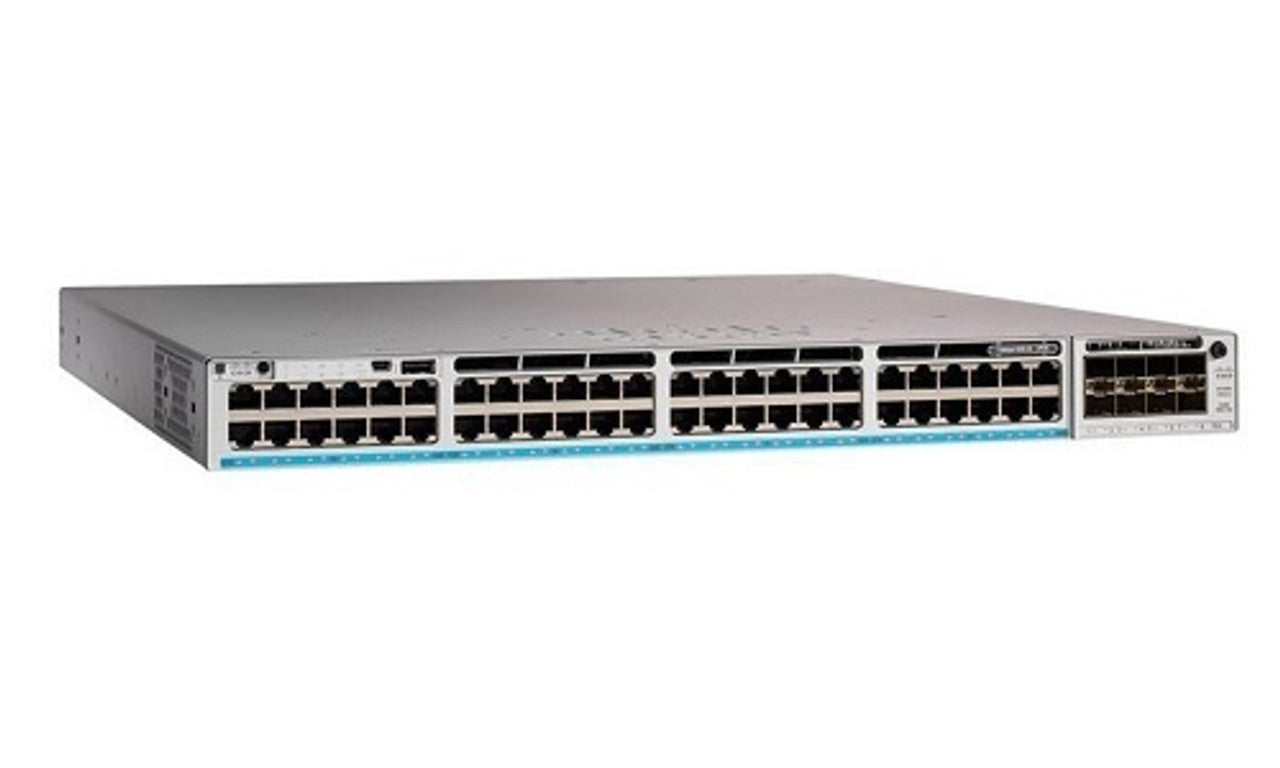

Photo is for illustration purposes only. Actual product may be different.
$11,274.74
$11,274.74
Sale Sold out
MSRP: $16,536.27
Shipping calculated at checkout.
  • 48 multi-gigabit Ethernet ports for high-density connectivity
  • 4x 25G uplink ports for high-throughput aggregation
  • 8GB RAM and 16GB flash memory for efficient network handling
  • Support for Layer 2 and Layer 3 routing protocols including RIPv2, RIPng, and OSPFv3
  • Compliance with IEEE 802.1s/w/x/p and 802.3bt standards
  • TAA compliant and includes a limited lifetime hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for enterprise environments requiring high port density and fast uplinks
  • Supports advanced routing protocols, enhancing network flexibility and scalability
  • Built with Cisco reliability and a limited lifetime warranty for long-term deployment confidence

Product Overview

The Cisco Catalyst 9300L Mini (C9300LM-48UX-4Y-E) is a compact enterprise-class switch with 48 multi-gigabit Ethernet ports and four 25G uplinks, designed for performance-intensive environments. With 8GB RAM, 16GB flash memory, and support for 32,000 MAC addresses, it ensures high-speed access and efficient network routing. Key features include support for L2/L3 protocols like RIPv2, RIPng, OSPFv3, and compliance with IEEE 802.1s/w/x/p and 802.3bt. TAA compliance and a limited lifetime hardware warranty reinforce its suitability for government and enterprise infrastructures.

Specifications

Product Overview
Product Type Managed Switch
Model Cisco Catalyst 9300L Mini C9300LM-48UX-4Y-E
Series Catalyst 9300 Series
Enclosure Type Desktop / Rack-mountable
Form Factor 1U
Weight 7.52 lbs (3.41 kg)
Power Consumption (Max) 190W
Power Supply Type Internal AC
Redundant Power Optional

Wireless Features
Wireless Controller Integration Yes, Embedded Wireless Controller (optional license required)
Access Point Management Up to 200 APs supported (with appropriate licensing)

Compliance & Origin
Country of Origin CHINA / UNITED STATES
TAA Compliance Yes
Certifications UL, CSA, CE, RoHS, WEEE, FCC Class A
Environmental Standards ENERGY STAR, EPEAT Bronze

Advanced Security Features
Access Control 802.1x, Port-based/MAC-based access control
MACsec Encryption Yes, IEEE 802.1AE
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Control Plane Policing (CoPP) Yes
Private VLAN Yes
Routing Protocols OSPF, EIGRP, BGP, RIPv2, RIPng

Interfaces
Total Ports 52
Downlink Ports 48 x Multi-Gigabit Ethernet (RJ-45)
Uplink Ports 4 x 25G SFP28
Port Speed 100M/1G/2.5G/5G/10G for Multi-Gigabit, 25G for uplinks
Console Ports 1 x USB Type B, 1 x RJ-45
Management Ports 1 x 10/100/1000 Ethernet
Stacking Support Yes, StackWise-320
MAC Address Table Size 32,000 entries
Forwarding Bandwidth 320 Gbps
Switching Capacity 640 Gbps
Throughput 476.19 Mpps

Physical & Environmental
Dimensions (W x D x H) 17.5 x 17.3 x 1.73 in (44.5 x 43.9 x 4.4 cm)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 90% (non-condensing)
Storage Humidity 5% to 95%
Cooling Type Fanless or internal fans (model dependent)
Acoustic Noise Typically <48 dB

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, SNMP, Web UI
Software Image Network Essentials
License Type Smart Licensing Enabled
Cloud Features Cisco DNA ready, Plug and Play (PnP), Encrypted traffic analytics
Included Software Features Routing, Switching, QoS, Cisco TrustSec, Flexible NetFlow
