Cisco Catalyst 9300L Mini 48p UPoE NW-A, 4x 25G Uplink Switch

VENDOR: CISCO Mfg Part#: C9300LM-48U-4Y-A
1 2

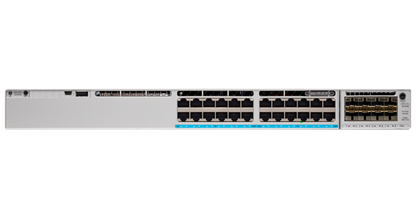

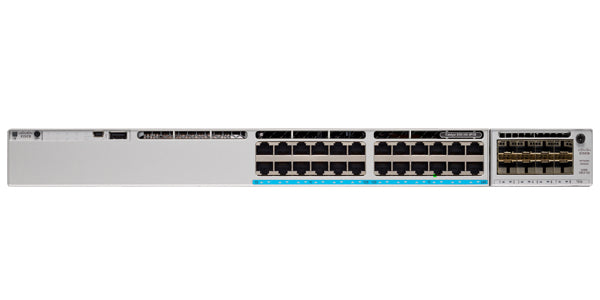

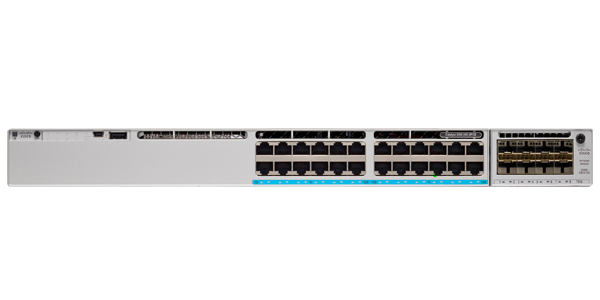

Photo is for illustration purposes only. Actual product may be different.
$9,584.97
$9,584.97
Sale Sold out
MSRP: $14,057.94
Shipping calculated at checkout.
  • 48-port 1G copper with Universal Power over Ethernet (UPOE) support
  • Four 25Gbps uplink ports for high-speed data transfer
  • 1RU form factor suitable for space-optimized applications
  • Includes 8GB RAM and 16GB Flash Memory for software operations
  • 100Vac–240Vac power input range for worldwide compatibility
  • TAA-compliant, suitable for government and regulated markets

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables high-density edge connectivity with 48 UPOE-capable ports, reducing deployment cost and complexity.
  • Delivers high-bandwidth uplink capacity via four integrated 25Gbps ports, ideal for aggregation and data-intensive environments.
  • Offers enterprise-grade performance and investment protection with TAA compliance and Limited Lifetime Hardware Warranty.

Product Overview

The Cisco Catalyst 9300L Mini (C9300LM-48U-4Y-A) is built for enterprise scalability, delivering 48 UPOE-enabled 1G copper ports in a compact 1RU rack-mounted unit. It features 4 x 25Gbps uplinks to support robust backbone aggregation and offers 8GB RAM with 16GB flash memory for software reliability. TAA compliance enhances its appeal for federal and institutional deployments, and USB and RJ-45 interfaces simplify device management. Ideal for powering multiple edge devices while enabling high-speed connections, this switch supports scalable, power-efficient networking for demanding enterprise environments.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Series Cisco Catalyst 9300L
Model C9300LM-48U-4Y-A
Form Factor Rack-mountable
Rack Units 1U
Weight 17.6 lbs (8.0 kg)
Power Supply Type Internal
Power Consumption (Maximum) 1440W with all ports delivering UPOE
Power over Ethernet (PoE) Yes
PoE Standard UPOE (IEEE 802.3bt)
PoE Budget 1440W
Flash Memory 16 GB
Memory (RAM) 8 GB

Wireless Features
Wireless Support No

Compliance & Origin
Country of Origin CHINA / UNITED STATES
TAA Compliant Yes
Certifications UL, CSA, CE, FCC Part 15 Class A, RoHS, WEEE
Environmental Standards RoHS compliant

Advanced Security Features
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
MACsec Encryption Yes (hardware-supported)
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes

Interfaces
Total Ethernet Ports 48
Downlink Ports 48 x 10/100/1000 Mbps Ethernet with UPOE
Uplink Ports 4 x 25Gbps SFP28
Console Ports 1 x RJ-45, 1 x USB mini-B
USB Ports 1 x USB Type-A
Data Transfer Rate 25 Gbps (uplinks)
Forwarding Bandwidth 184 Gbps
Switching Capacity 368 Gbps

Physical & Environmental
Dimensions (W x D x H) 17.5 x 17.5 x 1.73 in (44.5 x 44.5 x 4.4 cm)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 90%, non-condensing
Storage Humidity 5% to 95%, non-condensing
Cooling Fanless or with internal fans depending on model and PoE load

Cloud Management & Licensing
Management Interface Cisco IOS XE, CLI, web UI, SNMP
Cloud Management Cisco DNA Center enabled
Licensing Model Cisco DNA and Network Essentials/Advantage Subscription
Included License Network Advantage (NW-A)
