Cisco Catalyst 9300X 12-port 25/10G SFP+ Switch, Remanufactured

VENDOR: CISCO Mfg Part#: C9300X-12Y-A-RF
1 3

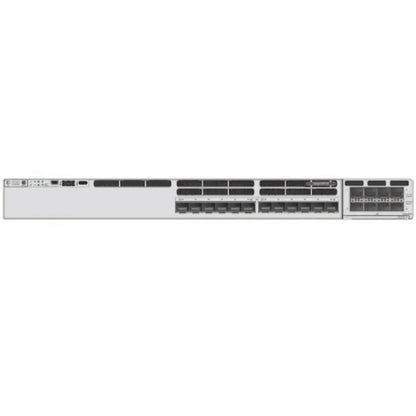

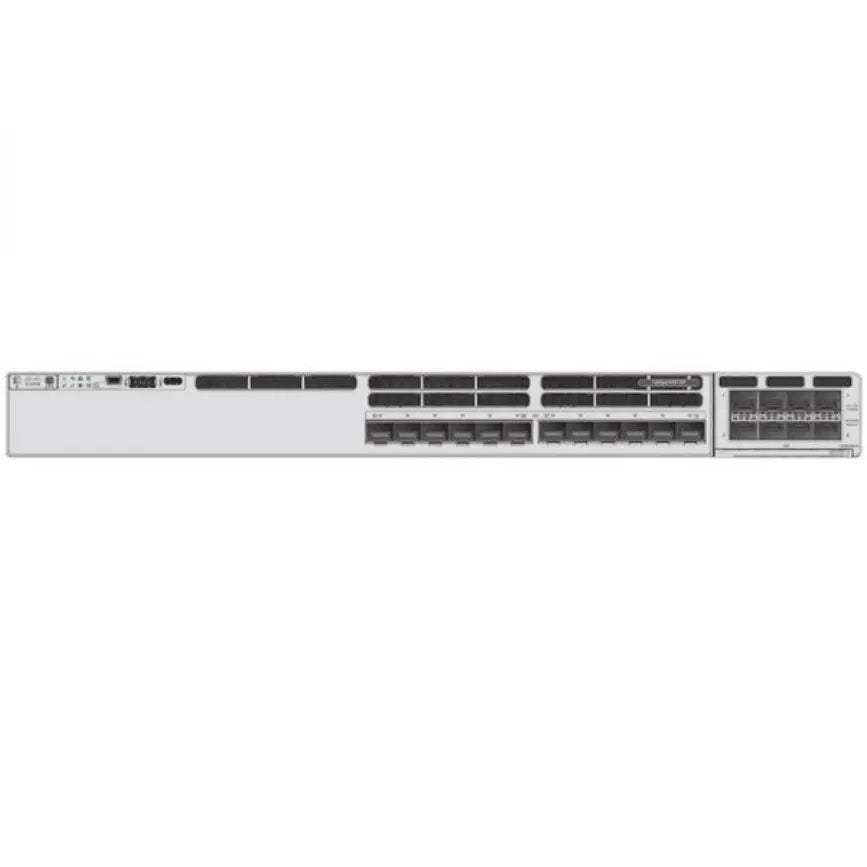

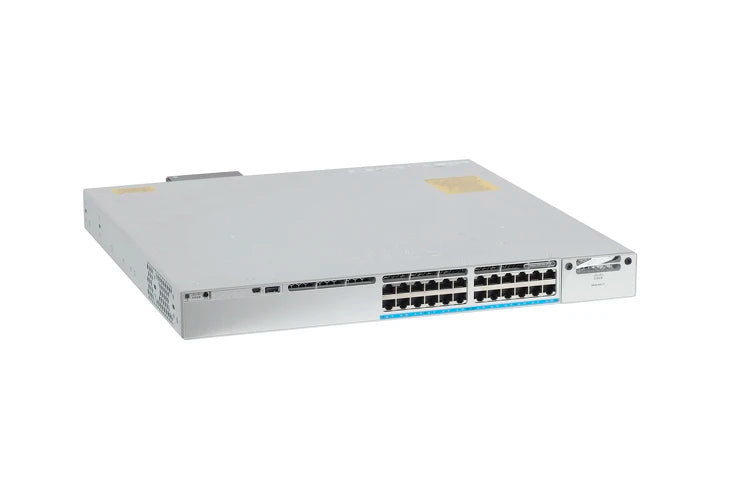

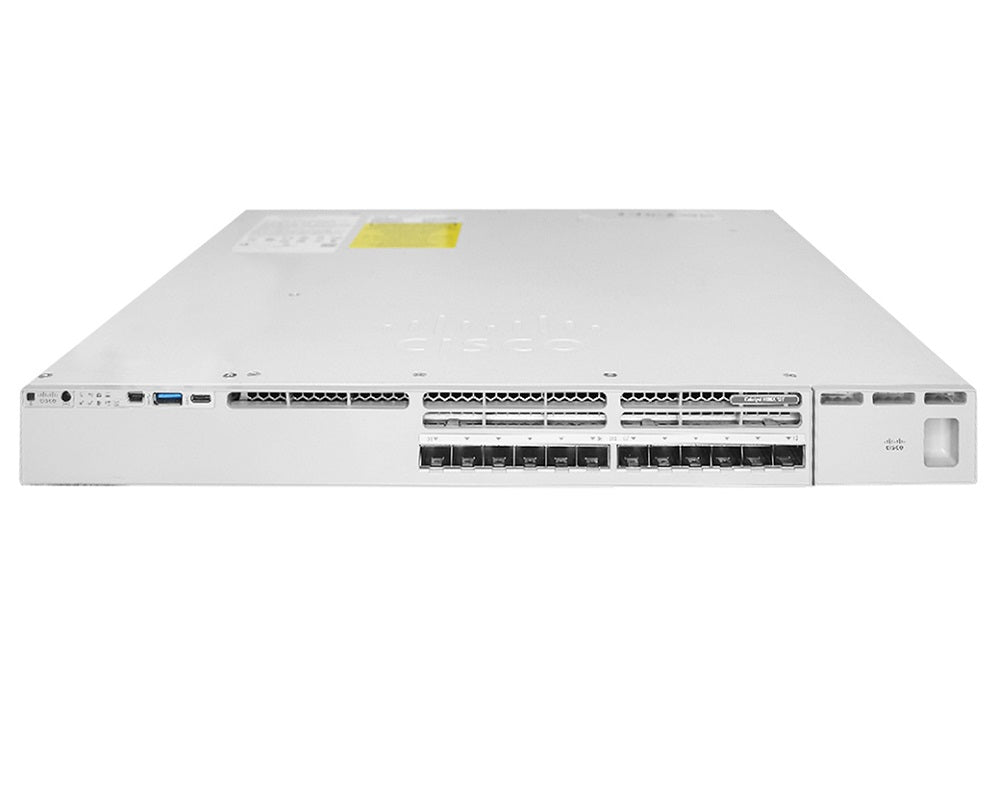

Photo is for illustration purposes only. Actual product may be different.
$10,968.43
$10,968.43
Sale Sold out
MSRP: $16,087.04
Shipping calculated at checkout.
  • 12-port SFP28 interfaces with multi-rate support (1G, 10G, 25G)
  • Layer 2 and Layer 3 media support with RIPv1, RIPv2, and RIPng routing
  • 16 GB RAM and 16 GB flash memory for enterprise-grade processing
  • AES 256-bit encryption for secure data handling
  • MAC address table supporting up to 32,000 entries
  • MTBF rating of 265,650 hours for long-term reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance connectivity with 25G-capable SFP28 ports ideal for high-throughput networking demands
  • Remanufactured quality with TAA compliance offers a cost-effective solution without compromising enterprise standards
  • Advanced feature set including Layer 3 routing and AES-256 encryption enables secure and scalable deployment

Product Overview

The Cisco Catalyst 9300X 12-port 25/10G SFP+ Switch is engineered for high-speed data environments, delivering wired connectivity at up to 25 Gbps. Built with 16 GB RAM and flash, it supports Layer 2 and 3 protocols and advanced features like AES 256-bit encryption. Standards compliance (802.1p, 802.1s, 802.1w) and 32,000 MAC entries enable scalability. Environmental resistance from -40°C to 70°C makes it deployment-ready across diverse conditions. With TAA compliance and an MTBF of 265,650 hours, it combines performance and reliability in a remanufactured form factor.

Specifications

Product Overview
Product Type Managed Layer 2/3 Network Switch
Model C9300X-12Y
Form Factor Rack-mountable - 1U
Weight 6.8 kg
Power Requirements Power supply not included (modular, redundant supported)
MTBF 265650 hours
Connectivity Technology Wired
Flash Memory 16 GB
RAM 16 GB
Switching Capacity 480 Gbps
Forwarding Rate 357.14 Mpps

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL, CSA, CE, FCC Part 15 Class A

Advanced Security Features
Encryption Algorithm AES 256-bit
Access Control 802.1X authentication
MACsec Encryption Supported on all access and uplink ports
Control Plane Protection (CoPP) Yes
Secure Boot Yes
Trust Anchor Module (TAM) Yes

Interfaces
Total SFP28 Ports 12
Port Speeds Supported 1G / 10G / 25G
Interface Type 25G/10G/1G SFP28
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32,000 entries
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10-Gigabit Ethernet, 25-Gigabit Ethernet
Routing Protocols RIPv1, RIPv2, RIPng
Traffic Prioritization IEEE 802.1p QoS
Spanning Tree Protocols 802.1s (MSTP), 802.1w (RSTP)
Status Indicators Link/activity, system

Physical & Environmental
Width 17.5 inch (44.5 cm)
Depth 16.1 inch (40.9 cm)
Height 1.73 inch (4.4 cm)
Operating Temperature Range -5°C to 45°C
Storage Temperature Range -40°C to 70°C
Operating Humidity Range 5% to 90%, non-condensing
Non-operating Humidity 5% to 93%, non-condensing
Cooling Front-to-back airflow (variable speed fans)

Cloud Management & Licensing
Management Options Web GUI, Command Line Interface (CLI), Cisco DNA Center
Remote Management Protocols IPv4, IPv6, VLAN
License Type Cisco DNA Subscription License (required for advanced features)
Licensing Levels Network Essentials, Network Advantage, DNA Essentials, DNA Advantage
