Cisco Catalyst 9300X 24-Port mGig UPOE+ Switch (K12, C9300X-24HX-EDU)

VENDOR: CISCO Mfg Part#: C9300X-24HX-EDU
1 3
Photo is for illustration purposes only. Actual product may be different.
$10,458.28
$10,458.28
Sale Sold out
MSRP: $15,338.81
Shipping calculated at checkout.
  • 24 x 100/1000/2.5G/5G/10GBase-T UPOE+ ports with up to 90W per port
  • 1835W total PoE budget with 1100W internal hot-plug power supply
  • 880 Gbps switching capacity (1880 Gbps with stacking), 327.38 Mpps forwarding rate
  • Extensive protocol support including OSPF, BGP, EIGRP, and MPLS
  • Energy-efficient design with 80 PLUS Platinum certification
  • Advanced management: SNMPv3, NETCONF, RESTCONF, Cisco StackWise-1T support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-class multigigabit performance and PoE+ power ideal for high-density, connected campus environments
  • Future-proof scalability with stacking capacity up to 1.88 Tbps and support for 8-stack configurations
  • Industry-grade reliability and security with MACsec encryption, advanced routing protocols, and compliance with over 20 international standards

Product Overview

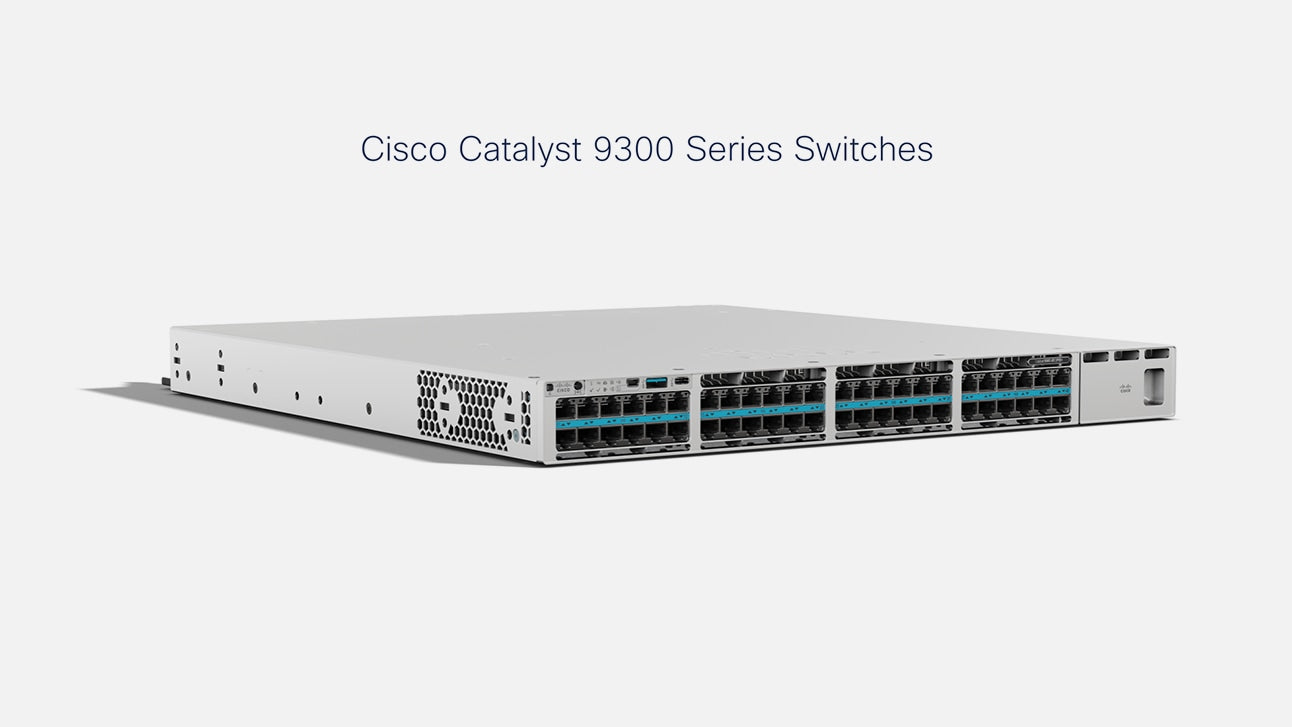

The Cisco Catalyst 9300X-24HX-EDU is a high-performance, stackable 24-port multigigabit Ethernet switch designed for K-12 and enterprise applications. With UPOE+ support up to 90W per port and a total PoE budget of 1835W, it efficiently powers access points and IoT devices. This Layer 3 switch delivers up to 1.88 Tbps of switching capacity with stacking and supports up to 8 units per stack via Cisco StackWise-1T technology. Advanced routing protocols, full Layer 3 capability, MACsec encryption, and management via SNMP, RESTCONF, and gRPC ensure secure and scalable operations. The internal 1100W hot-plug PSU and 80 PLUS Platinum certification optimize reliability and efficiency for high-density environments.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Form Factor Rack-mountable
Stacking Support Up to 8 units per stack
Switching Capacity (Standalone) 880 Gbps
Switching Capacity (Stacked) 1.88 Tbps
Forwarding Rate (Standalone) 327.38 Mpps
Forwarding Rate (Stacked) 1398.8 Mpps
RAM 16 GB
Flash Memory 16 GB
Internal Power Supply Hot-plug, 1100W
Power Requirements AC 115-240 V (50 - 60 Hz)
80 PLUS Certification 80 PLUS Platinum
MTBF 220,250 hours
Built-in Devices RFID tag

Advanced Security Features
MACsec Encryption Supported
IPSec VPN Support Yes
Authentication 802.1x
Encryption Algorithm 128-bit AES, 256-bit AES
Content Filtering & Analytics NBAR2
Control Plane Protection CoPP supported
Private VLAN Support Yes (PVLAN)

Physical & Environmental
Width 17.5 in
Depth 20.6 in
Height 1.7 in
Weight 13.78 lbs
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 90% RH (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 90% RH (non-condensing)

Interfaces
Total Ports 24
Port Type 100/1000/2.5G/5G/10GBase-T RJ-45 (UPOE+)
UPOE+ Support Yes, up to 90W per port
PoE Budget 1835 W
MAC Address Table Size 32,000 entries
Jumbo Frame Support 9198 bytes
USB Ports 1 x USB 2.0
Expansion Slots 1 (1 free)

Cloud Management & Licensing
Remote Management Protocols SNMPv1/v2c/v3, RMON1/2, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG
Zero Touch Provisioning (ZTP) Supported
Cloud Support Features Cisco DNA Center compatible
Management Platform Local GUI, CLI, and Cisco DNA Center
License Model Smart Licensing (DNA optional, Education pricing model)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications & Standards UL, FCC Part 15, EN 60950-1, ICES-003 Class A, RoHS, IEEE 802.x series, CISPR, EN 5503x series, KN32, KN35, etc.
Warranty Limited lifetime warranty with next business day hardware replacement
