Cisco Catalyst 9300X 24-Port SFP28 Modular Uplink Switch

VENDOR: CISCO Mfg Part#: C9300X-24Y-E UPC#: 889728362573
  • Catalyst 9300X switch features 24 high-speed 25G/10G/1G SFP28 ports, modular uplink flexibility, 16GB RAM, and is TAA-compliant. Designed for enterprise-grade Layer 2/3 switching, it delivers secure, scalable network performance with support for SNMP, OSPF, MACsec encryption, and a robust feature set. Includes a limited lifetime hardware warranty.
1 1

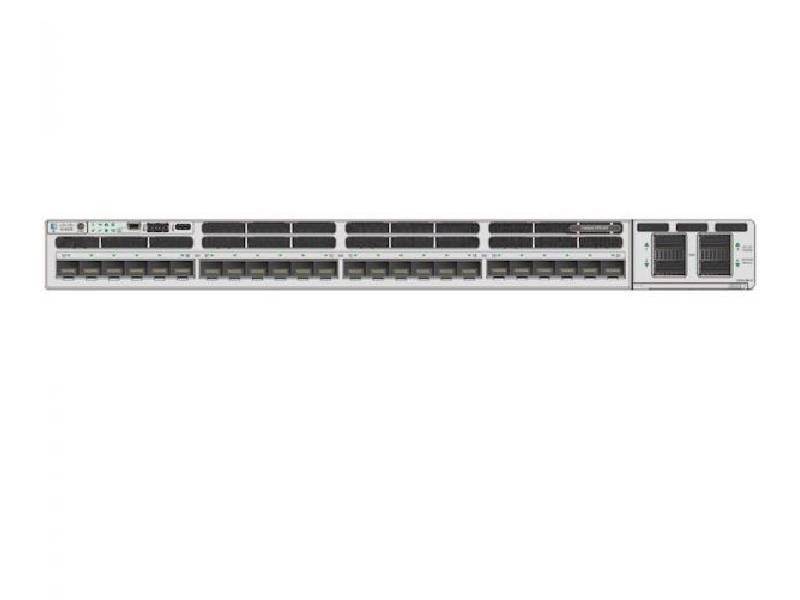

Photo is for illustration purposes only. Actual product may be different.
$21,841.94
$21,841.94
Sale Sold out
MSRP: $31,770.10
Shipping calculated at checkout.
  • 24x 25G/10G/1G SFP28 fiber ports with modular uplink support
  • 16GB RAM and 16GB flash memory for high-performance operations
  • Layer 2 and Layer 3 switching with support for RIPv2, RIPng, and OSPF
  • MACsec and AES encryption for secure data transmission
  • Managed via IPv4, IPv6, SNMP, Syslog, and DHCP protocols
  • Support for jumbo frames up to 9198 bytes and 32,000 MAC address entries
View full details

Key Benefits

Eye-Insights
  • Delivers flexible high-speed uplink and port density with 24 SFP28 ports and modular uplinks
  • Enterprise-grade security ensured via MACsec and AES encryption standards
  • Long service life and minimal downtime supported by MTBF of 249,350 hours and limited lifetime warranty

Product Overview

The Cisco Catalyst 9300X 24-Port SFP28 Modular Uplink Switch (model C9300X-24Y-E) is an enterprise-class Layer 2 and Layer 3 managed switch with twenty-four 25G/10G/1G SFP28 ports and modular uplinks for scalable high-density fiber connectivity. It supports dynamic routing via RIPv2, RIPng, and OSPF and provides secure encryption through MACsec and AES. Designed for physical resilience in a 1RU chassis, it features 715W power availability and delivers reliability with an MTBF of over 249,000 hours. Manageable via SNMP, IPv4/IPv6, Syslog, and DHCP, and equipped with 16GB RAM and 16GB flash, the switch supports jumbo frame sizes to 9198 bytes and a MAC table of 32,000 entries. TAA compliance and adherence to IEEE networking standards bolster its enterprise-readiness. With its extensive technical capabilities and Cisco’s Limited Lifetime hardware Warranty, the Catalyst 9300X is crafted for modern data centers, campus cores, and mission-critical enterprise networks.

Specifications

Primary Information
Network Device Type Switch
Model C9300X-24Y-E
Connectivity Technology Wired
Data Transfer Rate 25 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1D
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
Power / Provided (W) 715 Watt
Uplink Port Modular Uplinks
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 249350 hours

Interfaces / Ports
Interfaces 24-port 25G/10G/1G SFP28 with modular uplinks

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; RMON; SNMP
Routing Protocol RIPv1, RIPv2, RIPng
Encryption Algorithm AES (256-bit)
Interfaces 24-port 25G/10G/1G SFP28 with modular uplinks

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 17.6 Inch
Height 1.73 Inch
Weight 7.35 Kg

Special Feature
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO CHINA / MEXICO / UNITED STATES / CHINA / MEXICO / UNITED STATES
TAA compliance Yes
