Products Networking Network Cards & Adapters Cisco Catalyst 9400 48-Port...

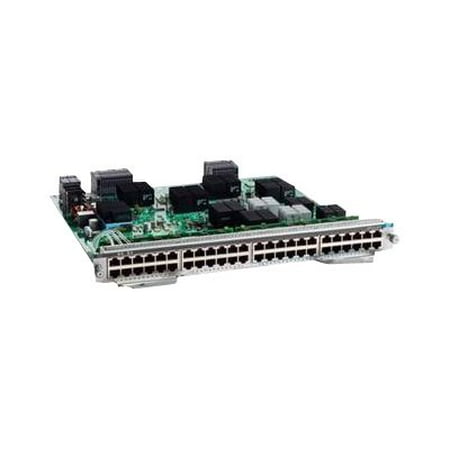

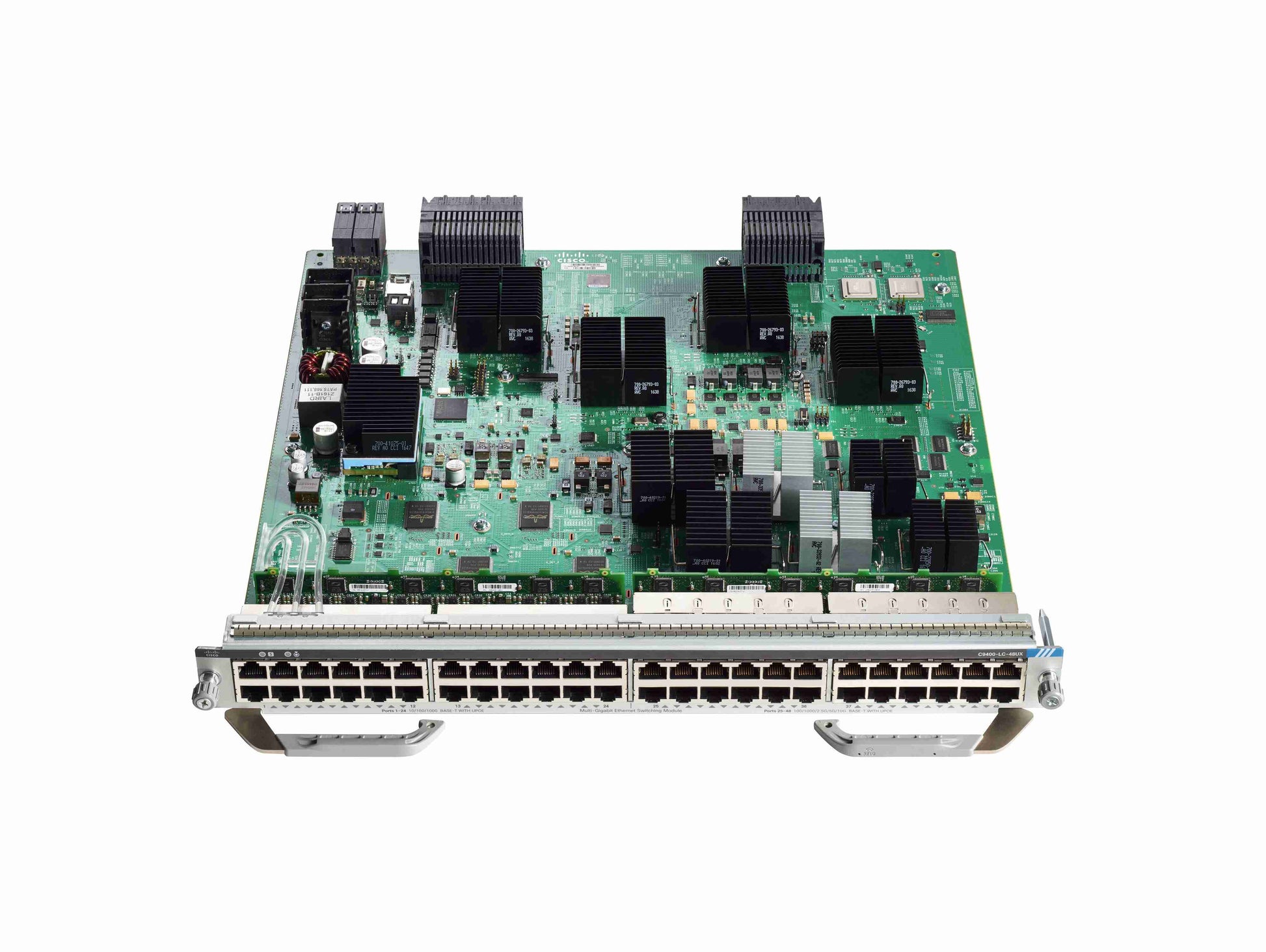

Cisco Catalyst 9400 48-Port UPOE Line Card - 24 mGig + 24 RJ-45

VENDOR: CISCO Mfg Part#: C9400-LC-48UX= UPC#: 889728044059
  • The Cisco Catalyst 9400 Series 48-Port UPOE Line Card with 24 Multigigabit ports and 24 standard RJ-45 ports supports high data throughput and power delivery. Designed for next-generation workspaces, it enables multigigabit speeds and up to 60W of power output per port using Cisco UPOE, efficiently supporting IP devices over existing cabling infrastructures.
1 1
Photo is for illustration purposes only. Actual product may be different.
$10,484.14
$10,484.14
Sale Sold out
MSRP: $15,249.65
Shipping calculated at checkout.
  • 48-port expansion module with 24 Multigigabit and 24 10/100/1000 RJ-45 ports
  • Supports speeds from 100 Mbps up to 10 Gbps with category 5e/6 cabling
  • Delivers up to 60W per port using Cisco UPOE for maximum device compatibility
  • Supports IEEE 802.3az Energy Efficient Ethernet for power savings
  • TAA compliant and RoHS-5 certified for environmental and regulatory adherence
  • Compatible with Cisco Catalyst 9400 Supervisor Engines (C9400-SUP-1, SUP-1XL)
View full details

Key Benefits

Eye-Insights
  • Enables multigigabit speeds over existing cabling, reducing upgrade costs
  • Up to 60W PoE per port allows powering high-demand devices without additional infrastructure
  • Backed by Cisco's enterprise-level reliability and energy efficiency for long-term ROI

Product Overview

The Cisco Catalyst 9400 Series 48-Port UPOE Line Card (Model C9400-LC-48UX=) is engineered to deliver maximum flexibility and performance in next-generation enterprise networks. Featuring 24 Multigigabit Ethernet ports and 24 10/100/1000 Mbps RJ-45 ports, this line card supports automatic speed negotiation from 100 Mbps up to 10 Gbps over existing cabling. IEEE 802.3bz and 10GBase-T compatibility enables seamless integration with modern network demands such as advanced Wi-Fi access points and IP-based devices.

With Cisco UPOE, each port delivers up to 60W of power, making it ideal for high-power devices. Energy-saving technologies like Energy Efficient Ethernet (802.3az) and Cisco EnergyWise® help reduce operational costs. Fully compatible with Cisco Catalyst 9400 Series Supervisor Engines, this module supports Cisco IOS® XE 16.6.2 or later, ensuring high scalability and future readiness. Environmentally compliant and built to regulatory standards, this line card is a strategic upgrade for any modern network core.

Specifications

Primary Information
Product Type Expansion Module
Form Factor Plug-in Module
Product Name Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Twisted Pair Cable Standard Category 5e
Environmental Certification RoHS-5
Environmentally Friendly Yes
Depth 14.6"
Width 14.92" (378.97 mm)
Height 1.60" (40.64 mm)
Brand Name Cisco
Network Technology 10GBase-T
Application/Usage Data Networking
Product Model C9400-LC-48UX
Manufacturer Cisco Systems, Inc
Limited Warranty Lifetime
Interfaces/Ports Details 24 x RJ-45 10/100/1000Base-T UPoE LAN
Marketing Information

Cisco Catalyst 9400 Series Multigigabit line card

The Cisco Catalyst 9400 Series 48-Port UPOE Line Card with 24 port Multigigabit ports and 24 10/100/1000 Mbps Ports provides the solution you need to support newer applications such as 802.11ac Wave 2 access points with your existing Ethernet access cabling. Multigigabit switch ports allow automatic negotiation of 100-Mbps, 1-Gbps, 2.5-Gbps, and 5-Gbps speeds on existing Category 5e and 6 cable, and all the way up to 10-Gbps speeds over Category 6 cabling. The Multigigabit Ethernet line card supports Power over Ethernet (PoE), PoE Plus (PoE+), and Cisco Universal PoE (Cisco UPOE) to deliver 15W, 30W, or 60W to the access point. Cisco remains the only vendor that can provide 60W to power downstream devices in a next-generation workspace. So you can power more devices-IP phones, IPTVs, surveillance cameras, virtual desktop clients, and many others-without having to install extra wall or ceiling circuits, while taking advantage of advanced power management capabilities such as Cisco EnergyWise®. You can now realize all of these Cisco UPOE benefits in a single switching platform, while enabling Multigigabit Wi-Fi speeds.

Features

  • 48 ports with 24 Multigigabit ports and 24 10/100/1000 Mbps ports
  • Speeds of 100/1000 Mbps, 2.5/5 Gbps, and 10GBASE-T on the Multigigabit ports and 10/100/1000 Mbps on the other ports
  • Nonblocking up to 1000 Mbps on all ports
  • RJ-45 interface on all ports
  • Supported on Cisco IOS® XE Software Release 16.6.2 or later
  • Cisco UPOE: Capable of up to 60W on all ports in the line card
  • Energy Efficient Ethernet 802.3az on all 10/100/1000 ports
  • IEEE 802.3bz Multigigabit Ethernet standard on the Multigigabit ports
  • IEEE 802.3af/at and Cisco prestandard PoE
  • IEEE
Manufacturer Website Address http://www.cisco.com
Manufacturer Part Number C9400-LC-48UX=
Compatibility

Cisco Catalyst 9400 Series Supervisor Engines:

  • C9400-SUP-1
  • C9400-SUP-1XL

UNSPSC Code
UNSPSC Code 43201404

Special Feature
COO MEXICO
TAA compliance Yes
