Products Network Stuff Cisco Catalyst 9400 48-Port...

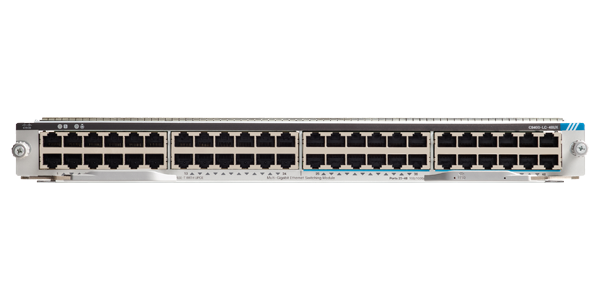

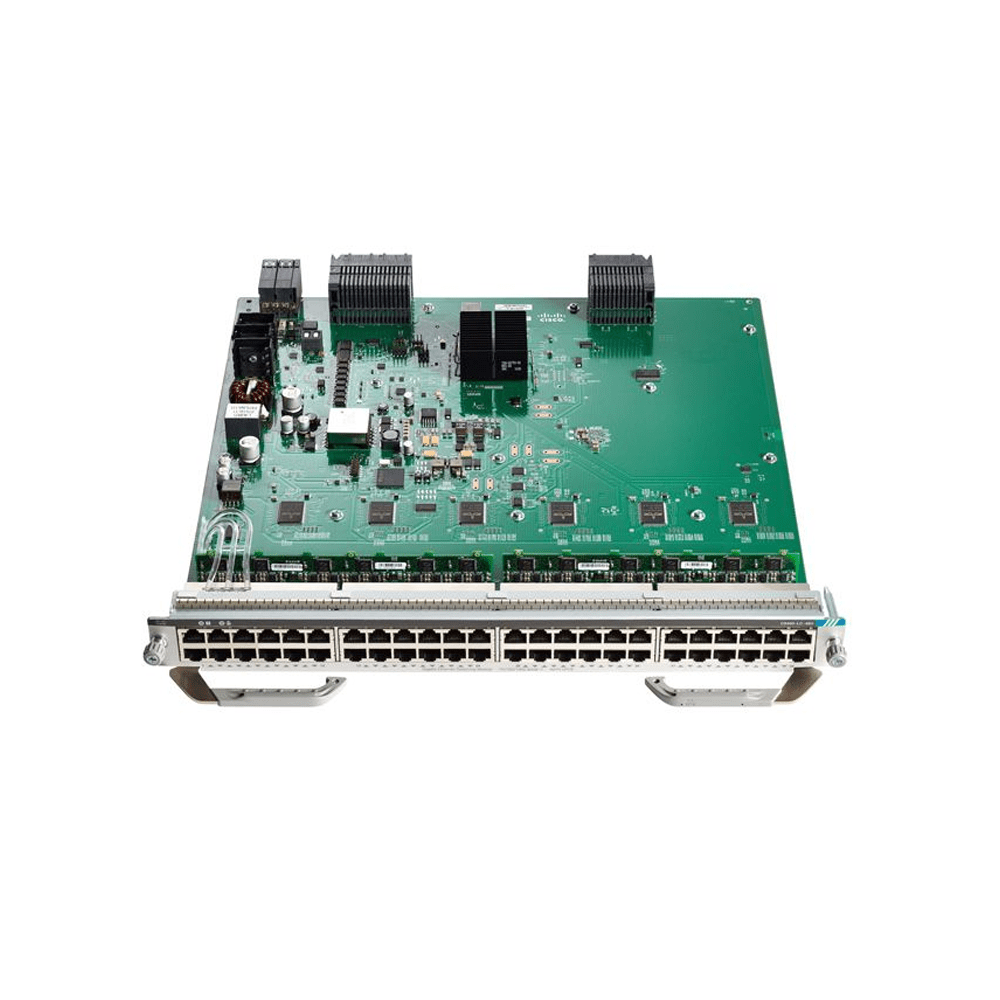

Cisco Catalyst 9400 48-Port UPOE+ Network Adapter

VENDOR: CISCO Mfg Part#: C9400-LC-48H++=
1 3
Photo is for illustration purposes only. Actual product may be different.
$7,403.80
$7,403.80
Sale Sold out
MSRP: $10,858.89
Shipping calculated at checkout.
  • 48-port UPOE+ plug-in module with RJ-45 10/100/1000 Mbps support
  • Supports Gigabit Ethernet with 1 Gbps data transfer rate
  • Nonblocking switching across all 48 ports
  • Wired connectivity technology for stable enterprise usage
  • Plug-in card form factor compatible with Cisco Catalyst 9400 Series
  • TAA compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 48 nonblocking UPOE+ ports, ideal for high-density enterprise environments needing robust power and data delivery
  • TAA compliance ensures suitability for government and federal procurement requirements
  • Form factor and specification optimized for seamless integration into Cisco Catalyst 9400 modular systems

Product Overview

The Cisco Catalyst 9400 Series 48-Port UPOE+ network adapter is a high-density plug-in module offering 48 nonblocking UPOE+ ports over RJ-45 (10/100/1000 Mbps). Designed for Cisco Catalyst 9400 modular systems, it supports Gigabit Ethernet with 1 Gbps transfer rates, making it ideal for enterprise network cores and power-dependent applications. With features such as TAA compliance and manufacturing origin in Mexico, it meets government deployment requirements. Though optimized for advanced deployments, some details like power budgets or additional protocol support are not provided.

Specifications

Product Overview
Product Type Network Adapter
Form Factor Plug-In Card
Module Compatibility Cisco Catalyst 9400 Series
Power Budget per Port Up to 60W (UPOE+)
Connectivity Technology Wired
Power Requirements Powered via compatible Catalyst 9400 chassis
Slot Requirements 1 x line card slot in Cisco Catalyst 9400 chassis
Mounting Type Hot-swappable module for chassis

Physical & Environmental
Width 14.92 Inch
Depth 14.57 Inch
Height 1.6 Inch
Weight 9.2 lbs (approximate)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% (non-condensing)
MTBF >402,000 hours

Cloud Management & Licensing
Management Interface Managed through Cisco IOS XE via Catalyst 9400 Supervisor Engine
Software Licensing Requires Cisco DNA or Network Advantage licensing tiers
Cloud Management Supported via Cisco DNA Center
Network Management Protocols SNMP, RMON, Syslog, NetFlow (via Supervisor)

Interfaces
Network Interface Type 48 x RJ-45 (10/100/1000 Mbps)
Networking / Ports Qty 48
UPOE+ Supported Yes
PoE Standard Cisco UPOE+ (IEEE 802.3bt Type 3)
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps per port
Interfaces & Connections 48-Port UPOE+ 10/100/1000 (RJ-45)

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
RoHS Compliance Yes
Certifications UL, cUL, CE Mark, FCC Part 15 Class A, VCCI Class A, BSMI, RCM
EMI Standards EN55022 Class A

Advanced Security Features
Port Security Supported with Supervisor configuration
MAC Address Filtering Yes
Access Control Lists (ACLs) Yes, configured via Catalyst 9400 chassis
802.1X Authentication Supported via IOS XE
Device Identity Control Cisco TrustSec supported (via Supervisor)
DHCP Snooping Yes
Dynamic ARP Inspection Yes
