Cisco Catalyst 9400 7-Slot Switch with 2xC9400-LC-48U, CX

VENDOR: CISCO Mfg Part#: C9407-96U-BNDL-CX
1 3

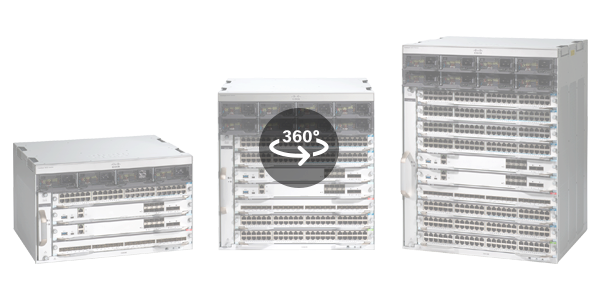

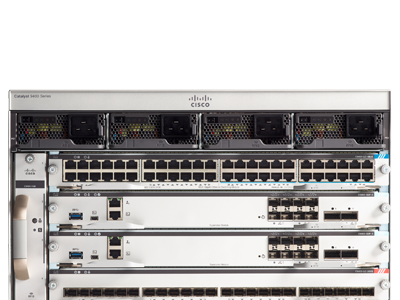

Photo is for illustration purposes only. Actual product may be different.
$15,752.80
$15,752.80
Sale Sold out
MSRP: $23,104.11
Shipping calculated at checkout.
  • 7-slot modular chassis supporting flexible expansion
  • Includes two C9400-LC-48U line cards offering a total of 96 UPOE ports
  • Built-in supervisor for centralized control and efficient management
  • TAA compliant for government procurement contracts
  • Manufactured in Mexico, meeting global supply chain requirements

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for large enterprise or government networks requiring modular scalability and compliance.
  • Delivers high port density with 96 UPOE-capable ports to support modern edge devices.
  • TAA compliance ensures readiness for regulated and sensitive procurement environments.

Product Overview

The Cisco Catalyst 9400 Series 7-slot switch (C9407-96U-BNDL-CX) is designed for scalable enterprise switching solutions. With a supervisor engine and two C9400-LC-48U line cards, the system provides 96 UPOE-ready access ports in a modular 7-slot chassis. The switch supports software-defined access, high availability, and is TAA-compliant for U.S. government use. Built in Mexico, it is suitable for mission-critical campus deployments, enabling centralized management and future-ready expansion.

Specifications

Product Overview
Product Type Modular Access Switch
Product Series Cisco Catalyst 9400 Series
Model Number C9407-96U-BNDL-CX
Chassis Slots 7
Included Line Cards 2 x C9400-LC-48U
Form Factor Rack-mountable
Rack Units 7U
Weight (with full configuration) Approximately 90 kg (198 lbs)
Power Supply Type Redundant AC power supplies supported
Power Redundancy Yes
Hot-swappable Components Power supplies, fans, and line cards

Wireless Features
Wireless Support Supports wireless controller integration (via DNA Center)

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
RoHS Compliance Yes
Certifications UL, CSA, CE, FCC Part 15 Class A, ICES-003

Advanced Security Features
MACsec Encryption Yes, hardware-based 256-bit
Secure Boot and Runtime Defenses Supported
Trustworthy Systems (SUDI) Supported
Access Control Lists (ACLs) Yes
802.1X Authentication Supported
Cisco TrustSec Supported
Network Segmentation Supported via SD-Access

Interfaces
Total Ports 96 x 10/100/1000 UPOE Ethernet ports
UPOE Ports 96
Uplink Options Modular via Supervisor Engine uplink modules
Ethernet Technology Gigabit Ethernet
Expansion Slots 7 (for line cards)
Supervisor Engine Included (Exact model may vary)
Data Transfer Rate Up to 9 Tbps switching capacity with Supervisor 2
Stacking Capability Not supported; uses modular architecture
Console Ports 1 x RJ-45 or USB
Management Ports 1 x 10/100/1000 Ethernet

Physical & Environmental
Dimensions (H x W x D) 12.25 x 17.3 x 21.8 in (31.1 x 43.9 x 55.3 cm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 90% noncondensing
Storage Humidity 5% to 95% noncondensing
Cooling System Redundant variable-speed fans
Acoustic Noise 67 dB typical
Heat Dissipation Up to 4100 BTU/hr (varies by configuration)

Cloud Management & Licensing
Network Management Cisco DNA Center, CLI, SNMP, NETCONF
Software License Cisco DNA Essentials, Advantage, or Premier (required separately)
Cloud Monitoring Support Supported via Cisco DNA Center
Telemetry Capabilities Cisco IOS XE streaming telemetry
Zero-Touch Provisioning Supported
