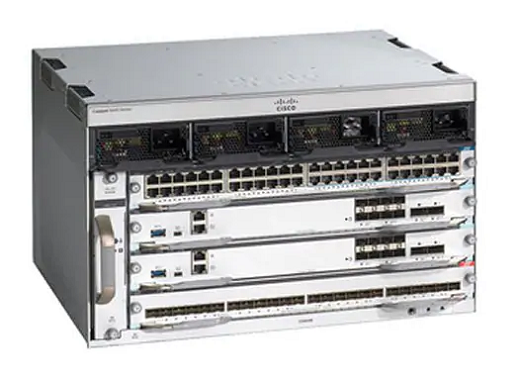

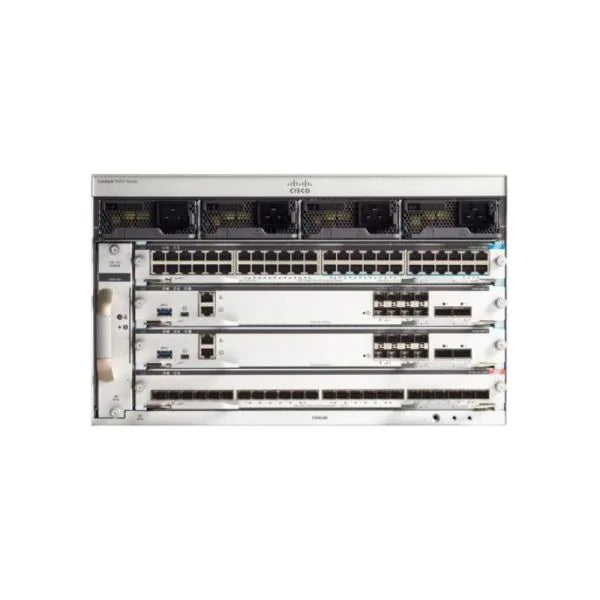

Cisco Catalyst 9400 Series 4-Slot Switch Chassis, Model C9404R

VENDOR: CISCO Mfg Part#: C9404R-10A
1 3
Photo is for illustration purposes only. Actual product may be different.
$799.61
$799.61
Sale Sold out
MSRP: $2,413.09
Shipping calculated at checkout.
  • 6U 4-slot modular chassis with 100 Gbps data transfer rate
  • Multiple interface support: RJ-45, Multigigabit Ethernet, SFP/SFP+/SFP28/QSFP+/QSFP28
  • Layer 2 and Layer 3 switching with support for RIPv1, RIPv2, and RIPng
  • Power over Ethernet (PoE) support with integrated power supply
  • Compliant with IEEE 802.1s, 802.1w, and 802.1p standards
  • MTBF of 2,077,070 hours and Cisco Enhanced Limited Lifetime Warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • High availability design with over 2 million hours MTBF ensures long service life and minimizes downtime
  • Future-ready modular platform with wide interface and protocol support enables flexible deployments
  • Backed by Cisco Enhanced Limited Lifetime Warranty for long-term investment protection

Product Overview

The Cisco Catalyst 9400 Series Model C9404R is a 4-slot modular switch chassis that delivers 100 Gbps of switching capacity in a compact 6U form factor. It supports a rich set of interfaces including RJ-45, Multigigabit Ethernet, SFP, SFP+, SFP28, QSFP+, and QSFP28, enabling broad deployment flexibility. The switch supports Layer 2 and Layer 3 routing with protocols such as RIPv1, RIPv2, and RIPng, along with IPv4 and IPv6 remote management via CLI. With Power over Ethernet (PoE) support, a robust MTBF of over 2 million hours, and compliance with standards like 802.1s/w/p, TAA, and RoHS, this unit is ideal for future-ready enterprise environments. Its operational durability is further enhanced with a wide temperature tolerance range and it's supported by the Cisco Enhanced Limited Lifetime Warranty.

Specifications

Product Overview
Product Type Modular Switch Chassis
Series Cisco Catalyst 9400 Series
Model C9404R
Form Factor 6U Rack-mountable
Medium Type Wired
Switch Fabric Capacity 100 Gbps
Media Layer Supported Layer 2, Layer 3
Slots 4
MTBF 2,077,070 hours
Weight 39 lbs
Power Supply Type Redundant Power Supply (Sold Separately)

Cloud Management & Licensing
Management Interface CLI
Remote Management Protocols IPv4, IPv6, CLI
Cloud-Enabled Features Cisco DNA Center (optional licensing required)
Licensing Model Cisco Smart Licensing, DNA Licensing (Essentials/Advantage)

Physical & Environmental
Dimensions (W x D x H) 17.30 × 16.30 × 10.47 inches
Minimum Operating Temperature -5°C
Maximum Operating Temperature 50°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Operating Relative Humidity 5% to 85% non-condensing
Storage Relative Humidity 5% to 95% non-condensing
Cooling Type Fan tray (front-to-back airflow)

Interfaces
Interface Types Supported RJ-45, Multigigabit Ethernet, SFP, SFP+, SFP28, QSFP+, QSFP28
Data Link Protocols Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Port Density Dependent on installed line cards
Data Transfer Rate 100 Gbps switching capacity
Power over Ethernet (PoE) Support Yes

Advanced Security Features
Encryption Algorithm Support AES-256
Supported Protocols RIPv1, RIPv2, RIPng
Network Access Control 802.1X support
MACsec Encryption Supported with applicable line cards
Security Compliance TAA Compliant, FIPS support (per module)

Compliance & Origin
Country of Origin Mexico
RoHS Compliance Yes
TAA Compliance Yes
Certifications UL, CE, FCC Class A, CSA, VCCI, BSMI
Warranty Cisco Enhanced Limited Lifetime Warranty
