Cisco Catalyst 9400 Series 48-Port 10GbE RJ-45 Line Card

VENDOR: CISCO Mfg Part#: C9400-LC-48TX++=
1 3

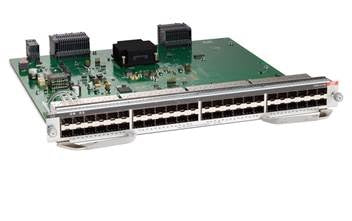

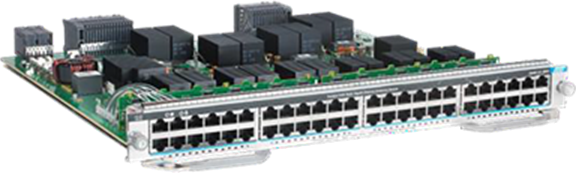

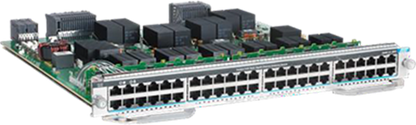

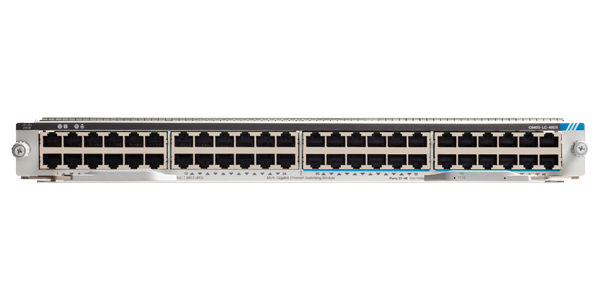

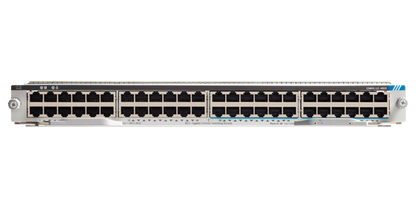

Photo is for illustration purposes only. Actual product may be different.
$12,676.70
$12,676.70
Sale Sold out
MSRP: $18,592.50
Shipping calculated at checkout.
  • 48 RJ-45 ports supporting 10 Gbps data transfer each
  • MACsec encryption with IEEE 802.1AE compliance
  • Plug-in card form factor compatible with Catalyst 9400 Series
  • Gigabit Ethernet transport and data link protocol
  • Enhanced Limited Lifetime Hardware Warranty
  • TAA compliant and RoHS certified

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers 48-port 10GbE line rate performance, ideal for expanding high-speed enterprise networks
  • Integrated MACsec encryption enhances network security without external add-ons
  • Backed by Cisco's Enhanced Limited Lifetime Warranty, ensuring reliable long-term deployment

Product Overview

The Cisco Catalyst 9400 Series 48-Port 10 Gigabit Ethernet Line Card offers secure and scalable high-density switching for enterprise environments. This plug-in module supports 48 RJ-45 ports with up to 10 Gbps data transfer each, featuring built-in MACsec encryption and IEEE 802.1AE compliance for secure communications. Compact yet powerful, its 1.6-inch height fits well in constrained spaces, while the Enhanced Limited Lifetime Warranty provides long-term reliability. Ideal for branch and campus deployments, it ensures excellent scalability and performance standards.

Specifications

Product Overview
Type Line Card
Form Factor Plug-In Card
Product Family Cisco Catalyst 9400 Series
Model C9400-LC-48TX++=
Weight 9.9 lbs (4.5 kg)
Power Consumption Up to 200W
Intended Application Campus and Branch Deployments

Advanced Security Features
Encryption Support MACsec
MACsec Standards Compliance IEEE 802.1AE
Layer 2–4 Packet Filtering Yes
Denial-of-Service Protection Yes
Port-Level Security Yes
Policy-Based Access Control Yes

Physical & Environmental
Height 1.6 Inch (40.6 mm)
Width 14.92 Inch (379 mm)
Depth 14.57 Inch (370 mm)
Mounting Type Chassis Plug-In Module
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Operating Humidity 5% - 90% (non-condensing)
Storage Humidity 5% - 95% (non-condensing)

Warranty & Support
Warranty Type Enhanced Limited Lifetime Hardware Warranty (ELLW)
Support Coverage Cisco Smart Net Total Care (optional)

Interfaces
Interface Type RJ-45
Port Count 48
Data Transfer Rate per Port 10 Gbps
Total Switching Capacity 960 Gbps
Aggregate Throughput 720 Mpps
Interface Standard 10GBASE-T
Transport Protocol Gigabit Ethernet
Data Link Protocol Gigabit Ethernet

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, SNMP, web UI
Software Licensing Requires Cisco DNA software license (Essentials, Advantage, or Premier)
Included Cloud Features DNA Assurance, Software-Defined Access (SDA)
Remote Management Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CSA, CE, FCC Part 15 Class A, VCCI Class A
