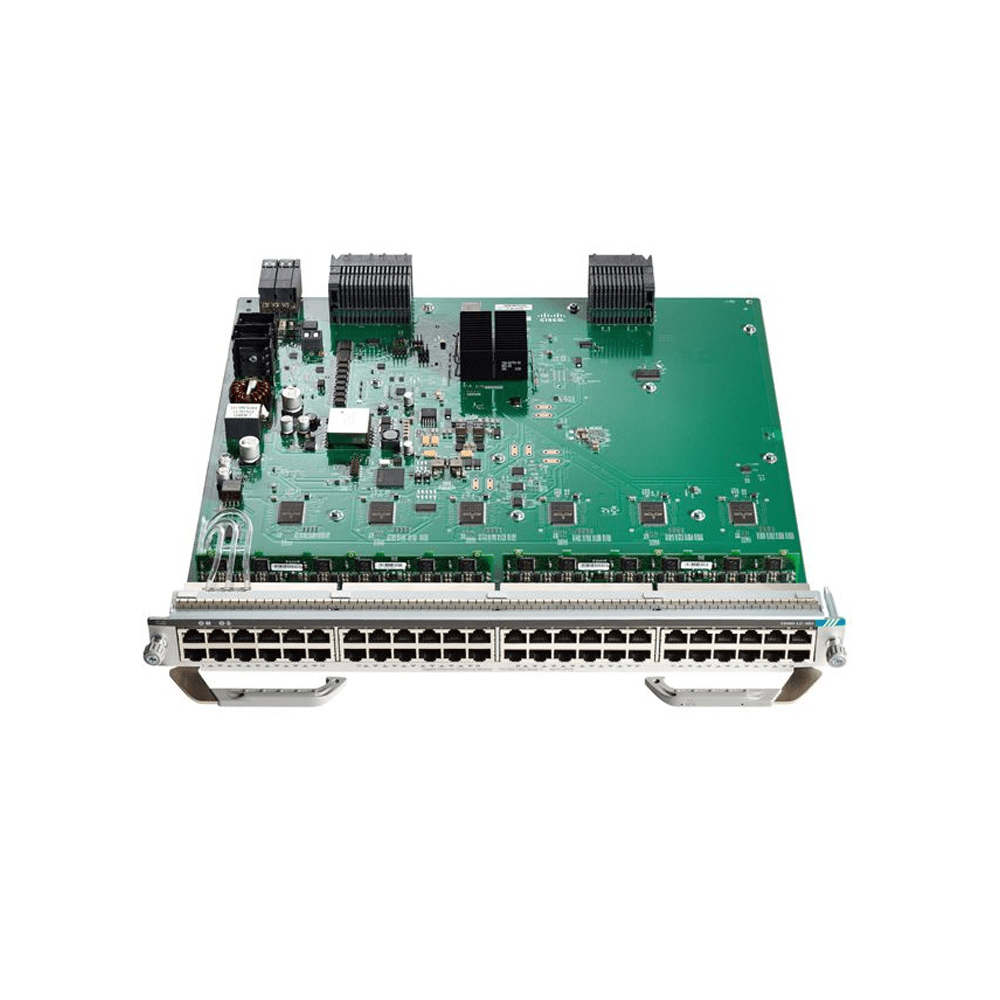

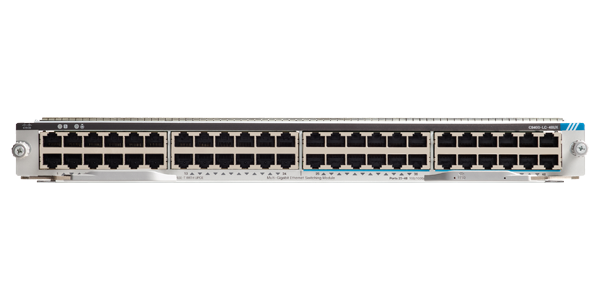

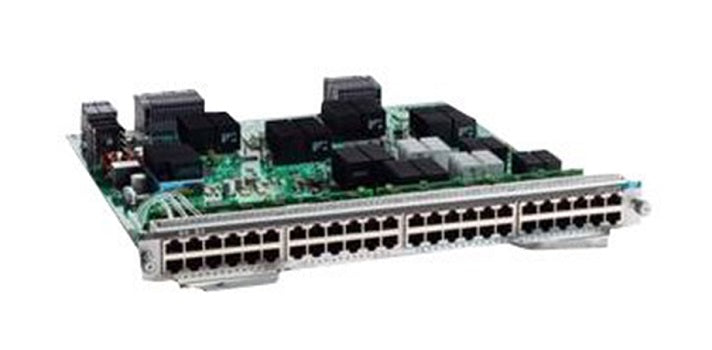

Cisco Catalyst 9400 Series 48-Port UPOE, 24p mGig 24p RJ-45

VENDOR: CISCO Mfg Part#: C9400-LC-48UX++=
1 3
Photo is for illustration purposes only. Actual product may be different.
$9,678.15
$9,678.15
Sale Sold out
MSRP: $14,194.62
Shipping calculated at checkout.
  • - 48 total ports combining 24 multi-Gigabit (mGig) and 24 RJ-45 UPOE ports
  • - Universal Power over Ethernet (UPOE) support for high-demand device connectivity
  • - Modular design compatible with Cisco Catalyst 9400 Series chassis
  • - TAA compliance for use in government-regulated environments
  • - Country of origin: Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Supports a flexible mix of mGig and UPOE ports, enabling deployment versatility for modern enterprise networks
  • - TAA compliance makes it a strong candidate for government and federally regulated IT projects
  • - Designed as part of the modular Catalyst 9400 series, allowing scalable performance and investment protection

Product Overview

The Cisco Catalyst 9400 Series 48-Port UPOE line card (model C9400-LC-48UX++=) is engineered for enterprises requiring a highly scalable and resilient modular access platform. Offering a total of 48 network ports, it balances 24 multi-Gigabit (mGig) and 24 standard RJ-45 UPOE ports, enabling flexible connectivity across a wide range of devices and services.

Designed to be a key component of the Catalyst 9400 modular chassis system, this unit adheres to TAA compliance for deployment in federal and government projects. The inclusion of UPOE functionality allows it to support power-hungry devices such as IP phones, wireless access points, and video conferencing systems through standard Ethernet cabling.

For organizations seeking high-performance access layer aggregation with flexible power and throughput capabilities, this module delivers an optimal balance of density, compliance, and future-ready design.

Specifications

Product Overview
Product Type Modular line card
Form Factor Plug-in module for Cisco Catalyst 9400 chassis
Module Compatibility Cisco Catalyst 9400 Series Chassis
Number of Ports 48
Port Types 24 x mGig RJ-45 + 24 x UPOE RJ-45
Power over Ethernet Cisco UPOE (Up to 60W per port)
Weight 5.4 kg (11.9 lb)
Power Consumption (typical) 200W
Power Consumption (maximum) 275W

Wireless Features
Access Point Power Support Supports powering Wi-Fi 6 and Wi-Fi 6E APs via UPOE

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Environmental Compliance Yes (WEEE, RoHS, REACH)
Certifications FCC Part 15 Class A, UL/CSA 60950-1, IEC 60950-1, EN55032 Class A

Advanced Security Features
MACsec Encryption Support Yes, 256-bit
Segmentation Supported (Cisco TrustSec)
Policy Enforcement Yes, through Cisco Identity Services Engine (ISE)
Secure Boot Yes
Software Image Verification Yes (Cisco Secure Boot and run-time defense)

Interfaces
Interface Type RJ-45 Ethernet
Multi-Gigabit Ports 24 x 100Mbps/1G/2.5G/5G/10G
Standard RJ-45 Ports 24 x 10/100/1000 Ethernet
UPOE Support Yes, 60W per port on all 48 ports
Data Transfer Rate Up to 10 Gbps per port
Total Switching Capacity Up to 480 Gbps per line card

Physical & Environmental
Dimensions (H x W x D) 1.73 x 14.35 x 21.73 in (4.4 x 36.45 x 55.2 cm)
Product Height 1.73 in
Product Width 14.35 in
Product Depth 21.73 in
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 5% to 90% (non-condensing)
Storage Temperature -40°C to 70°C
Storage Humidity 5% to 95% (non-condensing)
Mean Time Between Failure (MTBF) 392,780 hours

Cloud Management & Licensing
Management Interface Cisco IOS XE via Catalyst 9400 supervisor module
Software Features Supports Cisco DNA Center, NetFlow, MACsec
Licensing Model Cisco Smart Licensing
DNA Licensing Required Yes, for advanced features
Stacking Support Yes, via Supervisor and StackWise Virtual
