Cisco Catalyst 9400 Series 48-Port UPOE Line Card (C9400-LC-48U+=)

VENDOR: CISCO Mfg Part#: C9400-LC-48U++=
  • The Cisco Catalyst 9400 Series 48-Port UPOE Line Card (C9400-LC-48U+=) is engineered for high-performance enterprise networks. Designed for use with the Cisco Catalyst 9400 chassis, it delivers reliable wired Gigabit Ethernet connectivity with support for up to 48 PoE-enabled RJ-45 ports. Ideal for scalable, high-density network environments, it also meets TAA compliance and comes with a limited lifetime warranty.
1 1

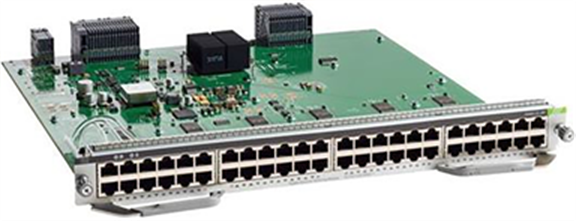

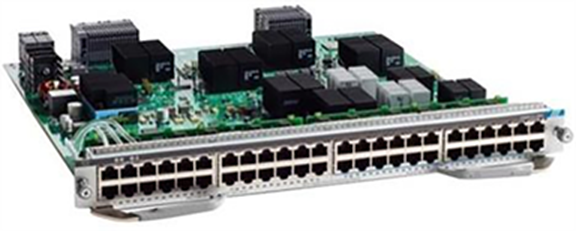

Photo is for illustration purposes only. Actual product may be different.
$7,719.31
$7,719.31
Sale Sold out
MSRP: $11,228.09
Shipping calculated at checkout.
  • 48-port 10/100/1000 Mbps UPOE RJ-45 interface for high-density switch capacity
  • Gigabit Ethernet support with IEEE 802.3 standards compliance including 802.3bt, 802.3at, and 802.3af
  • Supported on Cisco IOS XE Software Release 16.6.1 or later
  • MTBF rating of 915,150 hours ensures long service life
  • TAA-compliant and made in Mexico
  • Includes Limited Lifetime Warranty for extended product coverage
View full details

Key Benefits

Eye-Insights
  • Delivers reliable high-speed Gigabit connectivity across 48 UPOE ports, ideal for enterprise access layer growth.
  • Engineered to work seamlessly with Cisco Catalyst 9400 Series and IOS XE environments, optimizing system integration.
  • TAA compliance and a Limited Lifetime Warranty provide regulatory assurance and long-term value.

Product Overview

The Cisco Catalyst 9400 Series 48-Port UPOE Line Card (C9400-LC-48U+=) is a high-capacity network module designed for scalability in enterprise switching environments. With 48 UPOE-enabled RJ-45 interfaces supporting 10/100/1000 Mbps, it ensures reliable data and power transport for endpoint devices across robust network infrastructures. Built for seamless integration with the Cisco Catalyst 9400 Series, it supports contemporary Gigabit Ethernet protocols under Cisco IOS XE 16.6.1+. Its MTBF of 915,150 hours and TAA compliance further complement its efficacy in commercial or government installations. Compact and purpose-built, it empowers enterprises to deliver consistent connectivity with minimal downtime.

Specifications

Primary Information
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired
Networking / Ports Qty 48
Product Type Line card
Network / Interface Type Ethernet
Transport Protocol Gigabit Ethernet
Networking Compliant Standards IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an

UNSPSC Code
UNSPSC Code 43201404

General
For Use With Cisco Catalyst 9400 Series switch
Features Supported on Cisco IOS XE Software Release 16.6.1 or later. Cisco UPOE is enabled, capable of up to 60W on all ports in the line card. Energy Efficient Ethernet 802.3az. IEEE 802.3af/at and Cisco pre-standard PoE. IEEE 802.1AE (MACsec-256) capability in hardware. Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes.

Service&Support
Service & Support Type Limited Lifetime Warranty

Special Feature
COO MEXICO
TAA compliance Yes

Expansion
Interfaces & Connections 48-Port UPOE 10/100/1000 (RJ-45)

Dimensions&Miscellaneous
Width 14.92 Inch
Depth 14.57 Inch
Height 1.6 Inch
