Cisco Catalyst 9404R 4-Slot Rack-Mountable Switch Chassis

VENDOR: CISCO Mfg Part#: C9404R UPC#: 889728044028

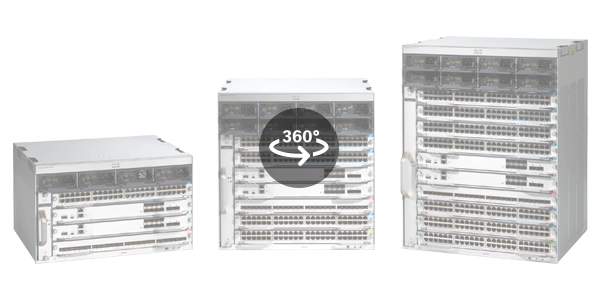

  • Cisco Catalyst 9400 Series 4 slot chassi
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,645.28
$1,645.28
Sale Sold out
MSRP: $2,413.09
Shipping calculated at checkout.
  • - Modular 4-slot chassis supporting 4 line cards and 2 supervisor modules
  • - Rack-mountable 6U design with side-to-side airflow and integrated fan tray
  • - Hot-plug capable internal power supply with optional N+N redundancy
  • - Extensive compliance with global standards including RoHS and FCC
  • - Operating temperature range from 23°F to 113°F at 10–95% humidity
  • - Lifetime warranty with next business day replacement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Designed for scalable, high-availability enterprise networking with modular expansion slots
  • - Built to meet rigorous global compliance and temperature durability standards
  • - Backed by Cisco’s limited lifetime warranty and next-business-day support for long-term reliability

Product Overview

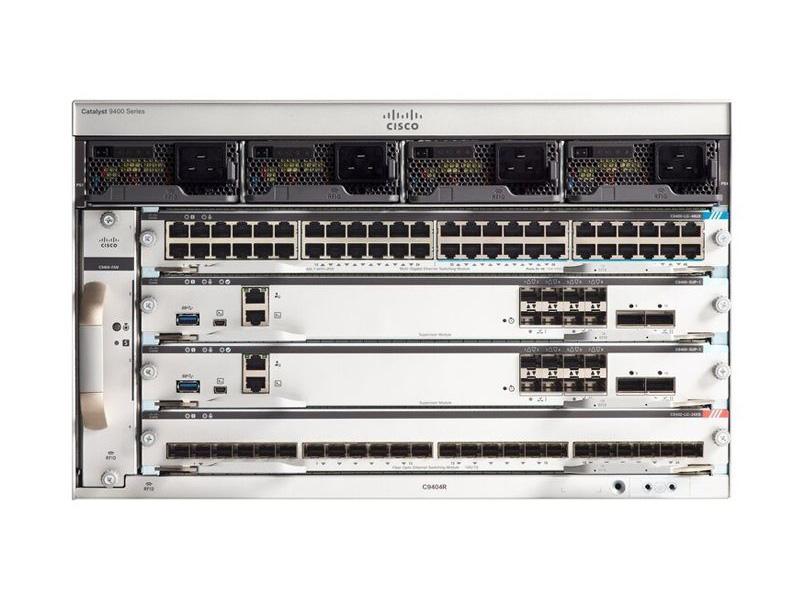

The Cisco Catalyst 9404R is a 4-slot modular switch chassis designed for enterprise-grade deployments requiring high availability and flexible networking. The rack-mountable 6U chassis supports up to four line-card and two supervisor modules with side-to-side airflow facilitated by a built-in fan tray. It includes optional hot-plug power redundancy (N+N) to minimize downtime.

This platform complies with rigorous global standards including RoHS, FCC Part 15, and CISPR 32 Class A, and supports wide operating conditions of 23°F to 113°F and 10–95% humidity. Manufactured in Mexico with TAA compliance, it is suitable for government and enterprise deployment. Backed by Cisco’s limited lifetime warranty, it offers infrastructure scalability and resilience for critical networking environments.

Specifications

Product Overview
Product Type Modular Network Switch Chassis
Model Cisco Catalyst 9404R
Series Cisco Catalyst 9400 Series
Form Factor Rack-mountable – 6U
Rack Units 6U
Fan Tray Included
Power Configuration Hot-plug, power supply not installed
Weight 37.92 lbs
Power Redundancy Optional
Power Redundancy Scheme N+N
Voltage Required AC 120/230 V
Max Power Supplies Supported 2

Wireless Features
Wireless Support No integrated wireless hardware

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
Certifications FCC Part 15 Class A, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, IEC/EN 60950-1, ICES-003 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI Class A, KN32 Class A, KN35
Environmental Standards ETSI 300 019-2-1, 2-2, 2-3 Class 1.2/2.3/3.2

Advanced Security Features
Network Security Features Dependent on installed supervisor & line card modules
TrustSec Support Yes (with compatible supervisor module)
Role-Based Access Control Yes
802.1X Authentication Supported (when supervisor installed)
MACsec Encryption Supported on select line cards
Secure Boot and Image Signing Supported (platform-secured control plane)

Interfaces
Supervisor Module Slots 2 (total) / 2 (free)
Line Card Slots 4 (total) / 4 (free)
Installed Modules 0 (installed) / 4 (max)
Management Ports Dependent on Supervisor Module
Uplink Interfaces Modular, based on line cards
Backplane Bandwidth Up to 1.44 Tbps system bandwidth
Switching Capacity Up to 9 Tbps per system (with appropriate modules)

Physical & Environmental
Width 17.3 in
Depth 16.3 in
Height 10.4 in
Operating Temperature Range 23 °F to 113 °F (-5 °C to 45 °C)
Storage Temperature Range -40 °F to 158 °F (-40 °C to 70 °C)
Operating Humidity Range 10% to 95% (non-condensing)
Storage Humidity Range 10% to 95% (non-condensing)

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, SNMP, WebUI (via Supervisor Module)
Licensing Model Cisco Smart Licensing
Cloud Management Support Yes, with Cisco DNA Center (requires appropriate licensing)
Included Licensing None (licensing sold separately)
