Products Networking Switches Cisco Catalyst 9500 16-Port...

Cisco Catalyst 9500 16-Port 10G Switch, 1Y DNA Advantage (C9500-16X-1A)

VENDOR: CISCO Mfg Part#: C9500-16X-1A UPC#: 889728139557
  • The Cisco Catalyst 9500 Series model C9500-16X-1A is a high-performance, rack-mountable Layer 3 switch engineered for demanding enterprise and federal environments. It offers 16 x 10 Gigabit Ethernet ports and includes a 1-year DNA Advantage subscription for intelligent network services, security, and automation. Designed with industry-leading resilience and full-stack capabilities, this switch ensures reliable, scalable connectivity for core and aggregation layers.
1 1

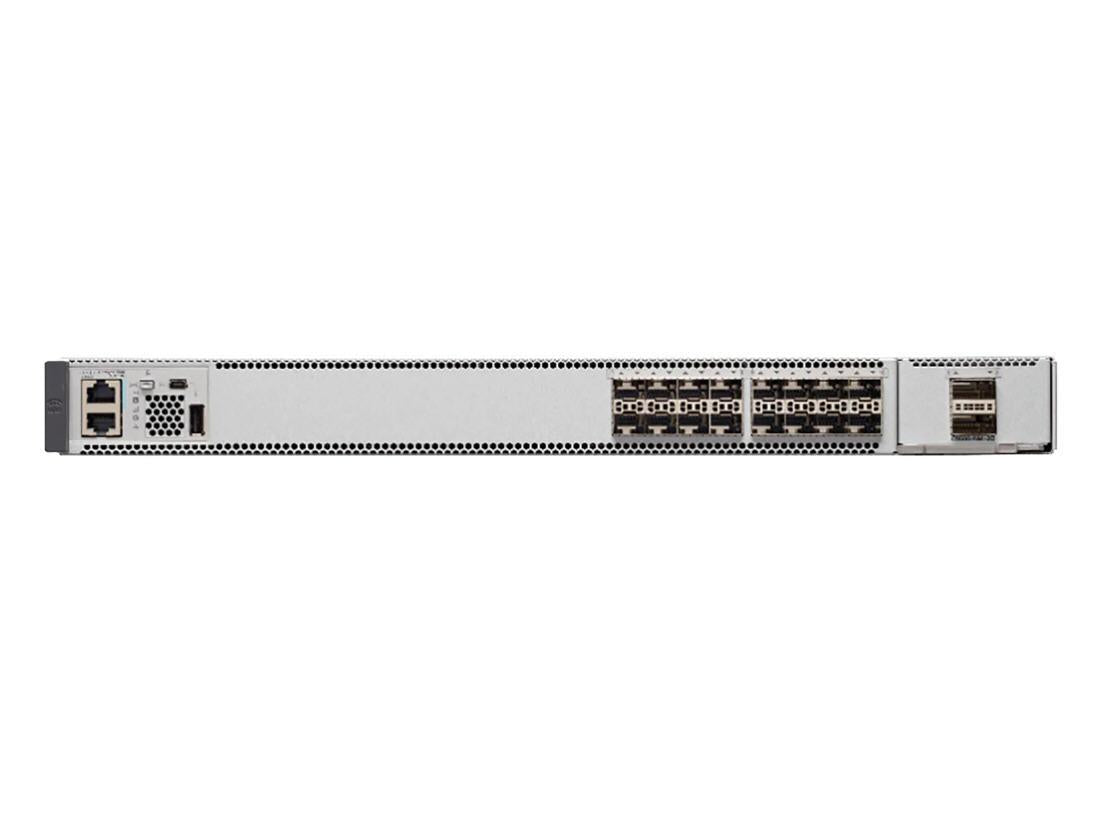

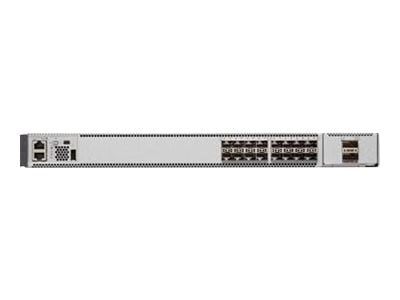

Photo is for illustration purposes only. Actual product may be different.
$17,087.36
$17,087.36
Sale Sold out
MSRP: $24,854.34
Shipping calculated at checkout.
  • 16 x 10 Gigabit Ethernet + 2 x 10G SFP+ ports with up to 480 Gbps switching capacity
  • Layer 3 managed switch with support for OSPF, RIP, IGMP, PIM, and policy-based routing
  • 16 GB RAM and 16 GB flash memory with 2.4 GHz processor for high-performance compute
  • Supports MACsec encryption, MPLS, VRF, QoS, ACLs, and integrated Wireshark
  • Dual hot-plug power supplies delivering 950W and front-to-rear airflow design
  • Advanced monitoring protocols: SNMP, RMON, NETCONF, RESTCONF, FNF up to 512,000 entries
View full details

Key Benefits

Eye-Insights
  • Delivers carrier-grade speed and scalability ideal for enterprise core or aggregation layers
  • TAA-compliant and engineered for U.S. federal government environments with robust certification
  • Bundled with 1-Year DNA Advantage license and Cisco IOS Universal for advanced automation and security

Product Overview

The Cisco Catalyst 9500 Series C9500-16X-1A is a 1U rack-mountable, Layer 3 managed switch supporting high-throughput networking with 16 x 10G Ethernet ports and 2 x 10G SFP+ uplinks. It delivers impressive performance with up to 480 Gbps switching capacity and 360 Mpps forwarding rate. Advanced networking features include MACsec encryption, MPLS, L3VPN, NSR, VRF, and ACL support, and it utilizes 16 GB RAM and a 2.4 GHz processor for policy-intensive workloads. With dual hot-plug 950W power supplies, front-to-rear airflow, and integrated Wireshark and FNF analytics, it supports mission-critical networks. Designed for federal compliance with TAA and robust IEEE standards, it is backed by a limited lifetime warranty and Cisco IOS Universal software for long-term operability.

Specifications

Special Feature
COO UNITED STATES
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 65 Celsius

Primary Information
Network Device Type Switch
Model C9500-16X-1A
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Networking / Ports Qty 22
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s,IEEE 802.1w,IEEE 802.1x
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
Power / Voltage Required 90 to 264 VAC
MTBF 315790 hours
Features Automated device provisioning; API-driven configuration; Seamless software upgrades and patching

Interfaces / Ports
Interfaces 16-port 10G

Service&Support
Service & Support Type 1Year DNA Advantage

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support none
PoE Power Consumption none
MAC Address Table Size 64000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; IPv6; SNMP
Encryption Algorithm AES
Interfaces 16-port 10G

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 21.52 Inch
Height 1.73 Inch
Weight 10.7 Kg
