| Product Type | Layer 3 Managed Switch |
| Form Factor | Rack-mountable 1U |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Weight | 20.99 lbs |
| Power Requirements | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 650 Watt |
| Power Device | Internal power supply - hot-plug |
| MTBF | 336,780 hours |
| Processor | 1: 2.4 GHz |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Built-in Devices | RFID tag |

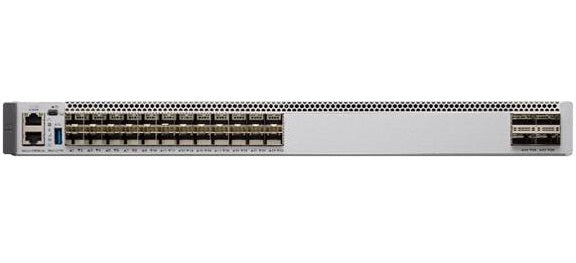

Cisco Catalyst 9500 24x25G + 4x100G Switch, DNA Essentials 1Y
Photo is for illustration purposes only. Actual product may be different.
Regular price
$17,944.90
Regular price
Sale price
$17,944.90
Unit price
per
MSRP: $26,319.19
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 x 25 Gigabit SFP28 ports and 4 x 100Gbit LAN interfaces
- Switching capacity of 1.6 Tbps and forwarding rate of 1 Bpps
- Supports up to 64K MAC addresses and 90K host IPv4/IPv6 routes
- Includes Cisco IOS Universal and 1-year DNA Essentials license
- Advanced L3 features: OSPF, BGP, EIGRP, policy-based routing
- Redundant power supply options with 1+1 scheme and hot-plug support
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers ultra-high performance with 1.6 Tbps switching capacity, ideal for bandwidth-intensive enterprise applications.
- Advanced automation and security via Cisco DNA Essentials, 256-bit AES encryption, and integrated Wireshark.
- Scalable, future-ready architecture with deep protocol support and 64K MAC address table, supporting expansive network growth.
Product Overview
The Cisco Catalyst 9500 Series Switch (C9500-24Y4C-1E) delivers advanced Layer 3 switching in a compact 1U rack-mountable design, supporting 24x 25G SFP28 and 4x 100G high-speed ports for top-tier data throughput. Tailored for digital-ready enterprise cores and aggregation layers, this managed switch supports 1.6 Tbps switching capacity and 1 Bpps forwarding rate, ideal for bandwidth-heavy, latency-sensitive applications. It supports 64K MAC addresses, 90K routes per protocol, and scale-optimized multicast and ACL configurations.
Integrated with Cisco IOS Universal and a 1-year DNA Essentials subscription, it enables automation, analytics, and policy enforcement. Compatibility with OSPF, BGP, VRRP, and other key protocols ensures robust routing, while 256-bit AES encryption and 802.1x authentication reinforce network security posture. Embedded Wireshark support, programmable interfaces (NETCONF/RESTCONF), and telemetry enhance operational visibility.
The device is equipped with hot-pluggable redundant power support, optional 1+1 redundancy, and offers a notable MTBF of 336,780 hours. Jumbo frame support, advanced QoS, IPv6 readiness, and class-leading standards compliance make it a durable, scalable solution for future-ready enterprise networks.
Specifications
Product Overview
Cloud Management & Licensing
| Management Software | Cisco DNA Essentials (1 year) |
| Software Included | Cisco IOS Universal |
| Remote Management Protocols | SNMP 1/2c/3, RMON 1/2, NETCONF, RESTCONF |
Physical & Environmental
| Dimensions (W x D x H) | 17.5 in x 18 in x 1.7 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 149 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Interfaces
| Total Ports | 24 x 25 Gigabit SFP28 + 4 x 100 Gigabit Ethernet |
| SFP28 Ports | 24 |
| 100G QSFP28 Ports | 4 |
| USB 3.0 Ports | 2 |
| Supported Interface Type | 25 Gigabit Ethernet |
| Data Transfer Rate | Switching capacity: 1.6 Tbps (full duplex) |
| Forwarding Rate | 1 Bpps |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 64K entries |
Advanced Security Features
| Encryption Algorithm | 256-bit AES |
| Authentication | 802.1x authentication |
| Secure Boot | Yes |
| Content Inspection Tools | Integrated Wireshark |
| Segmentation | Private VLAN, VRF |
| Network Access Control | FHS (First Hop Security) |
Compliance & Origin
| Compliant Standards | IEEE 802.3, 802.1x, 802.3ad, 802.3ae, VCCI, FCC Part 15 Class A, RoHS, UL 60950-1, IEC 60950-1 |
| Certifications | EN55024, EN 61000-4-x, CISPR 22/24 Class A, BSMI, ICES-003, CAN/CSA-C22.2 |
| Country of Origin | CHINA / MEXICO / THAILAND |
| TAA Compliance | Yes |
