Cisco Catalyst 9500 48-Port 1/10/25G + 4-Port 40/100G Switch

VENDOR: CISCO Mfg Part#: C9500-48Y4C-1A UPC#: 889728146630
  • The Cisco Catalyst 9500 Series switch, model C9500-48Y4C-1A, provides high-performance aggregation with 48 SFP28 ports and 4 QSFP28 uplinks. Designed for enterprise core or aggregation layers, it supports 1/10/25/40/100G Ethernet and comes preloaded with Cisco Network Advantage for one year. Its rich feature set and hardware scalability make it ideal for advanced routing, high-density environments, and secure enterprise deployments.
1 1

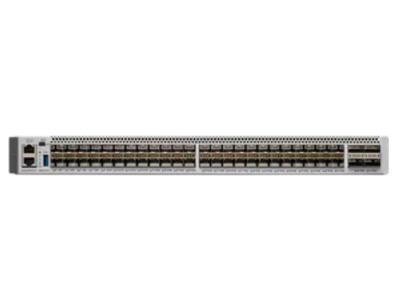

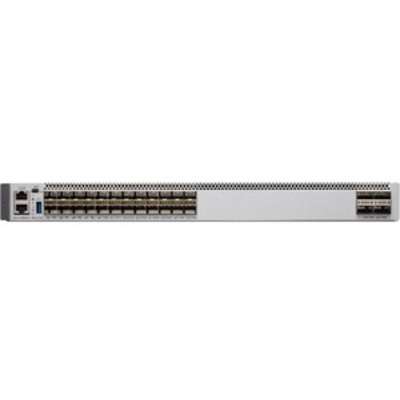

Photo is for illustration purposes only. Actual product may be different.
$20,357.79
$20,357.79
Sale Sold out
MSRP: $29,611.33
Shipping calculated at checkout.
  • 48 x SFP28 ports supporting 1/10/25 Gigabit Ethernet, plus 4 x QSFP28 for 40/100G uplinks
  • Switching capacity of 3.2 Tbps and forwarding rate of 1 Bpps
  • Supports advanced Layer 3 routing protocols, including BGP, OSPF, MPLS
  • MAC address table for 64K entries and jumbo frame support up to 9198 bytes
  • Internal hot-swappable power supply with optional 1+1 redundancy
  • Includes 1-year Cisco Network Advantage software and Cisco IOS XE 16.8.1
View full details

Key Benefits

Eye-Insights
  • Ideal for high-density enterprise or core aggregation networks with scalable 1/10/25/40/100G port combinations
  • Advanced routing, NAT, QoS, and security capabilities powered by Cisco IOS XE and Network Advantage
  • Reliability backed by a 316,960-hour MTBF, hot-plug power redundancy, and limited lifetime warranty

Product Overview

The Cisco Catalyst 9500 C9500-48Y4C-1A is a next-generation Layer 3 managed switch offering high-performance and advanced feature flexibility for core and aggregation-layer environments. It features 48 SFP28 ports that support 1/10/25 Gigabit Ethernet and 4 QSFP28 ports for 40/100 Gigabit Ethernet uplinks, ideal for data-intensive enterprise applications. The device is powered by a 2.4 GHz processor, 16 GB RAM, and 16 GB flash storage, ensuring fast throughput. With a switching capacity of 3.2 Tbps and forwarding rate of 1 Bpps, it's built for scalable deployments. It supports jumbo frames (9198 bytes), MACsec encryption, and up to 212,000 IPv4/IPv6 indirect routes.

Designed for reliability, the switch has a hot-swappable power supply, optional redundancy, and comes in a compact 1U rack-mountable form, weighing 21.96 lbs. It supports advanced routing protocols including OSPF, BGP, MPLS, and more. Remote management options include SNMP, NETCONF, and RESTCONF. With compliance to IEEE, TAA, and safety standards, it is ideal for enterprise and government use. The inclusion of Cisco Network Advantage (1 year) provides future-ready software capabilities for automation and security. With an MTBF of 316,960 hours and a limited lifetime warranty, it offers long-term, dependable operation.

Specifications

Primary Information
Network Device Type Switch
Data Transfer Rate 100 Gbps
Networking / Ports Qty 56
Data Link Protocol Gigabit Ethernet

Network
Interfaces 1/10/25G; 4-port 40/100G

Special Feature
COO CHINA / MEXICO / THAILAND / CHINA / MEXICO / THAILAND
TAA compliance Yes

Interfaces / Ports
Interfaces 1/10/25G; 4-port 40/100G

Service&Support
Service & Support Type 1Y Advantage

UNSPSC Code
UNSPSC Code 43222612
