Products Networking Switches Cisco Catalyst 9500 48-Port...

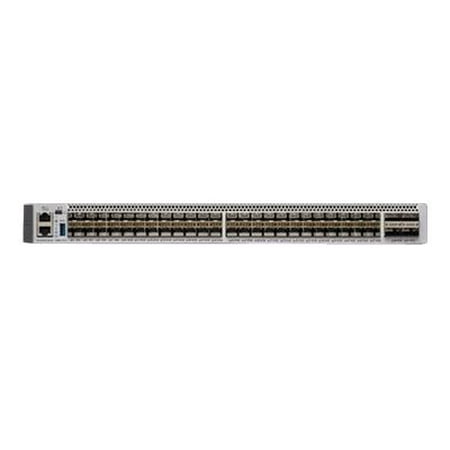

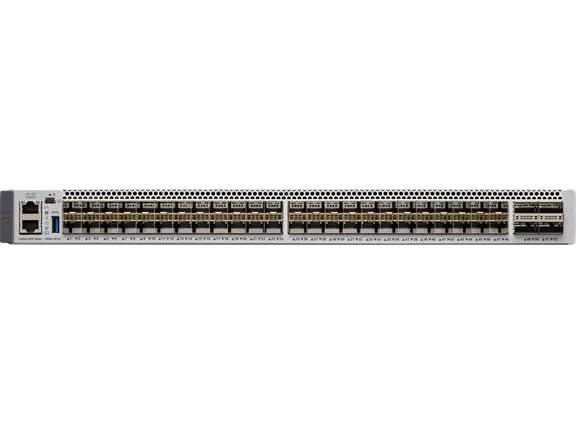

Cisco Catalyst 9500 48-Port 100Gb Switch C9500-48Y4C-A

VENDOR: CISCO Mfg Part#: C9500-48Y4C-A UPC#: 889728142625
  • This high-performance Cisco Catalyst 9500 Series switch model C9500-48Y4C-A delivers next-generation wired connectivity with an extensive 48-port configuration, enabling 100Gbps data rates for enterprise core and aggregation layers. Equipped with 16 GB RAM and MACsec encryption, this 1RU unit ensures scalable, secure, and resilient networking. Ideal for large-scale deployments requiring intelligent traffic management, high port density, and enhanced management features.
1 1
Photo is for illustration purposes only. Actual product may be different.
$21,151.74
$21,151.74
Sale Sold out
MSRP: $30,766.18
Shipping calculated at checkout.
  • Supports 48 1/10/25G ports and 4 40/100G uplinks for versatile high-speed connectivity
  • Delivers wire-speed data transfer up to 100Gbps
  • Layer 2 and 3 routing with support for VLAN, IPv4, IPv6, RIP, OSPF, and more
  • MACsec encryption ensures secure data communication
  • Includes 16 GB RAM and 16 GB flash memory for enhanced performance and storage
  • Jumbo frame support up to 9216 bytes for handling large data packets
View full details

Key Benefits

Eye-Insights
  • Optimized for enterprise aggregation/core use cases with high port density and 100Gbps throughput
  • Enhanced security and traffic management through built-in MACsec encryption and Layer 3 protocols
  • Robust hardware backed by TAA compliance and a high MTBF of nearly 317,000 hours ensures long-term reliability

Product Overview

The Cisco Catalyst 9500 C9500-48Y4C-A is a robust enterprise-level switch engineered for high-throughput, secure, and scalable network environments. Designed in a 1RU form factor, it incorporates 48 ports with 1/10/25G capabilities and 4 uplink ports supporting 40/100G, enabling efficient data handling up to 100Gbps. Support for high-speed data protocols and jumbo frames up to 9216 bytes ensures optimal performance in modern data-intensive operations.

Running on 16 GB RAM and 16 GB flash storage, this switch supports advanced Layer 2 and Layer 3 routing protocols including OSPFv2, RIPv2, and RIPng. Its MACsec encryption ensures secure data flow, while compliance with IEEE 802.1 standards and VLAN/IPv4/IPv6 management protocols allows for flexible, unified control. The unit features a miniature USB-B and RJ45 interface and operates within 0–40°C for reliable uptime, further reinforced by a high MTBF of approximately 316,960 hours.

Ideal for core and distribution layers of large enterprise networks, the Catalyst 9500 delivers resilience and efficiency backed by an Enhanced Limited Lifetime Hardware Warranty. Designed for international deployment, it supports AC input from 90 to 264 VAC and adheres to TAA compliance guidelines. This switch provides the scalability and security enterprises need in a compact and energy-efficient footprint.

Specifications

Primary Information
Network Device Type Switch
Data Transfer Rate 100 Gbps
Networking / Ports Qty 56
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 16 GB
Model C9500-48Y4C-A
Form Factor 1RU
Connectivity Technology Wired
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
Uplink Port 4x 40/100 Gigabit Ethernet uplink ports
Power / Voltage Required 90 to 264 VAC
MTBF 316960 hours
Features Scalable Layer 3 routing (IPv4, IPv6, and multicast) tables and Layer 2 switching tables. Hardware support for application hosting. IEEE 802.1ba Audio Video Bridging (AVB) built in to provide a better AV experience through improved time synchronization and QoS.

Network
Interfaces 48x 1/10/25 Gigabit Ethernet ports + 4x 40/100 Gigabit Ethernet uplink ports, USB, RJ45, USB-mini type B
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size Up to 82000
Jumbo Frame Support 9216 bytes
Remote Management Protocol DHCP; Syslog; RMON; SNMP
Routing Protocol RIPv2, RIPng, OSPFv2, BGP, EIGRP, IS-IS
Encryption Algorithm MACsec

Special Feature
COO BRAZIL / CHINA / MEXICO / THAILAND / UNITED STATES
TAA compliance Yes
Min Operating Temperature 0 Degree Celsius
Max Operating Temperature 40 Degree Celsius
Min Storage Temperature -20 Degree Celsius
Max Storage Temperature 65 Degree Celsius

Service&Support
Service & Support Type Enhanced Limited Lifetime Hardware Warranty

Interfaces / Ports
Interfaces 48x 1/10/25 Gigabit Ethernet ports + 4x 40/100 Gigabit Ethernet uplink ports, USB, RJ45, USB-mini type B

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18.0 Inch
Height 1.73 Inch
Weight 9.96 Kg

UNSPSC Code
UNSPSC Code 43222612
