Cisco Catalyst 9500 48x10G Switch K12, C9500-48Y4C-EDU

VENDOR: CISCO Mfg Part#: C9500-48Y4C-EDU UPC#: 889728146586

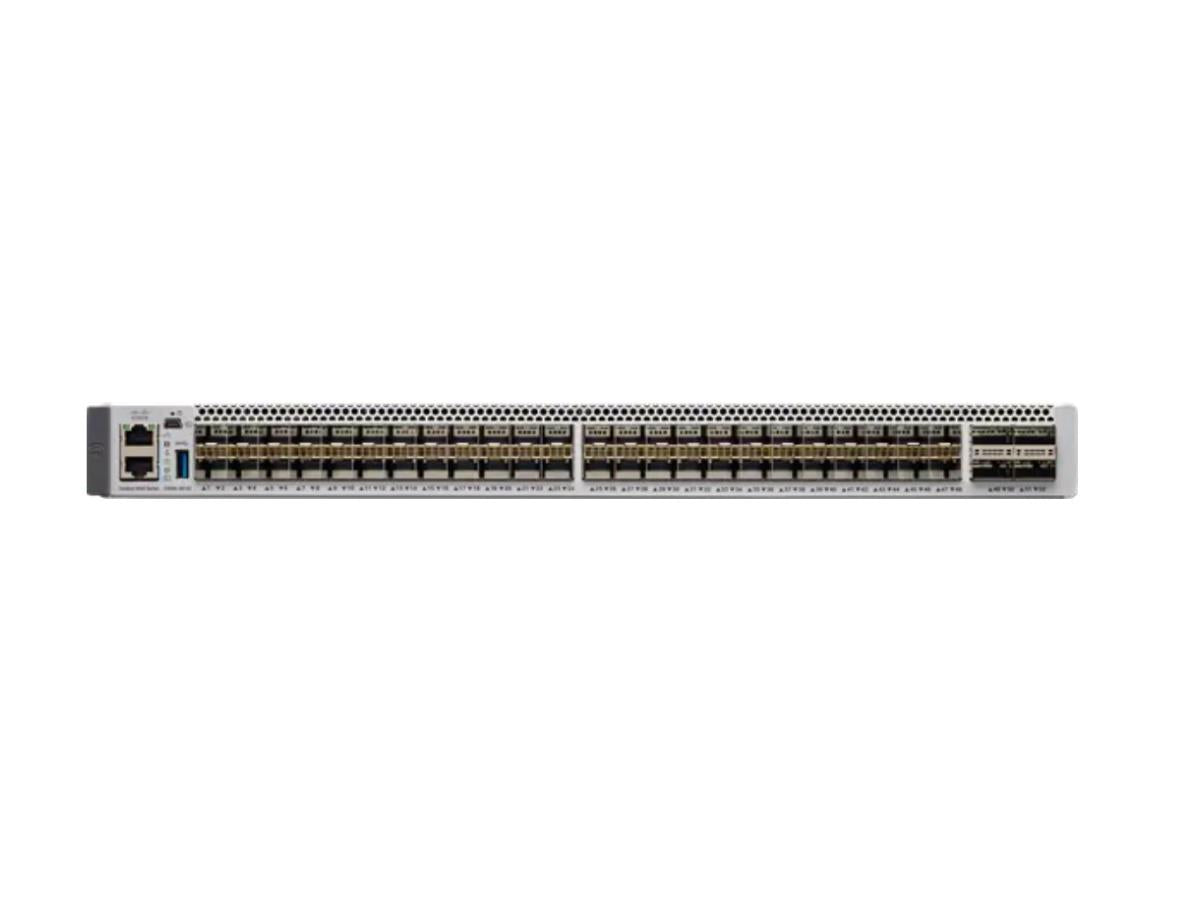

  • The Cisco Catalyst 9500 48x10G K12 (C9500-48Y4C-EDU) is a high-performance, rack-mountable Layer 3 switch tailored for academic environments. Engineered with advanced capabilities such as full Layer 3 routing, MACsec encryption support, and up to 3.2 Tbps switching capacity, it delivers secure and scalable core networking for enterprise and campus networks. This model includes 48x25G SFP28 ports and 4x100G uplink ports, offering exceptional flexibility and bandwidth.
1 1

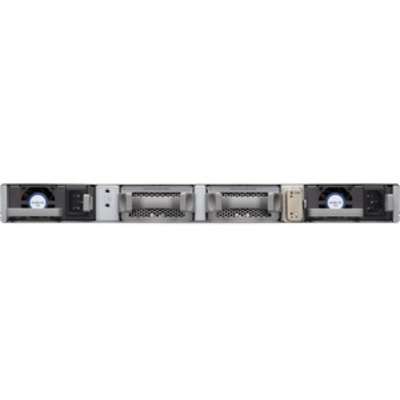

Photo is for illustration purposes only. Actual product may be different.
$26,004.01
$26,004.01
Sale Sold out
MSRP: $37,824.02
Shipping calculated at checkout.
  • 48 x 25 Gigabit SFP28 interfaces and 4 x 100G uplinks
  • Switching capacity of 3.2 Tbps and forwarding rate of 1 Bpps
  • Supports advanced L3 routing: OSPF, BGP, EIGRP, MPLS, VRRP
  • MAC Address Table: 64K entries; Jumbo Frame Support up to 9198 bytes
  • Integrated MACsec encryption, VLAN support, and secure management via SNMP, TFTP, NETCONF
  • Redundant power support (1+1), internal hot-plug PSU with 650W capacity
View full details

Key Benefits

Eye-Insights
  • Designed for high-density enterprise and education environments with Academic pricing model
  • Comprehensive Layer 3 and MPLS features ensure scalable and secure network backbone
  • Long operational lifespan (MTBF: 316,960 hours) and limited lifetime warranty provide excellent ROI

Product Overview

The Cisco Catalyst 9500 C9500-48Y4C-EDU is a rack-mountable Layer 3 managed switch designed for enterprise and educational networks. It features 48 x 25-Gb SFP28 ports and 4 x 100-Gb uplinks, offering extensive scalability with a 3.2 Tbps switching capacity. This platform supports comprehensive routing protocols and security enhancements such as MACsec and ACLs. Key management is delivered via SNMP, NETCONF, and RESTCONF, with system stability backed by power redundancy and 16 GB memory resources. Built for durability and advanced networking, it provides ideal ROI for high-bandwidth environments.

Specifications

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature 0 degree celsius
Max Operating Temperature 40 degree celsius
Min Storage Temperature -20 degree celsius
Max Storage Temperature 65 degree celsius

Primary Information
Features Automated device provisioning; API-driven configuration; Seamless software upgrades and patching
Network Device Type Switch
Model C9500-48Y4C
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty 56
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w,IEEE 802.1x
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
Uplink Port 4x 40/100G Uplink
Power / Voltage Required 90 to 264 VAC
MTBF 316960 hours

Interfaces / Ports
Interfaces 48x 1/10/25G Gigabit Ethernet + 4x 40/100G Uplink, RJ45, USB-mini type B

Service&Support
Service & Support Type Enhanced Limited Lifetime Hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size Up to 82000
Jumbo Frame Support 9216 bytes
Remote Management Protocol IPv4; IPv6; VLAN
Routing Protocol RIPv2, RIPng, OSPFv2
Encryption Algorithm MACsec
Interfaces 48x 1/10/25G Gigabit Ethernet + 4x 40/100G Uplink, RJ45, USB-mini type B

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18.0 Inch
Height 1.73 Inch
