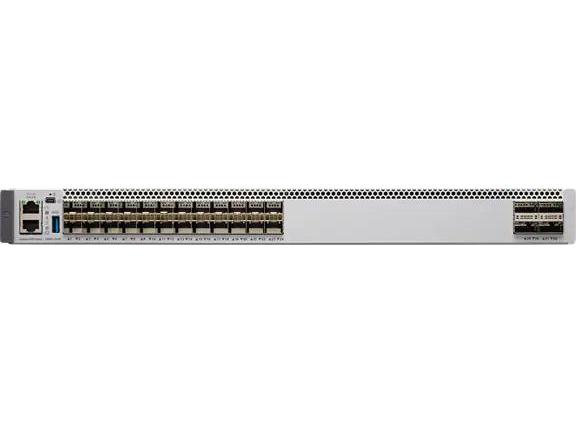

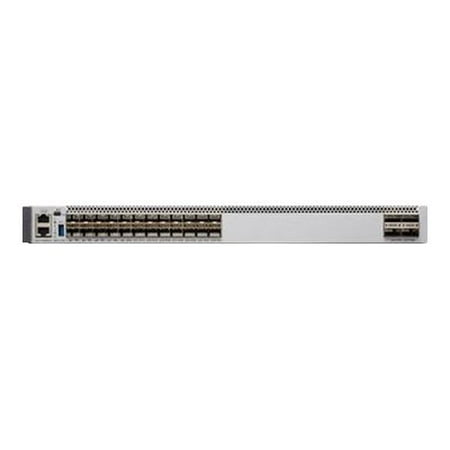

Cisco Catalyst 9500 C9500-24Y4C-A 24-Port 25G Switch With 4x100G Uplink

VENDOR: CISCO Mfg Part#: C9500-24Y4C-A UPC#: 889728142618
  • The Cisco Catalyst 9500 Series C9500-24Y4C-A is a next-generation enterprise-class switch designed for access and aggregation layers in large campus networks. Engineered in a compact 1RU form factor, it combines high-performance capabilities with enhanced security through MACsec encryption and enterprise-grade reliability. This device supports 1/10/25G Ethernet ports plus 4x100G uplinks, and includes 16GB of RAM, 16GB of flash memory, and a robust management feature set.
1 1
Photo is for illustration purposes only. Actual product may be different.
$21,204.72
$21,204.72
Sale Sold out
MSRP: $30,843.22
Shipping calculated at checkout.
  • 24 x 1/10/25G Ethernet ports and 4 x 40/100G uplink ports for high-performance switching
  • 1RU form factor ideal for dense enterprise network deployments
  • MACsec encryption for secure hardware-level data protection
  • Supports Layer 2 and Layer 3 protocols including RIPv2, OSPFv2, and EIGRP
  • 16GB RAM and 16GB flash memory ensuring fast operation and storage
  • Compliance with IEEE 802.1s/w/x and jumbo frame support up to 9216 bytes
View full details

Key Benefits

Eye-Insights
  • Offers enterprise-grade performance with multi-speed port flexibility (1/10/25/40/100G)
  • Designed for secure, scalable, and efficient campus network aggregation
  • Enhanced Limited Lifetime Hardware Warranty adds long-term value and investment protection

Product Overview

The Cisco Catalyst 9500 Series C9500-24Y4C-A is a high-performance, fixed-core Layer 2 and Layer 3 switch designed for enterprise campus environments. With 24 ports supporting 1/10/25Gbps speeds and 4 uplink ports capable of 40/100Gbps connectivity, this wired switch delivers exceptional throughput and scale. The unit is built in a 1RU form factor, making it suitable for dense data center or aggregation layer deployment. It supports advanced routing protocols such as RIPv2, OSPFv2, and EIGRP, ensuring flexible and scalable network design options across IPv4 and IPv6 infrastructures. Integrated MACsec encryption ensures comprehensive data security at the hardware level, while VLAN support enables precise network segmentation and traffic management.

The switch's hardware features include 16GB RAM and 16GB of flash memory, ensuring efficient performance, fast configuration, and firmware updates. It supports large MAC address tables with up to 82,000 addresses and jumbo frames up to 9216 bytes for more efficient large-packet transfers. The device complies with IEEE 802.1s, 802.1w, and 802.1x standards, enabling rapid spanning tree convergence and port-based access control. Additionally, it includes both RJ45 and USB-mini type B interfaces for versatile connectivity and management. With a wide operating temperature range and TAA compliance, it is also suited for government and enterprise applications. The switch includes an enhanced limited lifetime hardware warranty, further bolstering its value and long-term reliability.

Specifications

Primary Information
Network Device Type Switch
Data Transfer Rate 100 Gbps
Networking / Ports Qty 32
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 16 GB
Model C9500-24Y4C
Form Factor 1RU
Connectivity Technology Wired
Networking Compliant Standards 802.1s, 802.1w, 802.1x
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
Uplink Port 4
Power / Voltage Required 90 to 264 VAC
MTBF 336780 hours

Network
Interfaces 1/10/25G Gigabit Ethernet, 40/100G Uplink, RJ45, USB-mini type B
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size Up to 82000
Jumbo Frame Support 9216 bytes
Remote Management Protocol IPv4; IPv6; VLAN
Routing Protocol RIPv2, OSPFv2, EIGRP
Encryption Algorithm MACsec

Special Feature
COO BRAZIL / CHINA / MEXICO / THAILAND
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 65 Celsius

Service&Support
Service & Support Type Enhanced Limited Lifetime Hardware Warranty

Interfaces / Ports
Interfaces 1/10/25G Gigabit Ethernet, 40/100G Uplink, RJ45, USB-mini type B

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18 Inch
Height 1.73 Inch
Weight 21 lbs.

UNSPSC Code
UNSPSC Code 43222612
