Cisco Catalyst 9500 C9500-24Y4C-CX 24-Port 1/10/25G & 4-Port 40/100G Switch

VENDOR: CISCO Mfg Part#: C9500-24Y4C-CX

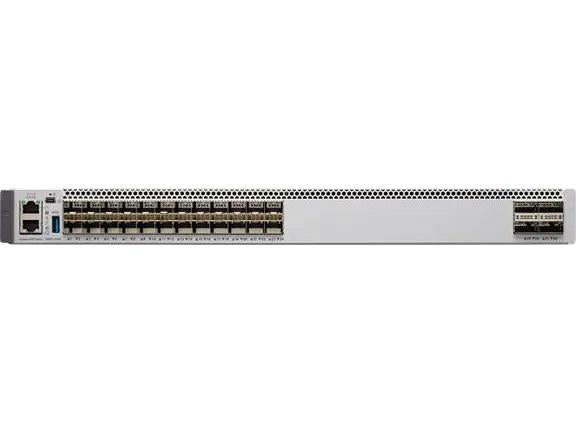

  • The Cisco Catalyst 9500 C9500-24Y4C-CX is a high-performance 1RU switch designed for core and aggregation layer deployments. Featuring 24 flexible 1/10/25G ports and 4 high-speed 40/100G uplinks, it delivers advanced Layer 2/3 capabilities and high data throughput. With compliance to 802.1x, RIPv2, and support for jumbo frames, it's engineered for secure, reliable, and scalable networking environments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$19,439.33
$19,439.33
Sale Sold out
MSRP: $28,275.39
Shipping calculated at checkout.
  • 24x 1/10/25G Ethernet ports and 4x 40/100G uplink ports
  • 16GB RAM and 16GB Flash memory for optimal performance
  • Support for Layer 2 and Layer 3 network architectures
  • MAC address table capacity up to 82,000 entries
  • Advanced routing protocols: RIPv2, OSPFv2, and EIGRP
  • AES 256-bit encryption algorithm and jumbo frame support up to 9216 bytes
View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise core and aggregation layers requiring high-speed port density
  • Complies with major networking standards (802.1s, 802.1w, 802.1x) and includes TAA compliance for government procurement
  • Backed by an enhanced limited lifetime warranty and an MTBF rating of over 336,000 hours for high availability

Product Overview

The Cisco Catalyst 9500 C9500-24Y4C-CX switch is specifically designed for enterprise campus core and aggregation layer networks. It integrates 24 ports capable of 1/10/25G Ethernet connectivity along with 4 uplink ports supporting 40/100G, enabling scalable network infrastructure with high throughput. The switch supports advanced routing protocols, including RIPv2, OSPFv2, and EIGRP, as well as robust Layer 2 and Layer 3 media handling, ideal for complex and dynamic enterprise environments.

With 16GB RAM and 16GB Flash storage, this 1RU switch offers strong performance and efficient management capabilities. The inclusion of AES 256-bit encryption ensures data security, while VLAN and IPv4/IPv6 remote management protocols add operational flexibility. The MAC address table supports up to 82,000 entries, and with jumbo frame support (up to 9216 bytes), this device is optimized for high-volume traffic situations such as virtualization or storage networking. With a mean time between failures (MTBF) of 336,780 hours, TAA compliance, and an enhanced limited lifetime warranty, it ensures long-term reliability in mission-critical infrastructures.

Specifications

Primary Information
Model C9500-24Y4C
RAM / Total Installed Size 16 GB
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
Network Device Type Switch
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty 32
Flash Memory / Installed Size 16 GB
Networking Compliant Standards 802.1s, 802.1w, 802.1x
Media Layer Supported Layer 2, Layer 3
Uplink Port 4
Power / Voltage Required 90 to 264 VAC
MTBF 336780 hours

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 65 Celsius

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size Up to 82000
Jumbo Frame Support 9216 bytes
Remote Management Protocol IPv4; IPv6; VLAN
Routing Protocol RIPv2, OSPFv2, EIGRP
Encryption Algorithm AES (256-bit)
Interfaces 1/10/25G Gigabit Ethernet;40/100G Uplink;RJ45;USB-mini type B

Service&Support
Service & Support Type Enhanced Limited Lifetime Hardware Warranty

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18 Inch
Height 1.73 Inch
Weight 9.96 Kg

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 1/10/25G Gigabit Ethernet;40/100G Uplink;RJ45;USB-mini type B
