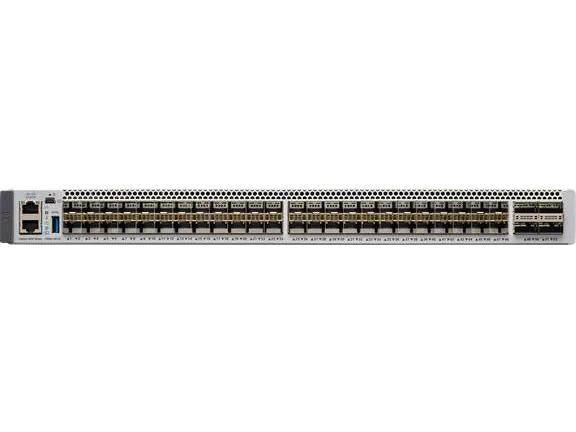

Cisco Catalyst 9500 C9500-48Y4C-CX 48-Port 1/10/25G Switch

VENDOR: CISCO Mfg Part#: C9500-48Y4C-CX
  • The Cisco Catalyst 9500 Series C9500-48Y4C-CX switch delivers high-performance, enterprise-class Layer 2 and Layer 3 switching for core and aggregation networks. With 48 ports of multigigabit 1/10/25G and 4 uplinks at 40/100G, it enables scalable, high-speed connectivity for data-intensive environments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$19,688.39
$19,688.39
Sale Sold out
MSRP: $28,637.65
Shipping calculated at checkout.
  • 48-port 1/10/25G and 4-port 40/100G wired switch supporting high-speed connectivity
  • Layer 2 and Layer 3 capable with routing protocols RIPv2, RIPng, OSPFv2
  • MACsec encryption support ensures secure data transmission
  • Supports jumbo frames up to 9216 bytes and 82,000 MAC address entries
  • Includes 16 GB RAM and 16 GB flash memory for reliable performance
  • TAA compliant, with an MTBF of 316,960 hours for industrial reliability
View full details

Key Benefits

Eye-Insights
  • Delivers exceptional port density and uplink flexibility with 48 multigigabit and 4 high-speed ports
  • Advanced routing features and secure encryption make it suitable for enterprise core deployments
  • Long operational lifespan and limited lifetime support reduce total cost of ownership

Product Overview

The Cisco Catalyst 9500 C9500-48Y4C-CX is a fixed core and aggregation switch designed for next-gen enterprise networks. It features 48 1/10/25G ports and 4 40/100G uplinks, with support for Layer 2 and Layer 3 switching. With an MTBF of 316,960 hours, 16 GB RAM, jumbo frames up to 9216 bytes, and advanced protocols (RIP, OSPFv2, MACsec), it's ideal for secure high-traffic network environments. The 1RU switch provides robust management features and meets TAA compliance standards.

Specifications

Primary Information
Model C9500-48Y4C
RAM / Total Installed Size 16 GB
Power / Device Type Power Supply
Network Device Type Switch
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty 56
Data Link Protocol Gigabit Ethernet
Flash Memory / Installed Size 16 GB
Networking Compliant Standards 802.1s, 802.1w, 802.1x
Media Layer Supported Layer 2, Layer 3
Uplink Port 4
Power / Voltage Required 90 to 264 VAC
MTBF 316960 hours

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 1/10/25G Gigabit Ethernet;40/100G Uplink;RJ45;USB-mini type B

Service&Support
Service & Support Type Enhanced Limited Lifetime Hardware Warranty

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 65 Celsius

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size Up to 82000
Jumbo Frame Support 9216 bytes
Remote Management Protocol IPv4; VLAN; IPv6
Routing Protocol RIPv2, RIPng, OSPFv2
Encryption Algorithm MACsec
Interfaces 1/10/25G Gigabit Ethernet;40/100G Uplink;RJ45;USB-mini type B

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18.0 Inch
Height 1.73 Inch
