Cisco Catalyst 9500X 60x25/50G + 4x400G Switch, 1RU, C9500X-60L4D-CX

VENDOR: CISCO Mfg Part#: C9500X-60L4D-CX
1 3

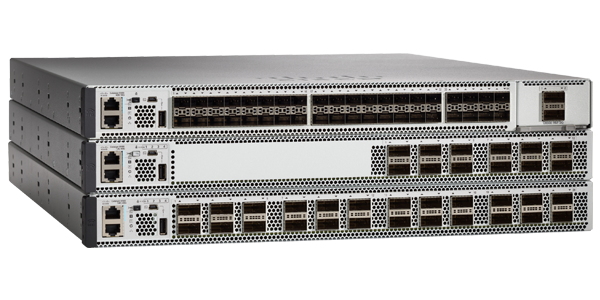

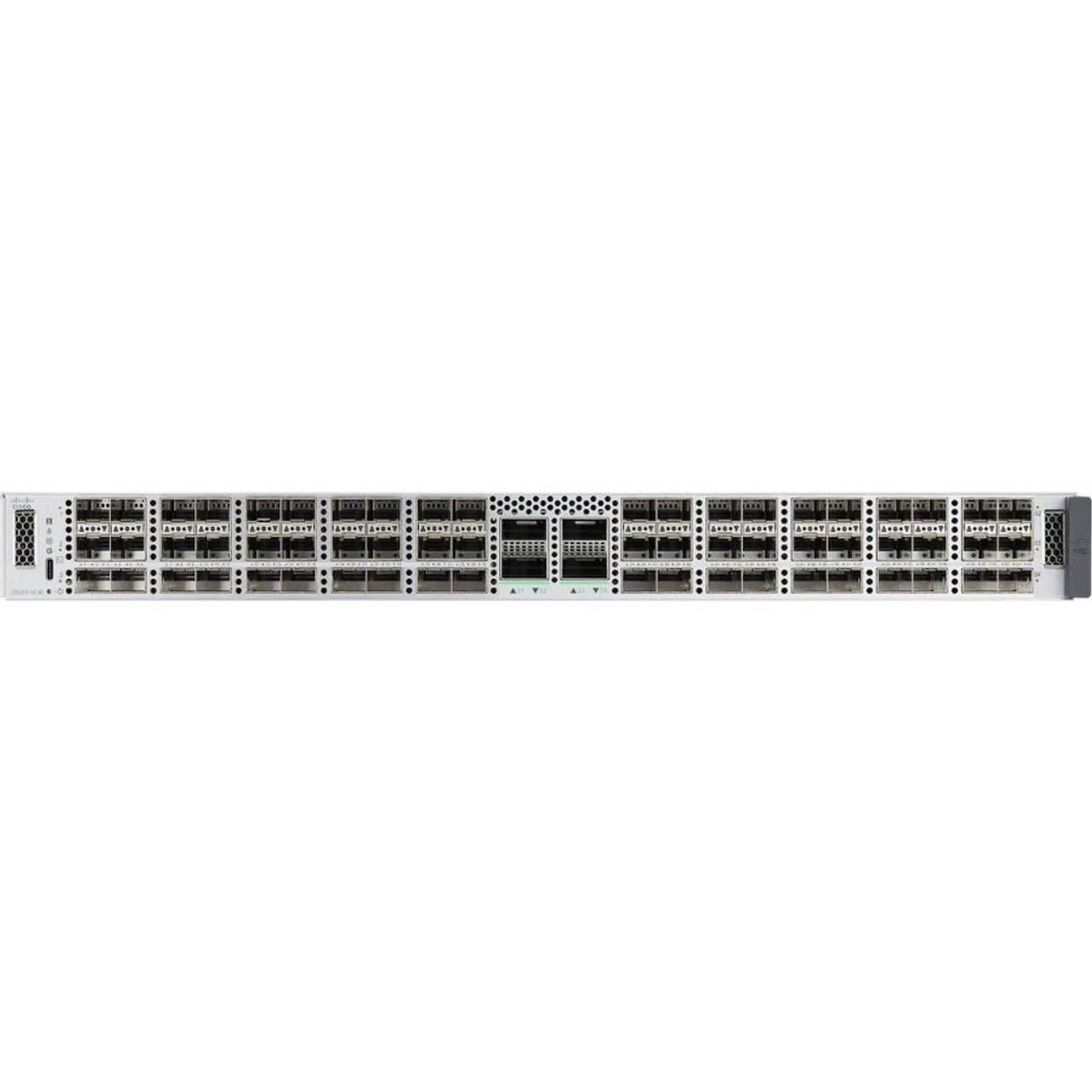

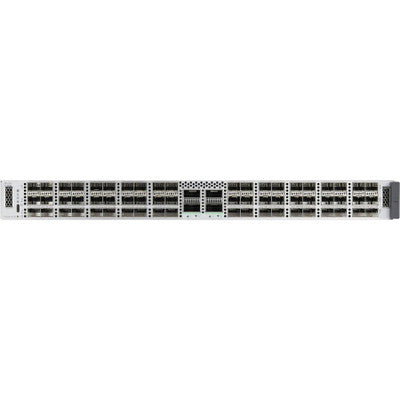

Photo is for illustration purposes only. Actual product may be different.
$22,390.63
$22,390.63
Sale Sold out
MSRP: $67,571.18
Shipping calculated at checkout.
  • 65 total networking ports including 60x 10/25/50G and 4x 40/100/200/400G interfaces
  • Cisco Silicon One Q200 ASIC enabling up to 12.8 Tbps duplex and 8 Bpps forwarding
  • 32GB RAM and 32GB flash memory for advanced networking applications
  • Full support for Layer 2 and Layer 3 routing protocols including OSPF and EIGRP
  • Enhanced Limited Lifetime Hardware Warranty with 133,260-hour MTBF
  • Supports 9216-byte jumbo frames and AES encryption for secure, high-throughput data flows

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers superior port density and speed flexibility with 65 multispeed Ethernet ports for high-performance scalability.
  • Delivers enterprise-grade switching performance with Cisco Q200 ASIC architecture providing 12.8 Tbps throughput.
  • Long life expectancy and warranty coverage support enterprise TCO with 133,260-hour MTBF and enhanced lifetime warranty.

Product Overview

The Cisco Catalyst 9500X C9500X-60L4D-CX is a high-performance enterprise-class switch tailored for organizations demanding dense, scalable connectivity and next-generation throughput. Housed in a compact 1RU chassis, this switch features 60 multispeed 10/25/50G Ethernet ports and 4 ultra-high-speed 40/100/200/400G uplink ports—bringing the port count to 65 for extensive connectivity in data-intensive environments.

Powered by the Cisco Silicon One Q200 ASIC, the platform supports 12.8 Tbps throughput and 8 Bpps packet forwarding, ensuring unmatched performance for core and edge networking. It includes Layer 2/3 capabilities, advanced routing protocols, extensive remote management (SNMP, DHCP, IPv6), and strong hardware specs with 32GB RAM + 32GB flash.

Additional features include jumbo frame support (9216 bytes), AES encryption, and compliance with key standards (802.1x, 802.1p/w/s). Backed by a 133,260-hour MTBF and Enhanced Limited Lifetime Warranty, it's designed for reliable, long-term operation in enterprise environments.

Specifications

Product Overview
Product Type Enterprise-Class Switch
Model C9500X-60L4D-CX
Series Catalyst 9500X
Form Factor 1RU
Processor Type Octa-Core
ASIC Cisco Silicon One Q200
Switching Capacity 12.8 Tbps
Forwarding Rate 8 Bpps
RAM Capacity 32 GB
Flash Memory Capacity 32 GB
Power Supply Type Internal Power Supply
Power Consumption 1500 Watt
Weight

Physical & Environmental
Width 17.5 in (44.45 cm)
Depth 21.8 in (55.37 cm)
Height 1.73 in (4.4 cm)
Minimum Operating Temperature -5 °C
Maximum Operating Temperature 45 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C
MTBF 133,260 hours
Relative Humidity (Operating)
Relative Humidity (Storage)

Cloud Management & Licensing
Management Interface SNMP, DHCP, IPv6
Routing Protocols Supported EIGRPv6, IPv4, IPv6, EIGRP, OSPFv2, OSPFv3
Licensing Cisco DNA licensing required (Essentials, Advantage, Premier)
Included Cloud Features

Interfaces
Total Number of Ports 65
Downlink Ports 60 x 10/25/50G Ethernet
Uplink Ports 4 x 40/100/200/400G Ethernet
Management Port 1 x USB
Data Transfer Rate 400 Gbps per port max (uplink)
Supported Protocols Gigabit Ethernet, 10G/25G/50G/100G/400G
MAC Address Table Size 256,000 entries
Jumbo Frame Support 9216 bytes
Media Layers Supported Layer 2 and Layer 3

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliance Standards IEEE 802.1D, 802.1p, 802.1s, 802.1w, 802.1x
Certifications

Advanced Security Features
Encryption Algorithms AES
Network Access Control 802.1x authentication
Integrated Security Features
Firewall Capabilities
Malware Protection
Intrusion Detection/Prevention
