Cisco Catalyst 9600 56-Port 50G & 4-Port 100G Line Card

VENDOR: CISCO Mfg Part#: C9600X-LC-56YL4C=
1 3
Photo is for illustration purposes only. Actual product may be different.
$27,409.09
$27,409.09
Sale Sold out
MSRP: $40,200.00
Shipping calculated at checkout.
  • 56-port 50/25/10GE SFP56 and 4-port 100GE QSFP28 support
  • Data transfer rate up to 100 Gbps for high-performance networking
  • Supports AES 256-bit encryption for secure data transmission
  • Standards-compliant with IEEE 802.3z, 802.3x, and 802.3ab
  • IPv6 remote management capability
  • Compact 1U form factor with dimensions of 15 x 13.41 x 1.7 inches

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-density, multi-speed connectivity making it ideal for scalable enterprise networks
  • Complies with TAA standards, making it suitable for government and regulated sectors
  • Integration-ready with the Cisco Catalyst 9600 Series core platform for seamless deployment

Product Overview

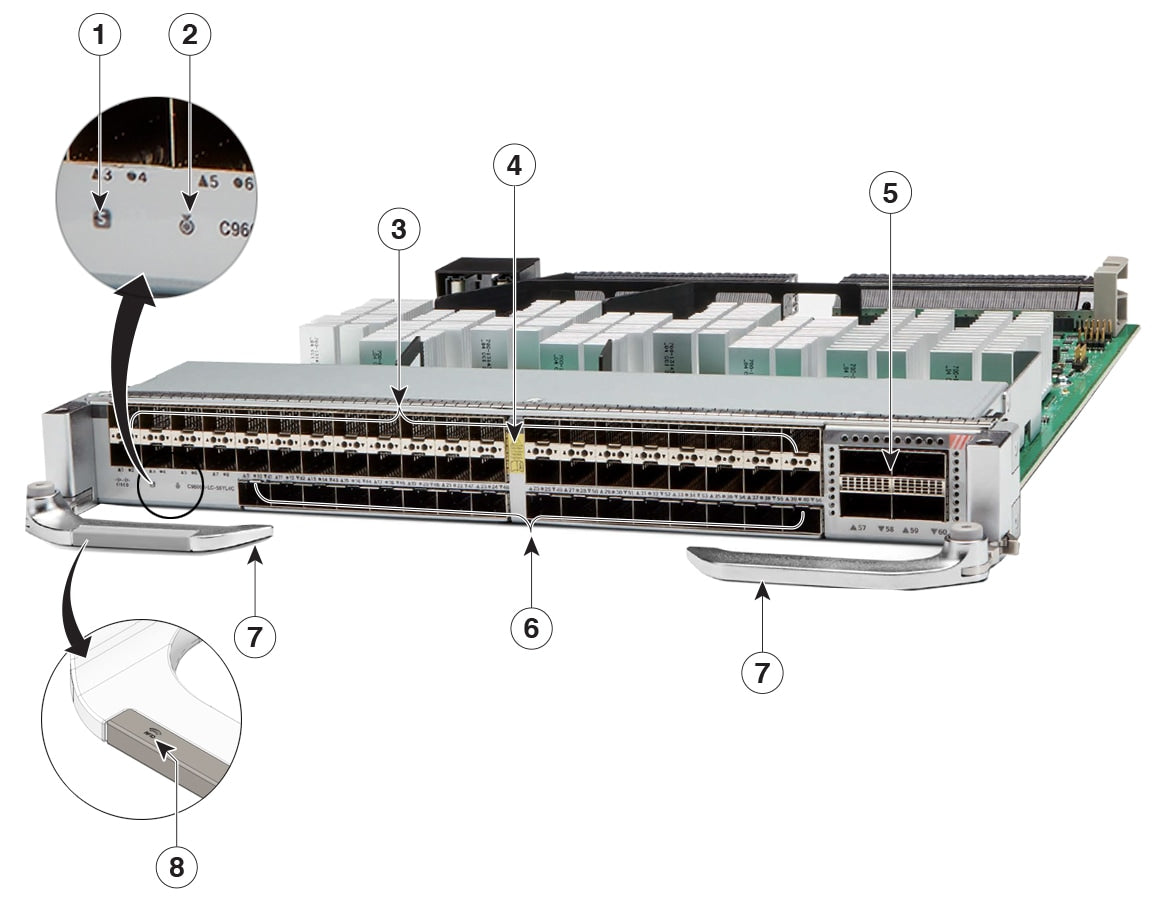

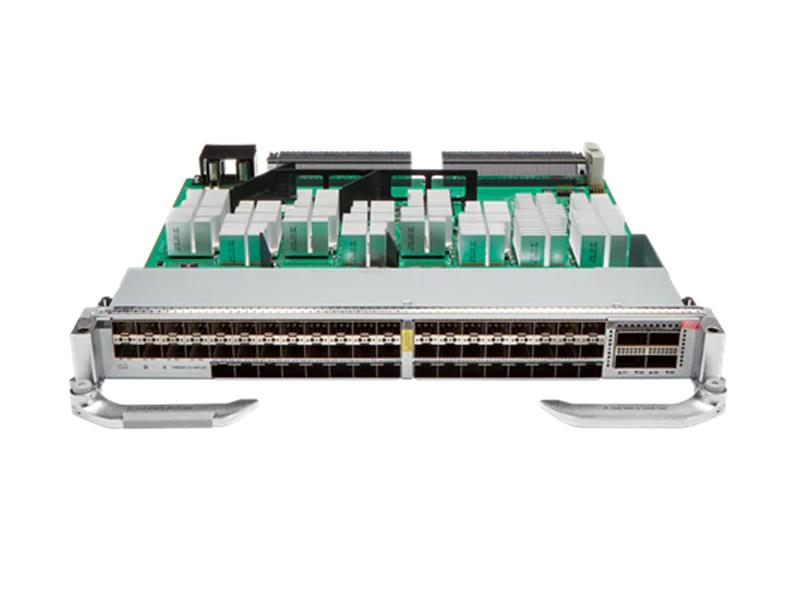

The Cisco Catalyst 9600 Series Line Card (C9600X-LC-56YL4C=) is a high-density, high-speed solution designed for enterprise campus core networks. Featuring 56 50G ports and 4 100G QSFP28 ports, it enables scalable and flexible connectivity. With AES 256-bit encryption, IPv6 remote management, and support for industry-standard protocols like IEEE 802.3z and 802.3ab, the card ensures secure and standards-based performance. Its 1U form factor allows efficient data center integration while meeting TAA compliance for regulated markets.

Specifications

Product Overview
Product Type Line Card
Form Factor 1U
Weight 9.8 lbs (4.45 kg)
Power Requirements Up to 380W (typical), 450W (maximum)
For Use With Cisco Catalyst 9600 Series

Wireless Features

Compliance & Origin
Country of Origin CHINA
TAA Compliance Yes
Certifications UL, CSA, CE Mark, RoHS, REACH, WEEE
Networking Compliant Standards IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab

Advanced Security Features
Encryption Algorithm AES (256-bit)
Remote Management Protocol IPv6
Access Control 802.1X, RADIUS, TACACS+
Secure Boot Yes
MACsec Encryption Yes
Control Plane Protection (CoPP) Yes
TrustSec Support Yes
Traffic Filtering Yes (ACLs and policy maps)

Interfaces

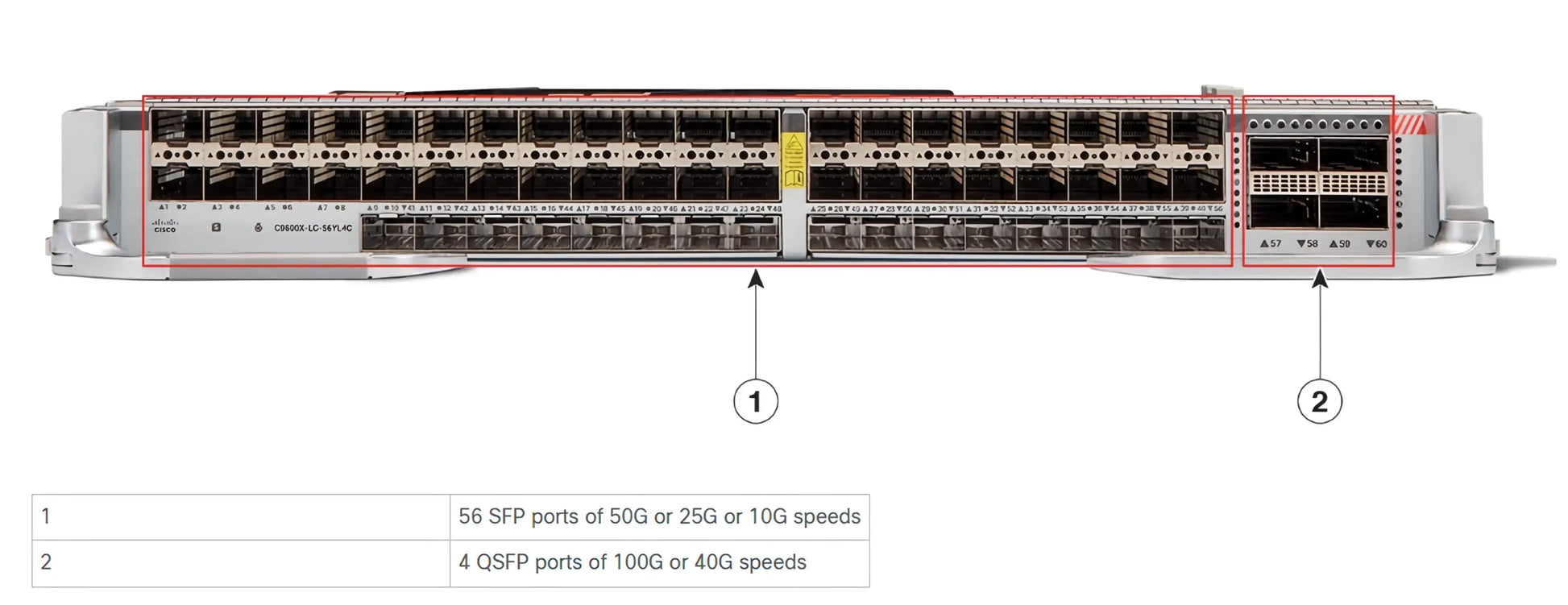

Port Count 56 x 50G SFP56, 4 x 100G QSFP28
Interface Types SFP56, QSFP28
Data Transfer Rate 100 Gbps
Connectivity Technology Wired
Network / Interface Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 60
Interfaces & Connections 50/25/10GE SFP56, 100GE QSFP28 ports

Physical & Environmental
Width 15 Inch
Depth 13.41 Inch
Height 1.7 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Acoustic Noise Level Typical 63.3 dB, Maximum 75.6 dB
Mean Time Between Failures (MTBF) 556,070 hours

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, SNMP, WebUI
Licensing Model Cisco DNA Software Subscription
Included Software Features Cisco IOS XE, Layer 2/3 switching, QoS, MPLS, virtualization
