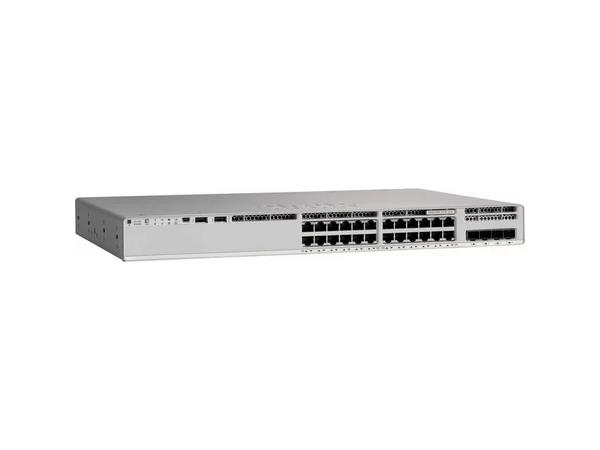

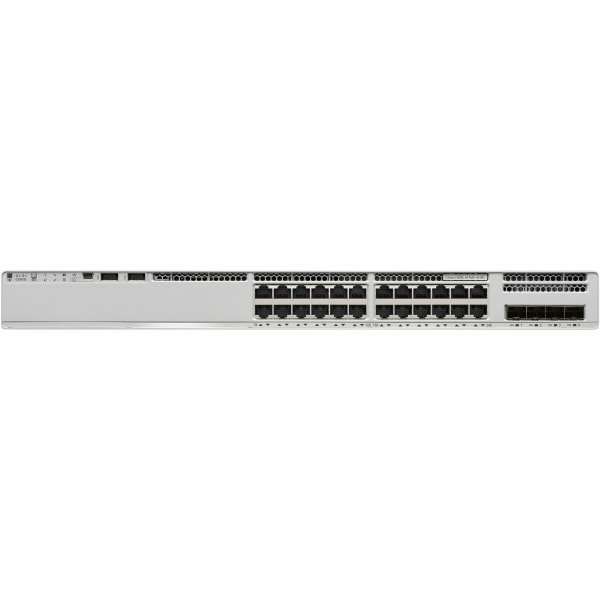

Cisco Catalyst C9200L-24P-4X-E 24-Port PoE+ 4x10G Switch

VENDOR: CISCO Mfg Part#: C9200L-24P-4X-E UPC#: 889728170178
  • The Cisco Catalyst C9200L-24P-4X-E is a high-performance enterprise-grade switch featuring 24 PoE+ ports and four 10G uplinks. Engineered for scalable, secure, and efficient networking, it supports advanced routing protocols such as RIP, OSPF, and IS-IS, making it ideal for midsize to large deployments. This switch also includes robust management features and an enhanced limited lifetime warranty.
1 1
Photo is for illustration purposes only. Actual product may be different.
$5,136.12
$5,136.12
Sale Sold out
Shipping calculated at checkout.
  • 24 full PoE+ ports for powering connected devices such as IP phones and access points
  • Four 1/10G fixed uplinks for high-speed interconnectivity
  • Layer 2 and Layer 3 support with RIP, OSPF, and IS-IS routing protocols
  • Supports jumbo frames up to 9198 bytes to handle large data packets
  • 2GB RAM and 4GB flash memory for robust performance and configuration storage
  • Comes with enhanced limited lifetime warranty and TAA compliance
View full details

Key Benefits

Eye-Insights
  • Enterprise-ready with 24 PoE+ ports and four 10G uplinks for superior scalability and power distribution capability
  • Advanced Layer 2/3 protocol support ensures flexible and secure network routing options
  • Outstanding reliability with MTBF of over 390,000 hours and included enhanced limited lifetime warranty

Product Overview

The Cisco Catalyst C9200L-24P-4X-E delivers enterprise-level Layer 2/3 switching with 24 full PoE+ ports and four 1/10G uplinks. Supporting advanced routing protocols (RIP, OSPF, IS-IS) and SNMP-based management, it’s ideal for scalable deployments requiring high throughput and reliability. Featuring jumbo frame support, 2GB RAM, 4GB flash memory, and a resilient design rated at a Mean Time Between Failures (MTBF) of over 390,000 hours, it ensures top-tier performance. Its TAA compliance, RoHS support, and enhanced limited lifetime warranty affirm its value and versatility for both commercial and government-grade networks.

Specifications

Primary Information
Network Device Type Switch
Model C9200L-24P-4X-E
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 2 GB
Flash Memory / Installed Size 4 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at
Media Layer Supported Layer 2 and Layer 3
Power / Device Type Power Supply
Uplink Port 4x10G uplink
Power / Provided (W) 600 Watt
Power / Voltage Required 100 to 240 VAC
MTBF 390310 hours
Features Cisco Software-Defined Access (SD-Access) Plug and Play (PnP) enabled Cisco IOS XE Cloud management ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 24-port PoE+ 4x10G uplink, Ethernet management port, Management console port

Service&Support
Service & Support Type Enhanced Limited Lifetime Warranty

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 degree celsius
Max Operating Temperature 45 degree celsius (1500m); 40 degree celsius (3000m)
Min Storage Temperature -40 degree celsius
Max Storage Temperature 70 degree celsius

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 370W
MAC Address Table Size 16000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; Syslog; RMON; SNMP
Routing Protocol OSPF, EIGRP, ISIS, RIP
Encryption Algorithm AES
Interfaces 24-port PoE+ 4x10G uplink, Ethernet management port, Management console port

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 11.3 Inch
Height 1.73 Inch
Weight 4.71 Kg
